Power Window Motor
>>
System Diagram
System Diagram

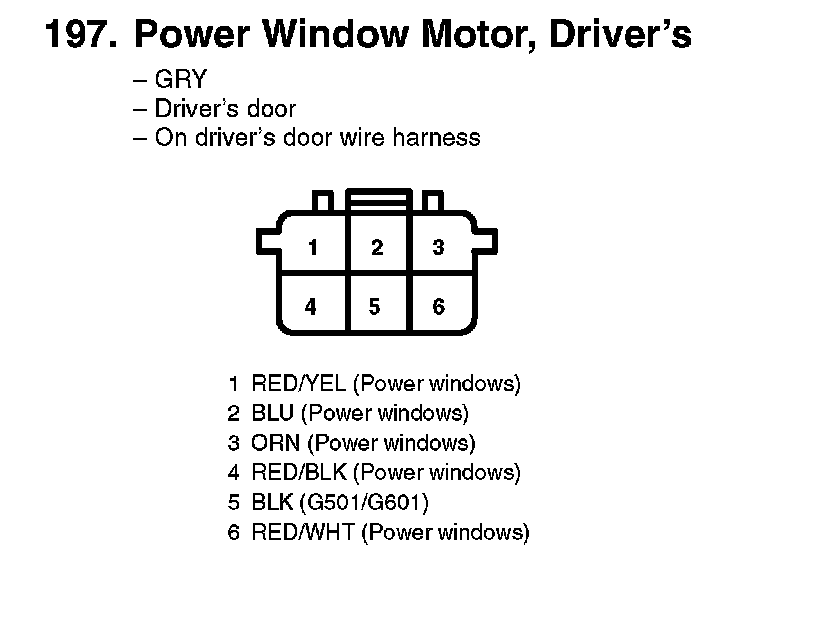

197. Power Window Motor, Driver's:
198. Power Window Motor, Front Passenger's:
199. Power Window Motor, Left Rear:

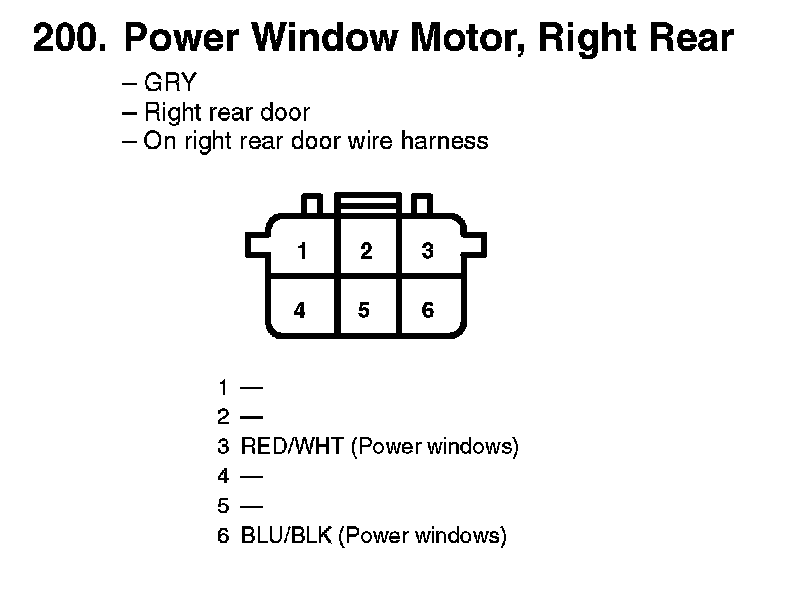

200. Power Window Motor, Right Rear:
