Speaker

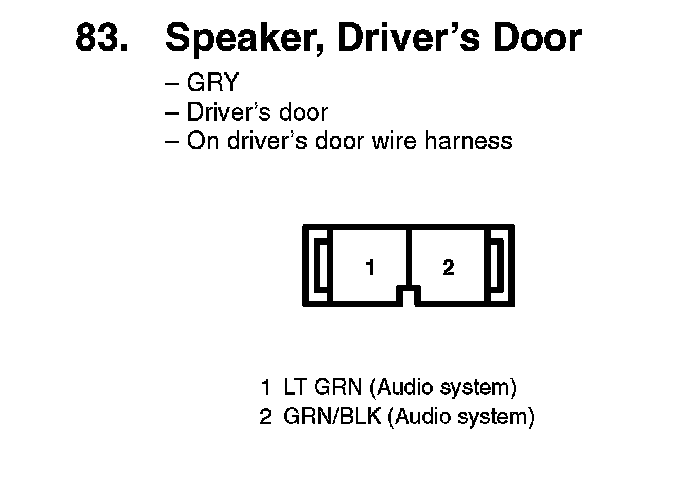

83. Speaker, Driver's Door:

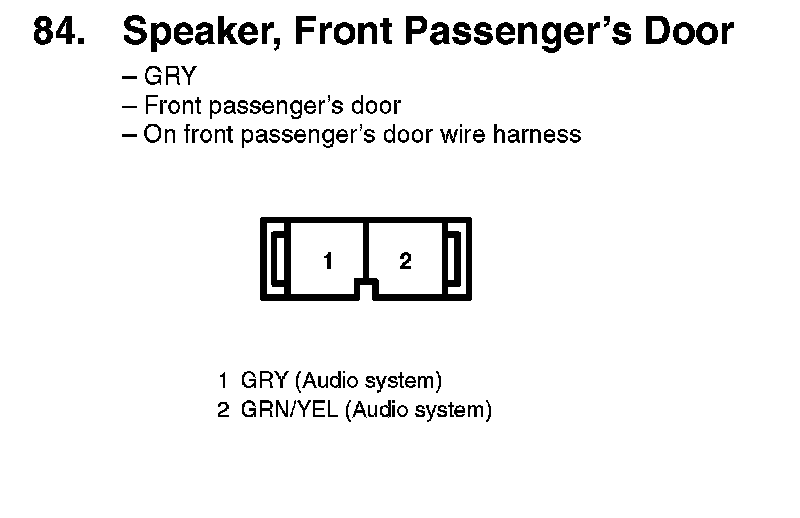

84. Speaker, Front Passenger's Door:

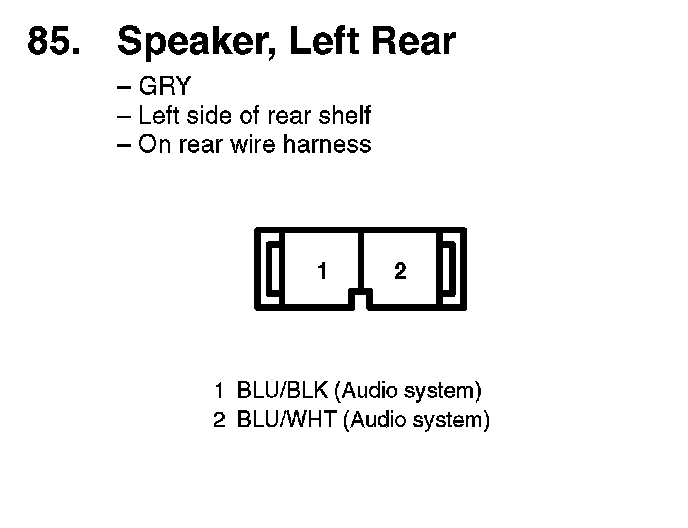

85. Speaker, Left Rear:

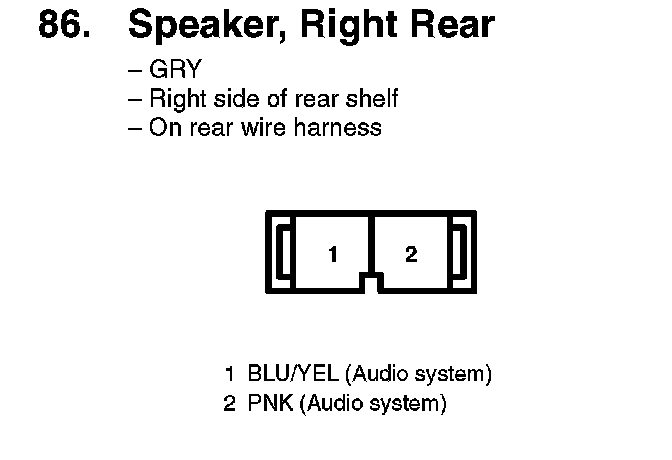

86. Speaker, Right Rear:

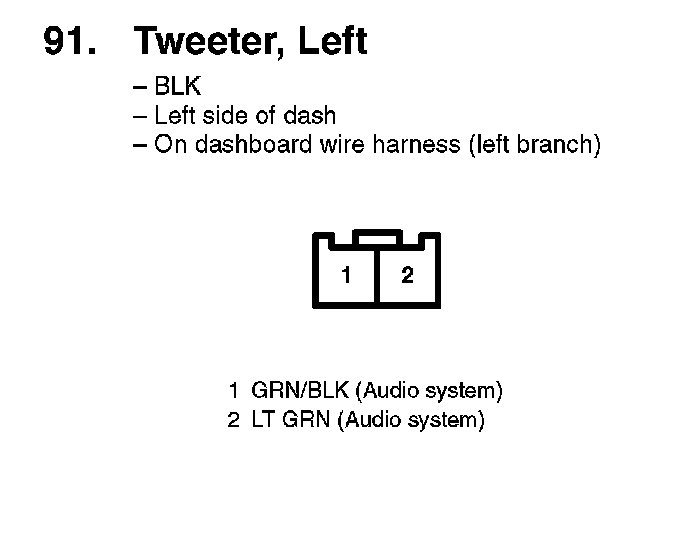

91. Tweeter, Left:
92. Tweeter, Right:
