System Diagram

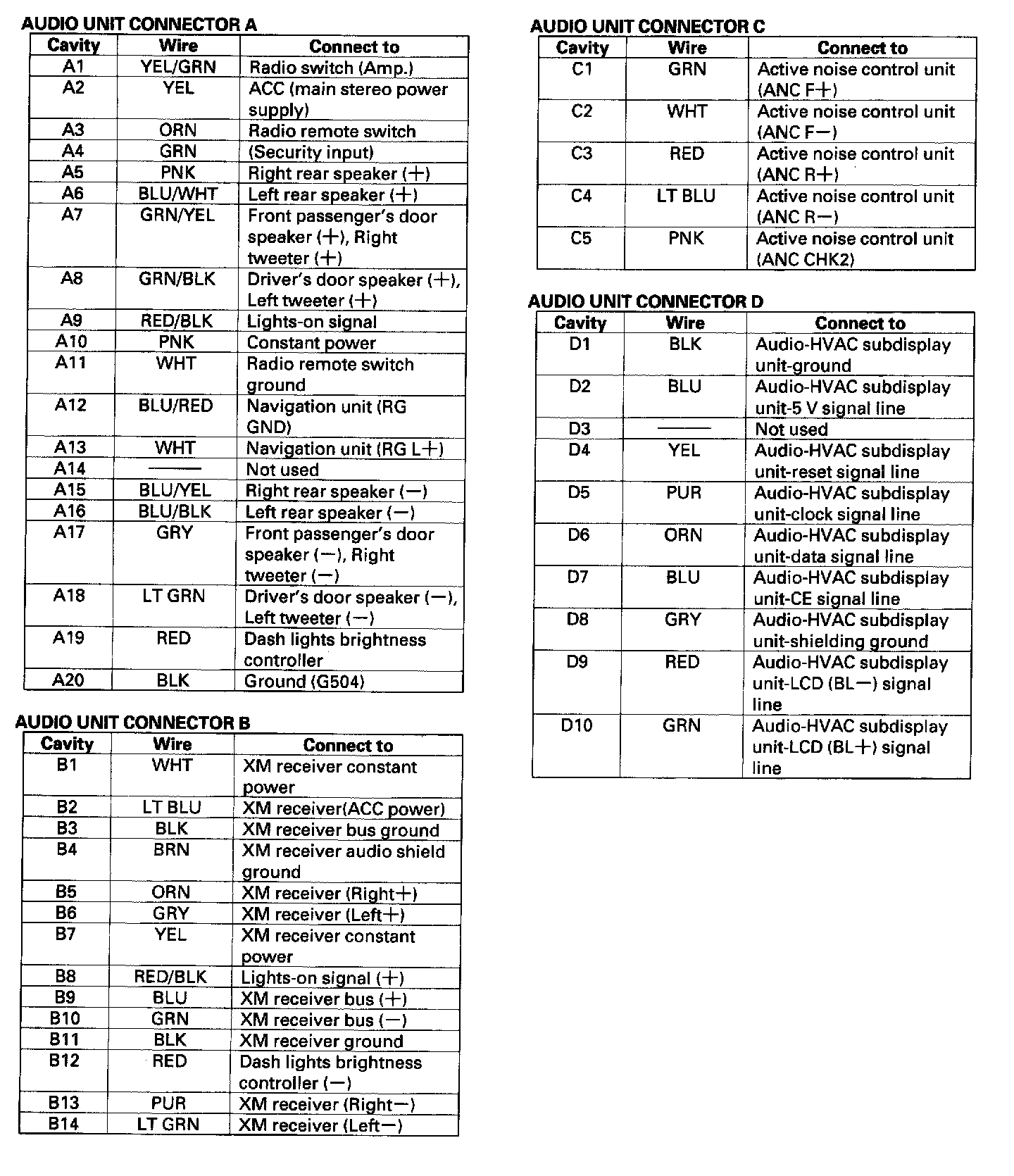

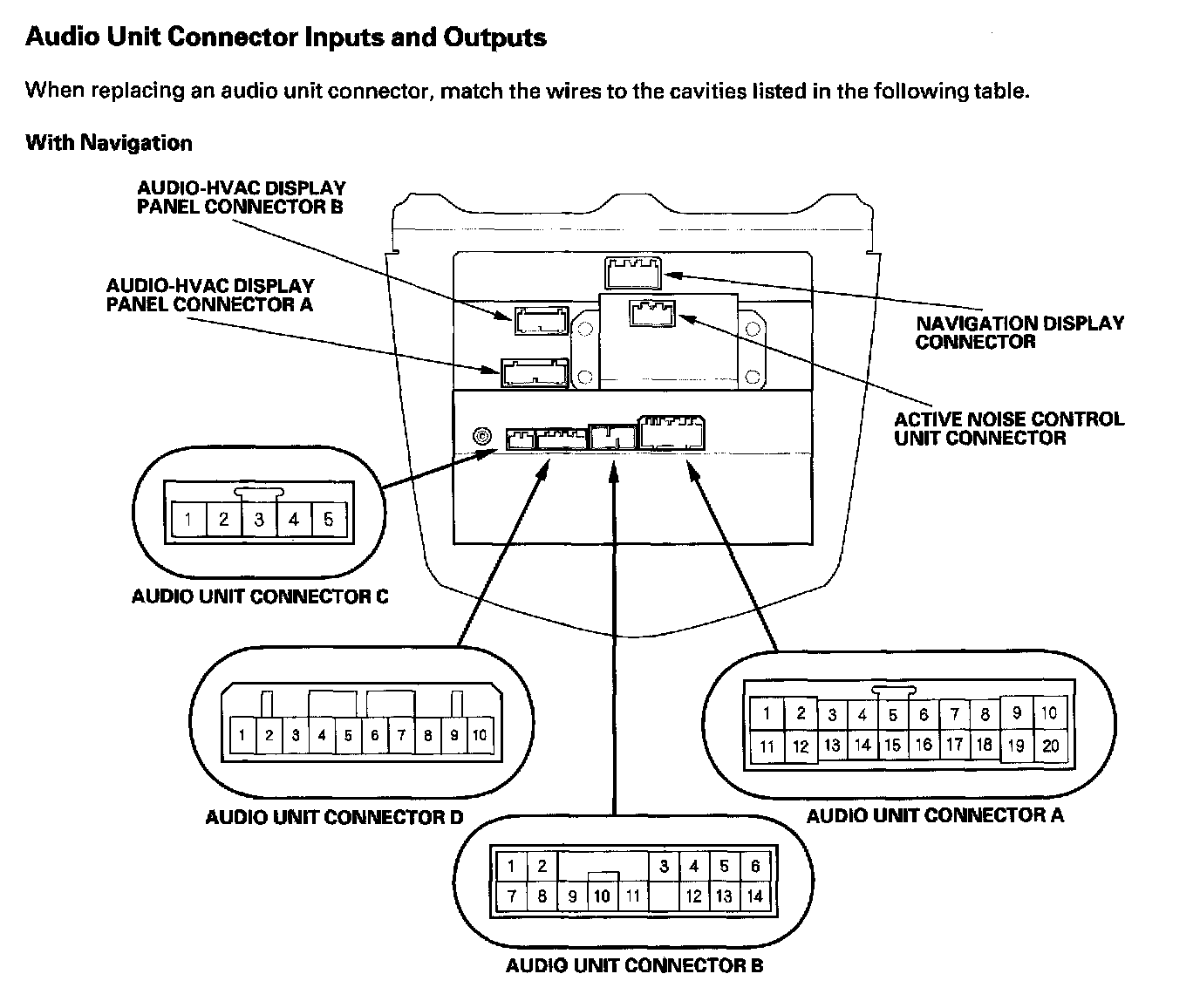

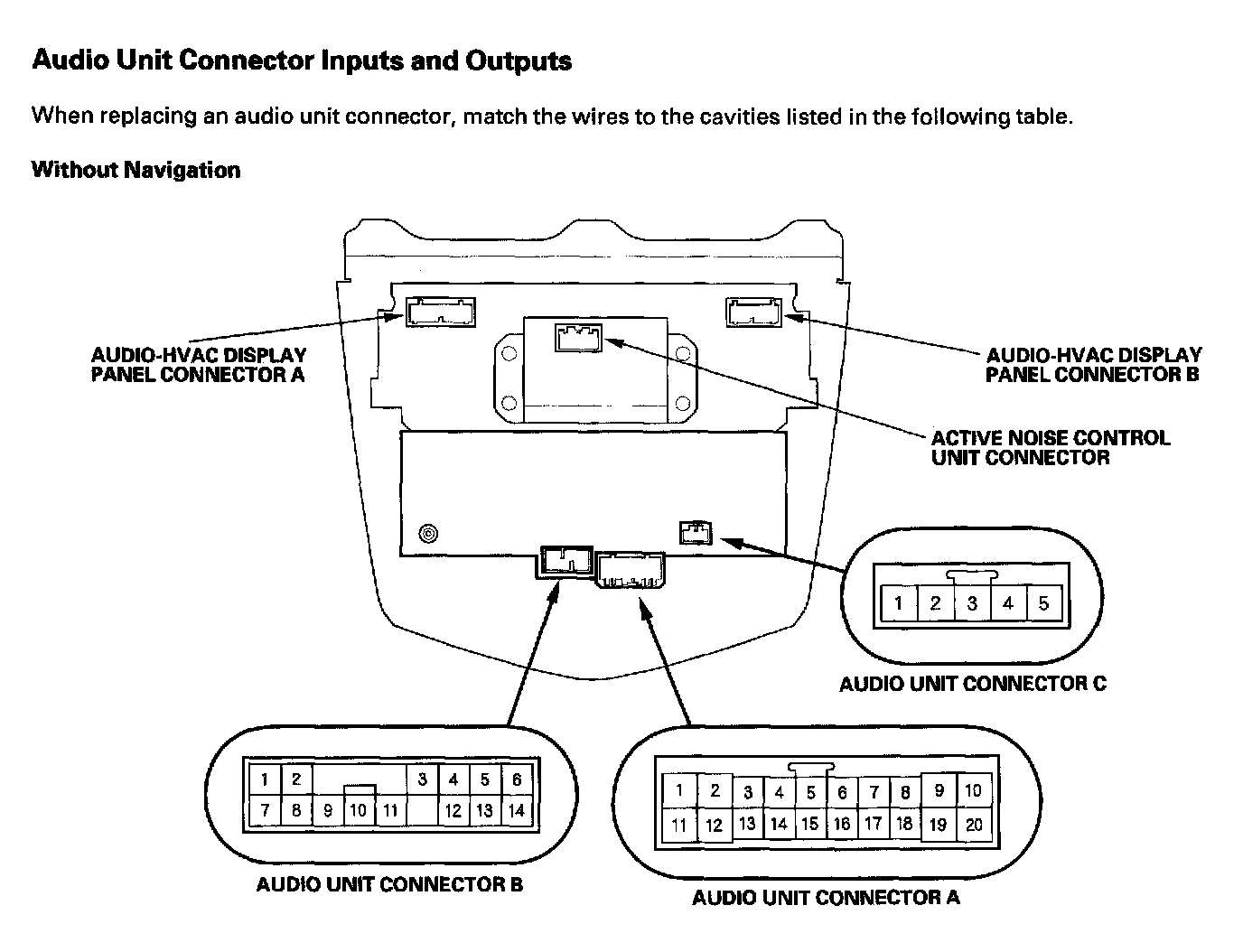

Audio Unit Connector Inputs and Outputs Part 1:

Audio Unit Connector Inputs and Outputs Part 2:

Audio Unit Connector Inputs And Outputs Part 3:

Audio Unit Connector Inputs and Outputs Part 4:

Audio Unit Connector Inputs And Outputs Part 5:

Audio Unit Connector Inputs And Outputs Part 6:

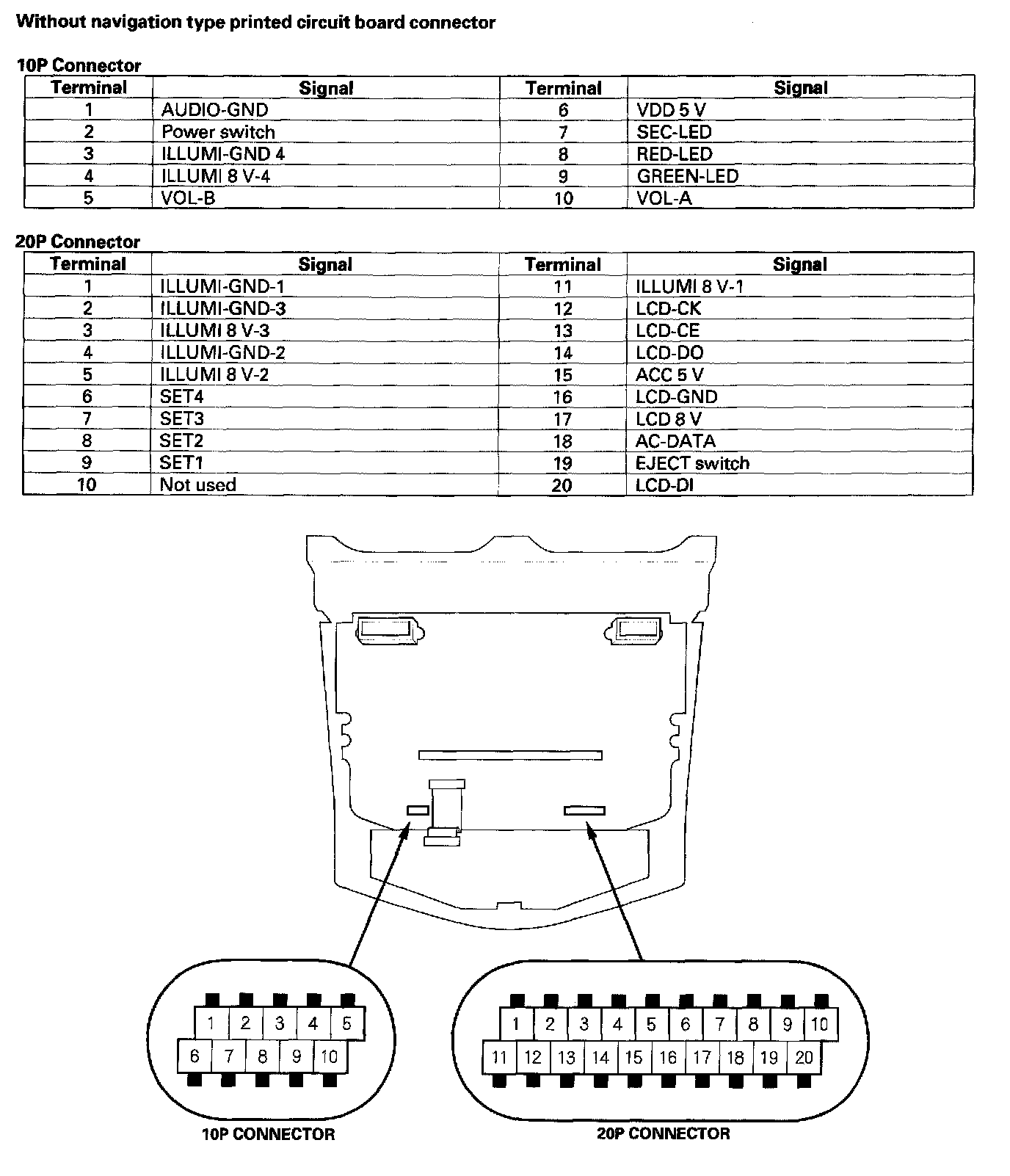

Audio-HVAC Subdisplay Unit Connector Inputs And Outputs:

XM Receiver Connector Inputs And Outputs:

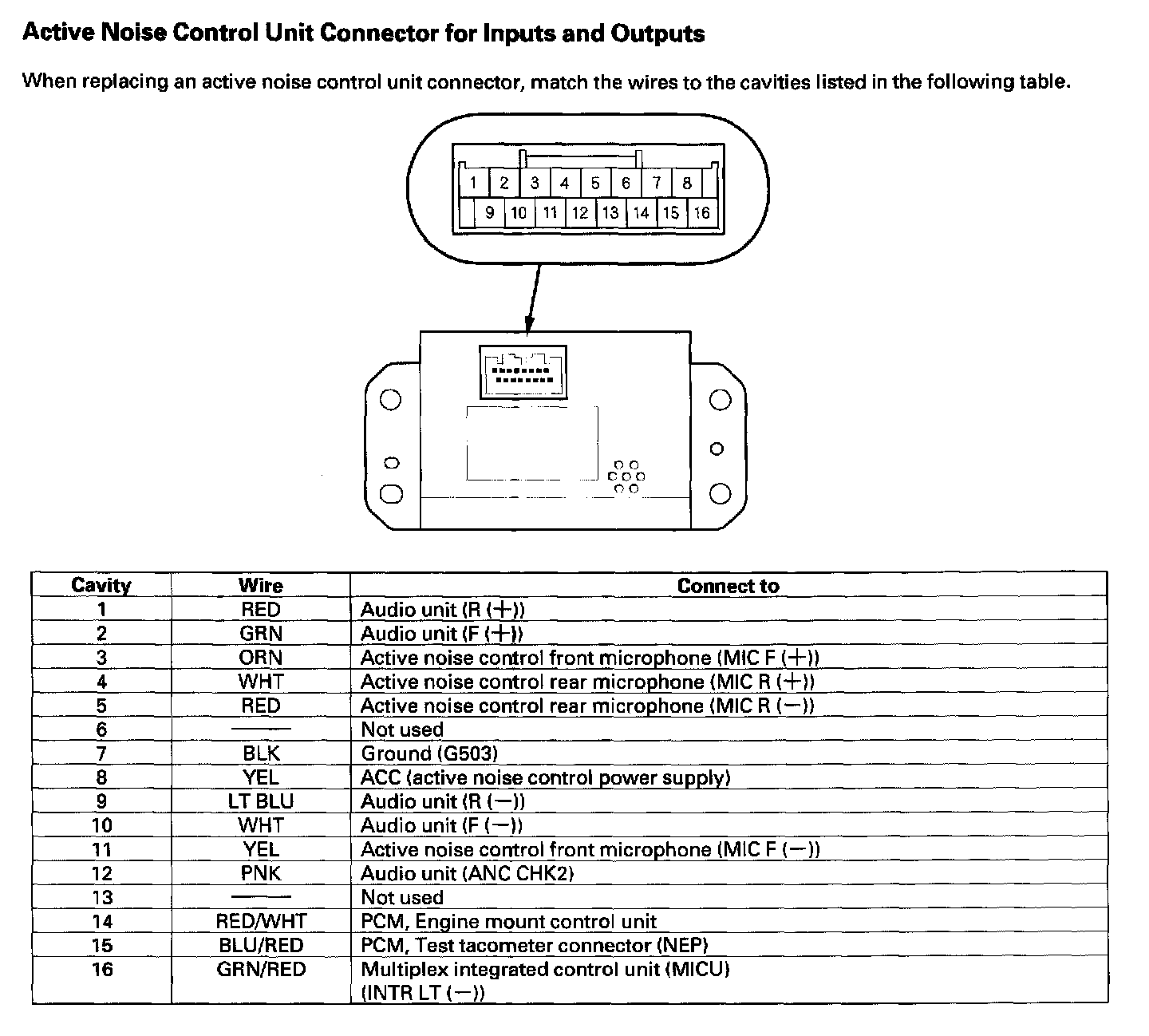

Active Noise Control Unit Connector For Inputs And Outputs:

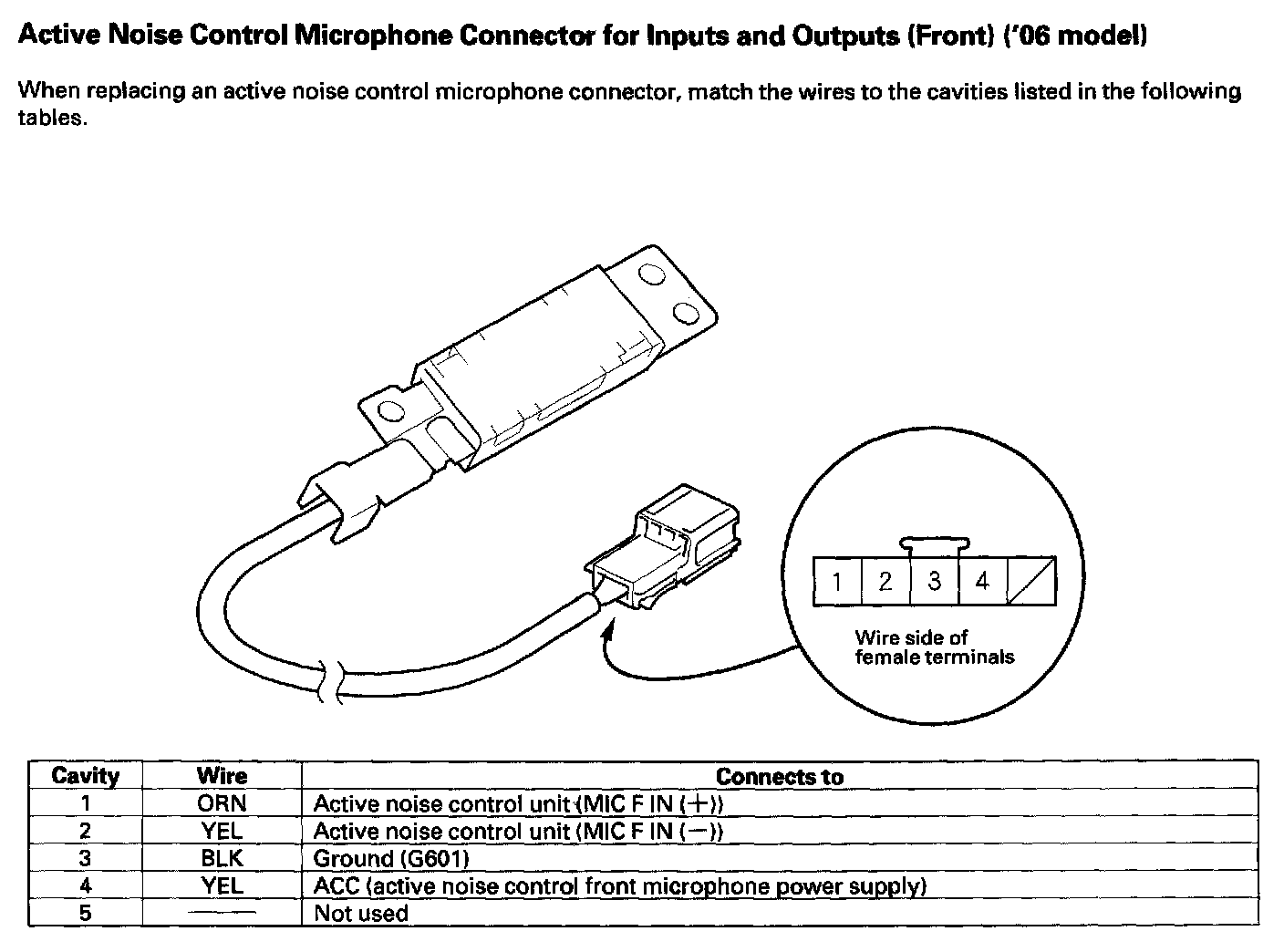

Active Noise Control Microphone Connector For Inputs And Outputs:

Active Noise Control Microphone Connector For Inputs And Outputs (Rear):

280. Audio Unit:

297. XM Receiver (USA):
