Seat Temperature Element
Seat Temperature Element

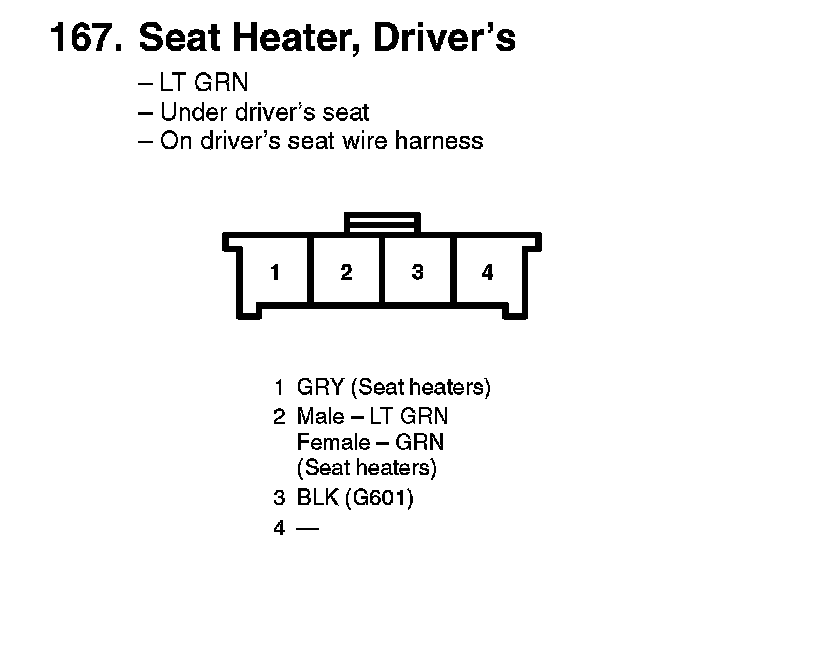

167. Seat Heater, Driver's:

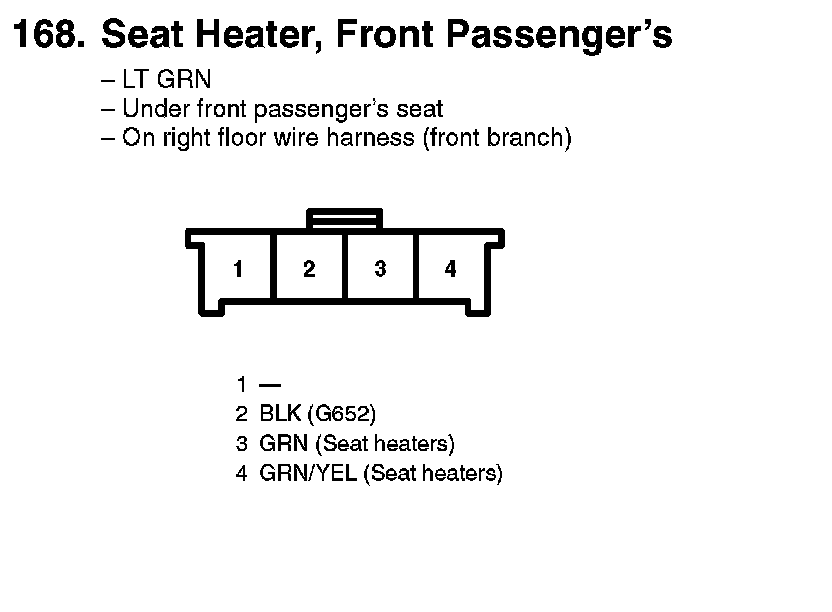

168. Seat Heater, Front Passenger's:
