Seat Temperature Switch

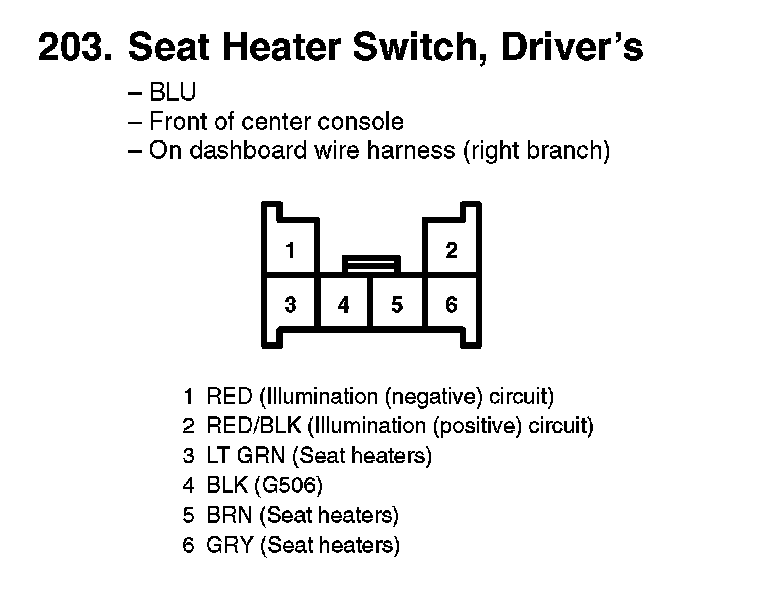

203. Seat Heater Switch, Driver's:



204. Seat Heater Switch, Front Passenger's:
