Shift Solenoid, A/T

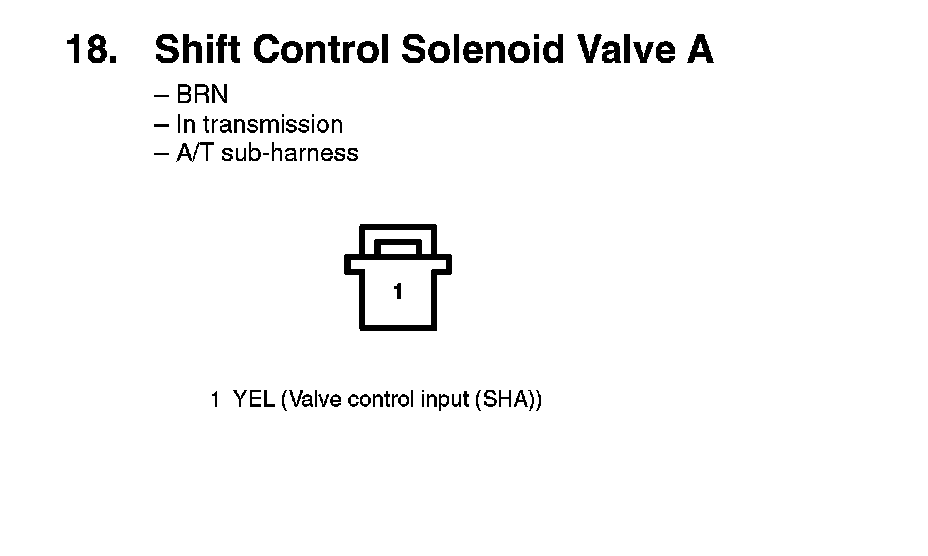

18. Shift Control Solenoid Valve A:

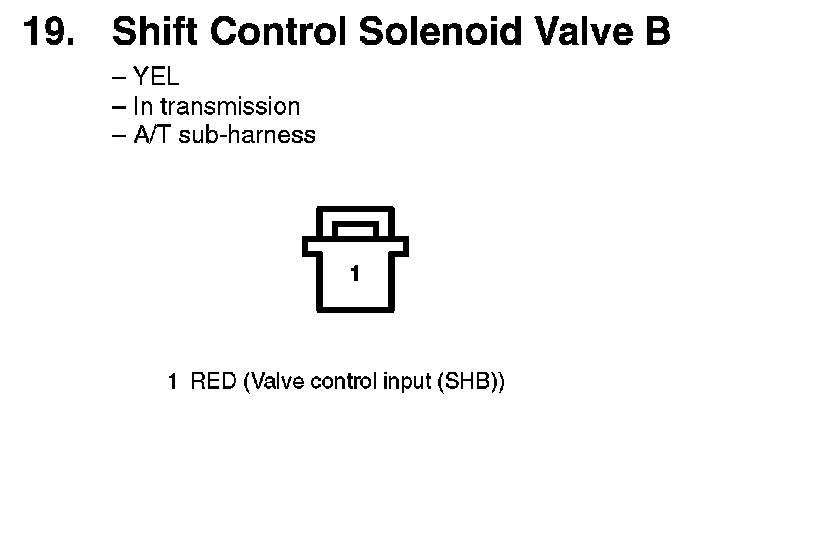

19. Shift Control Solenoid Valve B:

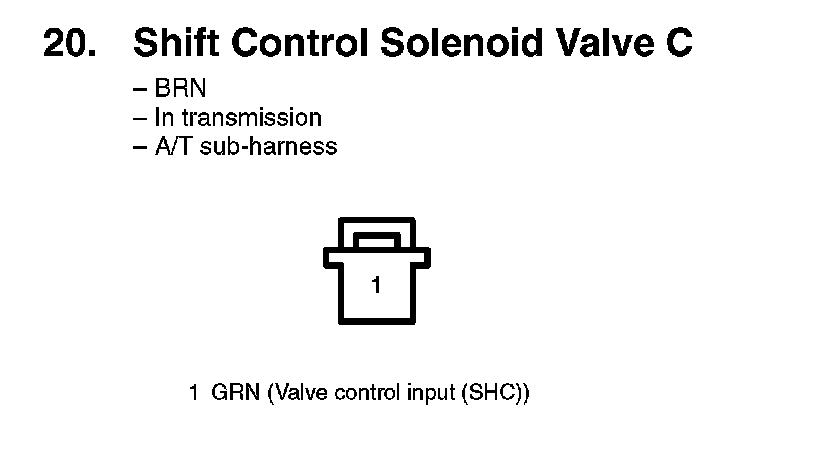

20. Shift Control Solenoid Valve C:

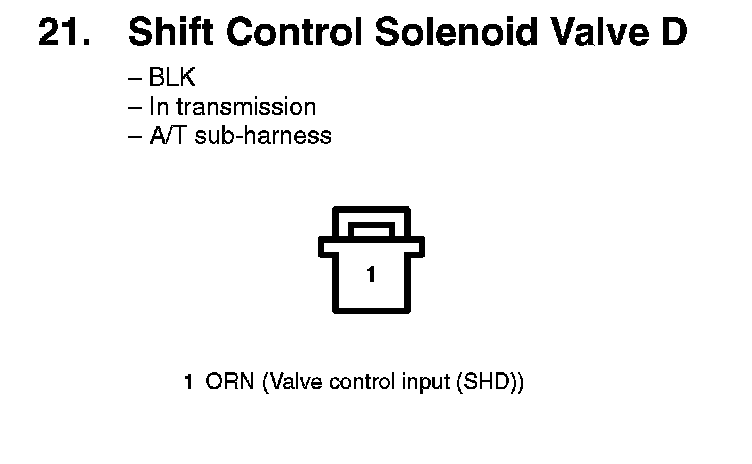

21. Shift Control Solenoid Valve D:
