Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T
131. Input Shaft (Mainshaft) Speed Sensor:

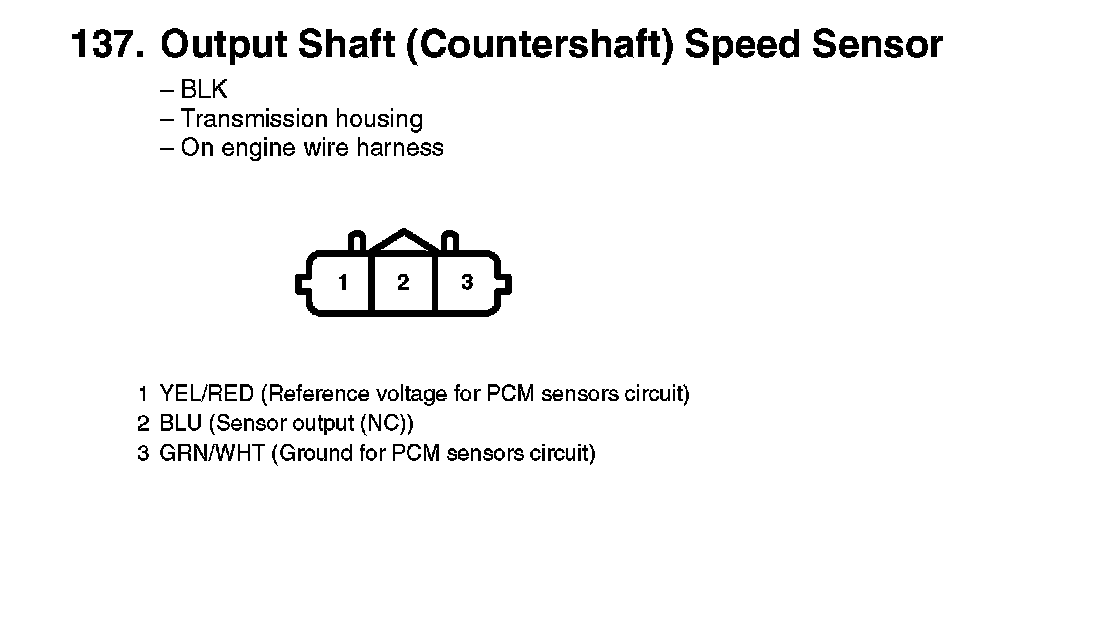

137. Output Shaft (Countershaft) Speed Sensor:
