Voice Activation System
>>
Voice Activation Microphone
Voice Activation Microphone

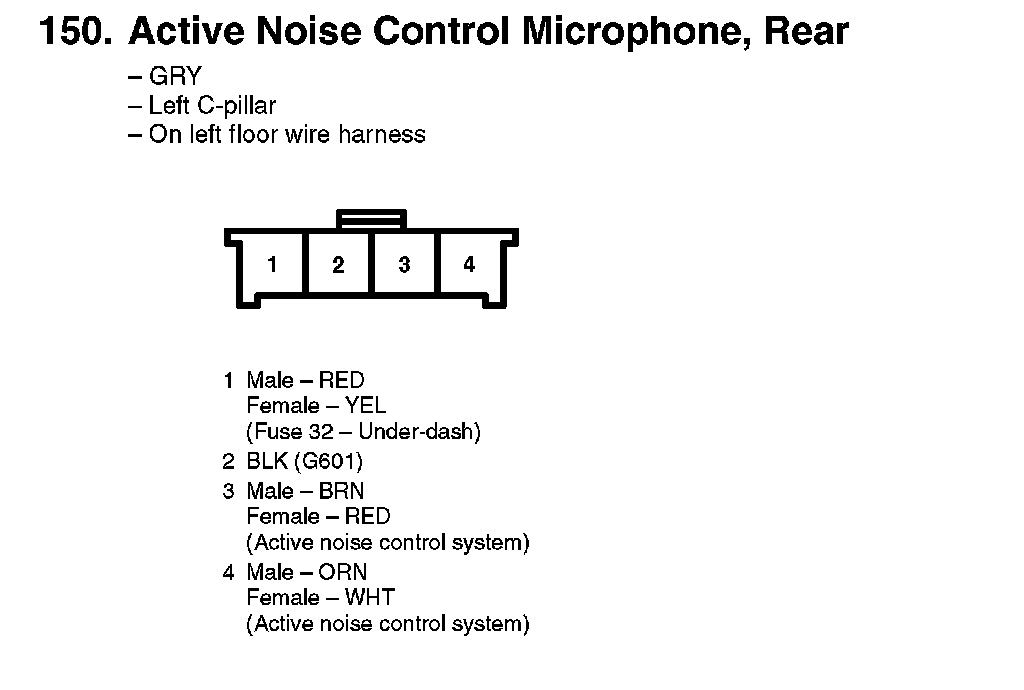

150. Active Noise Control Microphone, Rear:
176. Active Noise Control Microphone, Front:
