Fuel Tank Unit Sub-harness

Harness Location View:

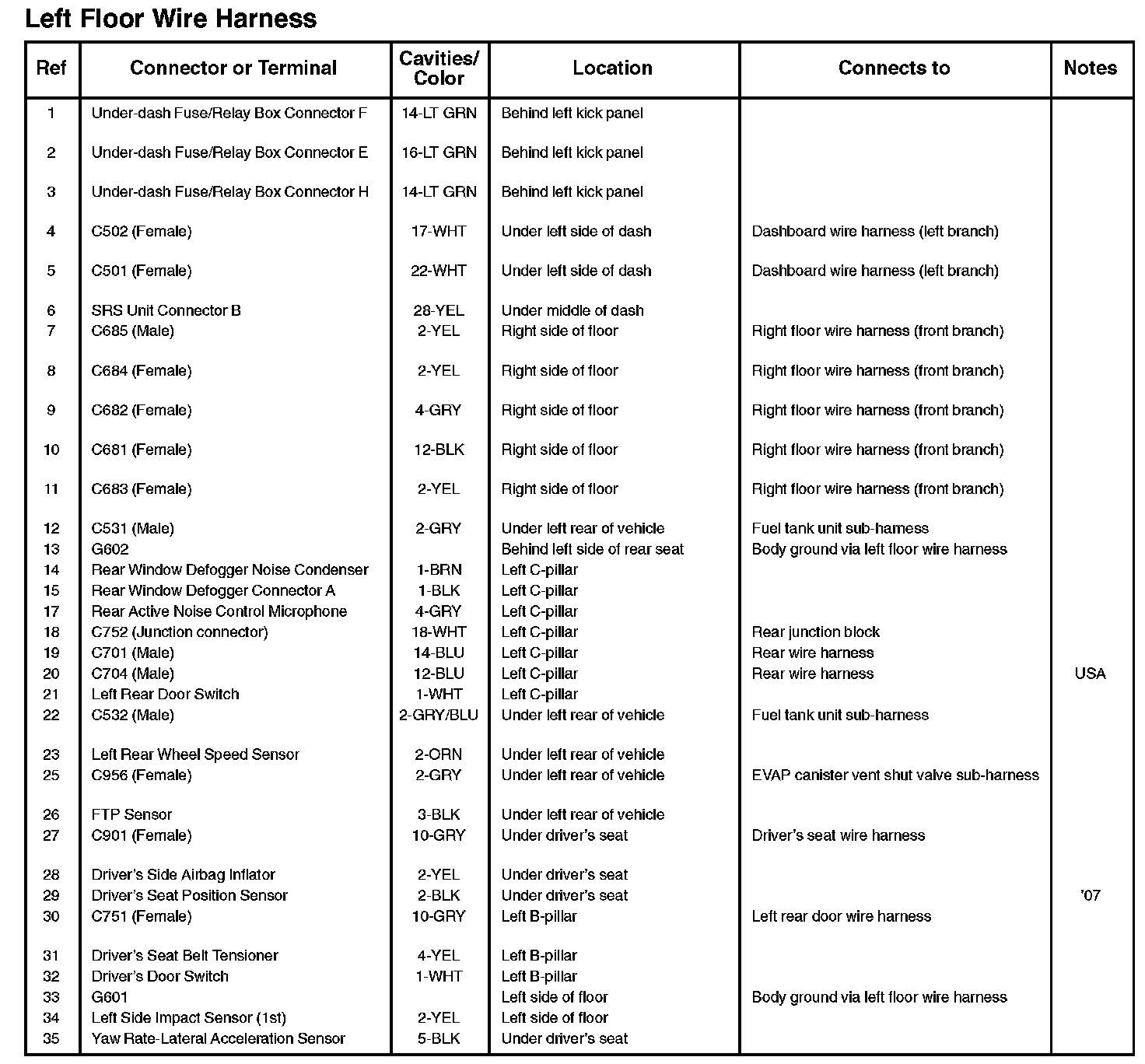

Left Floor Wire Harness:

Harness Location View:

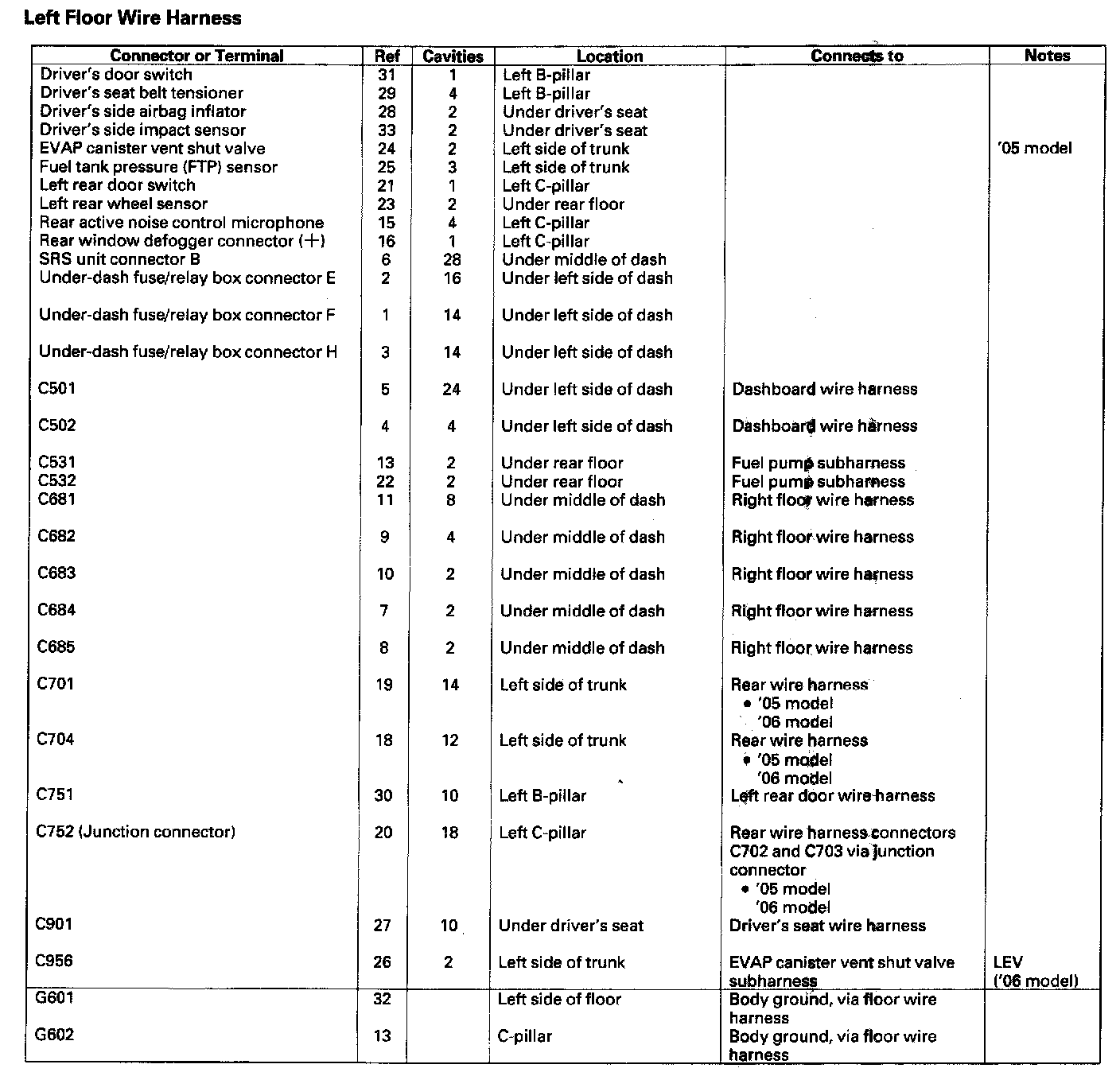

Left Floor Wire Harness:
