Right Floor Wire Harness (Front Branch)
Right Floor Wire Harness (Front Branch)

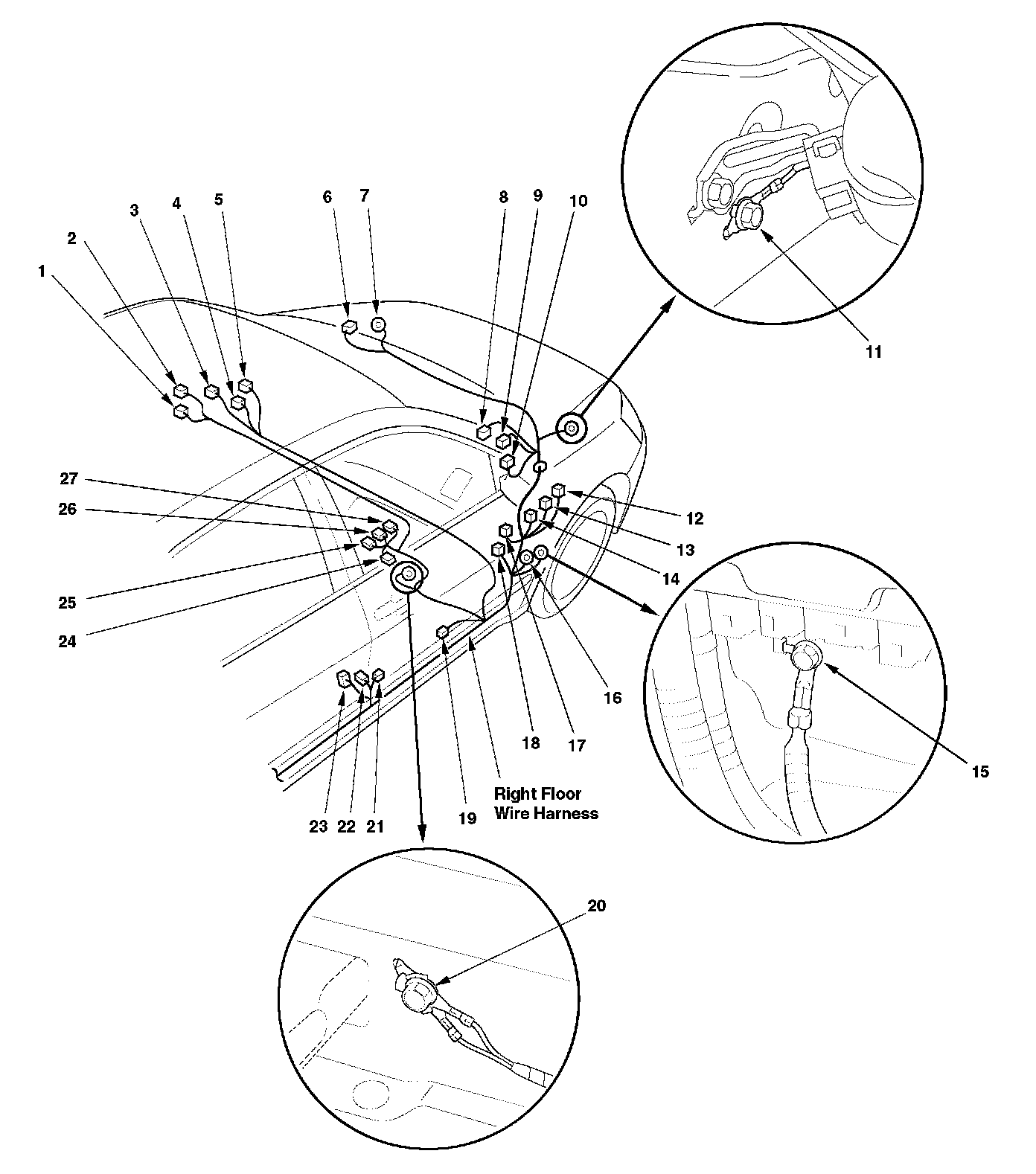

Harness Location View:

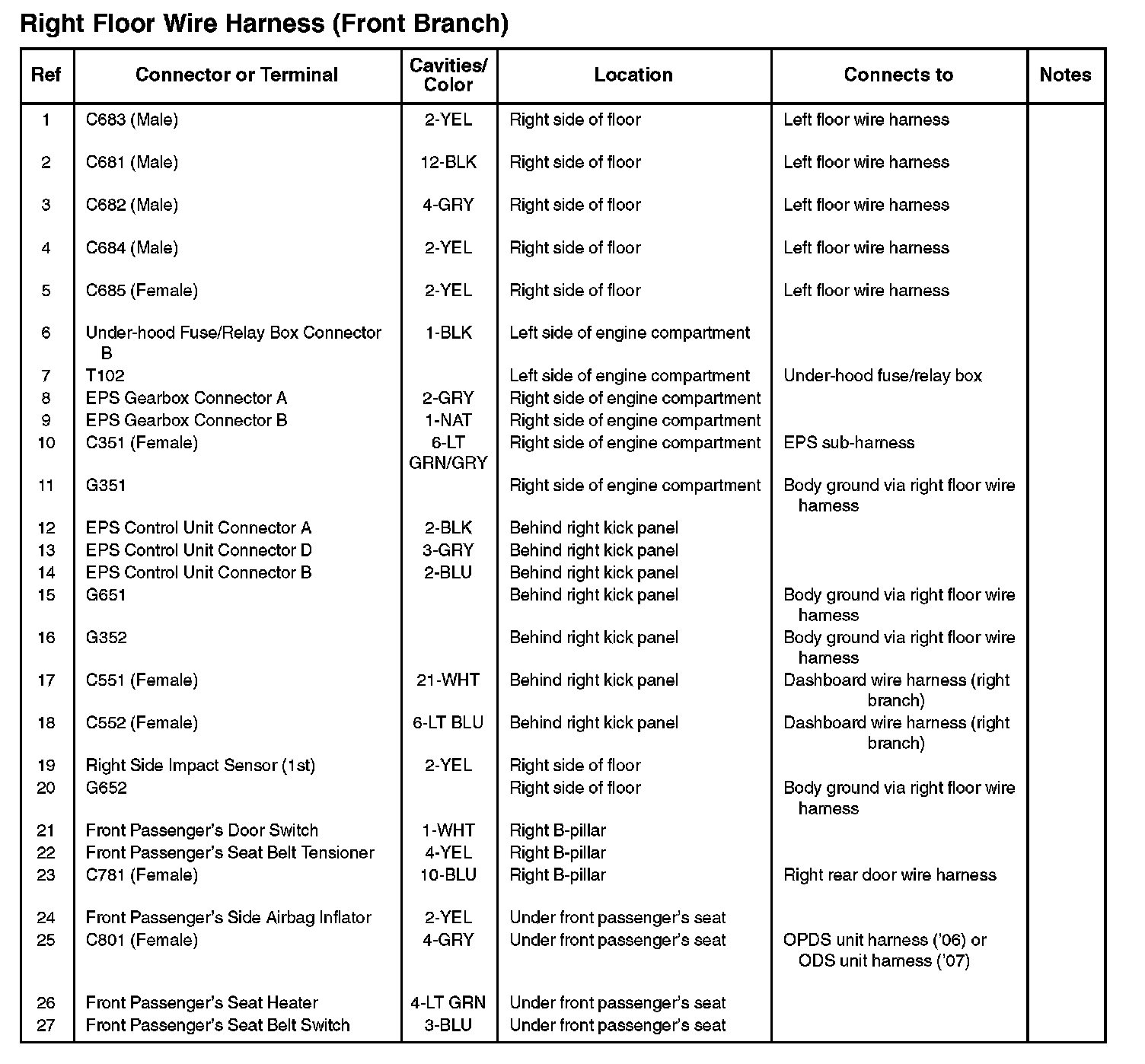

Right Floor Wire Harness (Front Branch):
Harness Location View:

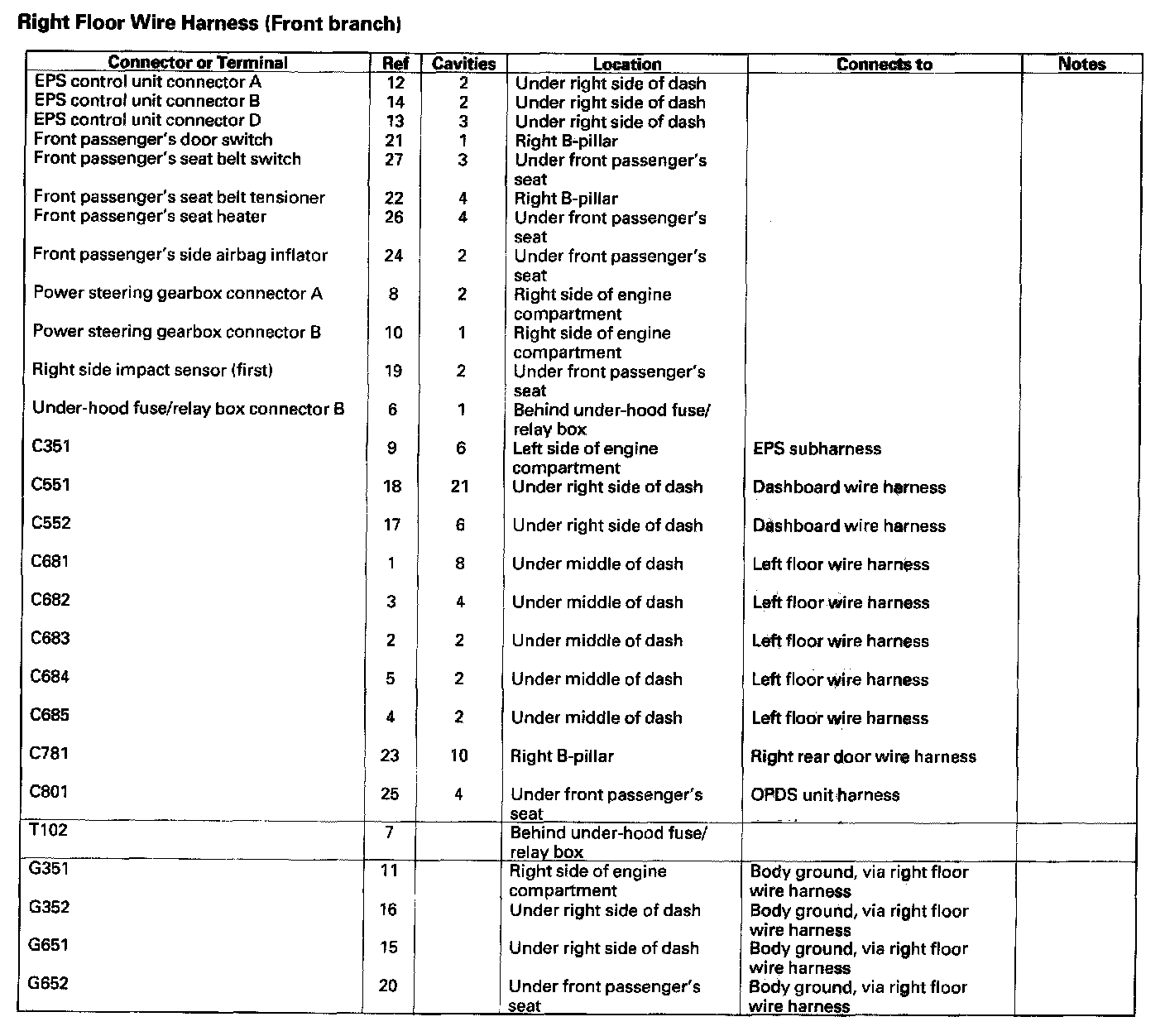

Right Floor Wire Harness (Front Branch):
