Circuit Diagrams

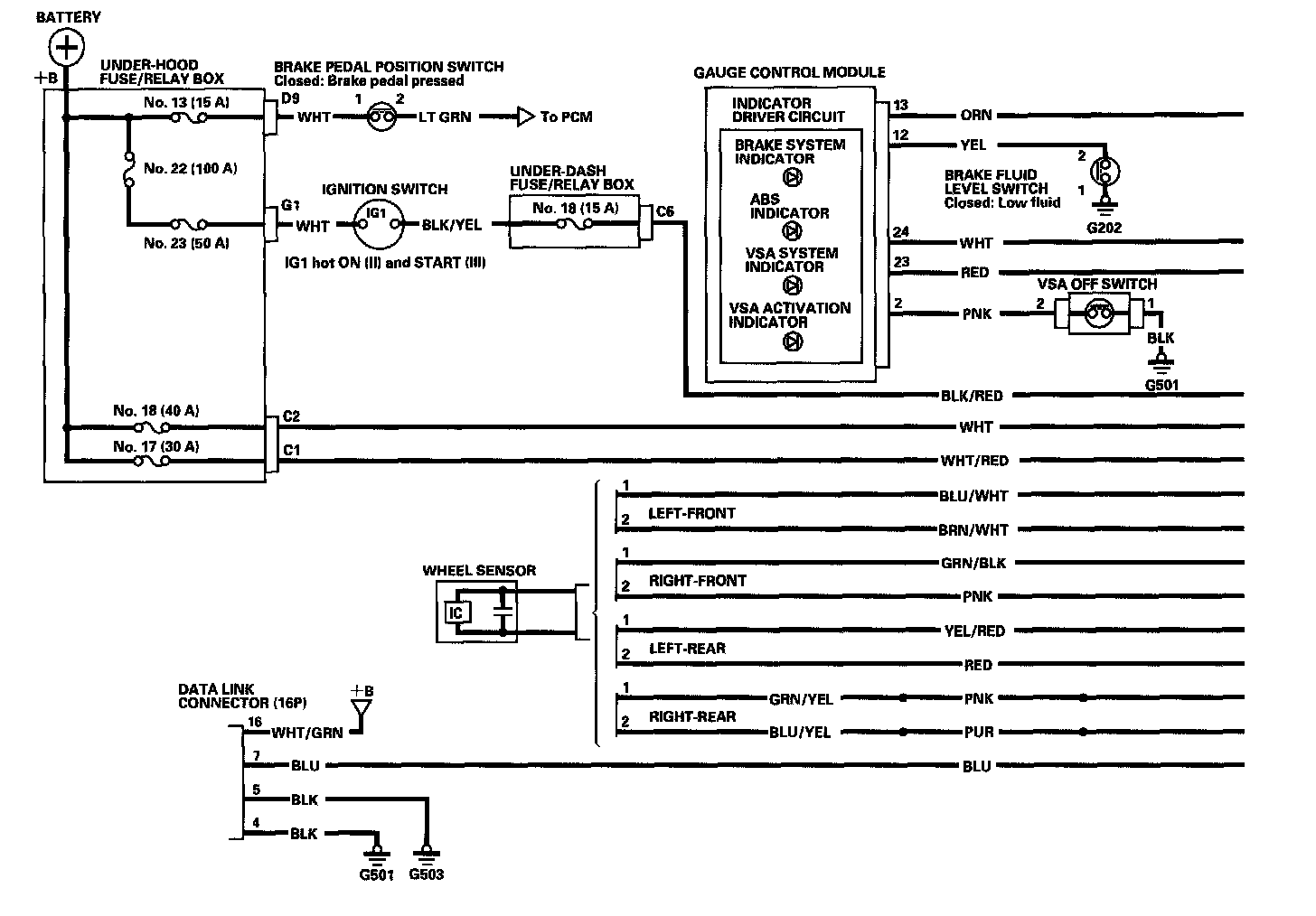

ABS/TCS Circuit Diagram (part 1):



ABS/TCS Circuit Diagram (part 2):



ABS/TCS Circuit Diagram (part 3):
