Diagram Set 15 (Splice and Junction Connector Details)
Diagram Set 15 (Splice and Junction Connector Details)

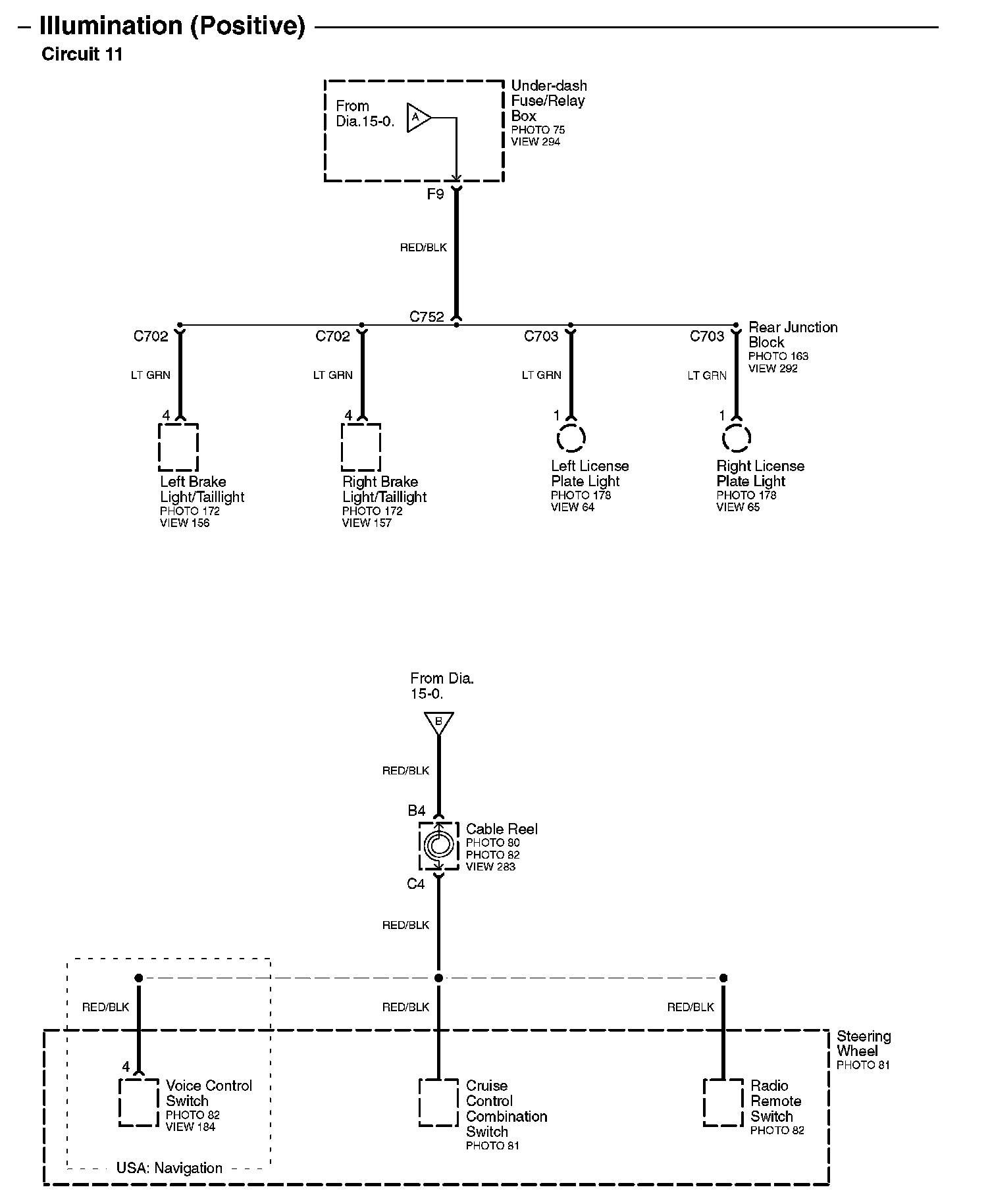

Illumination (Positive) Circuit 11 Part 1:
Illumination (Positive) Circuit 11 Part 2:
