Circuit Diagram

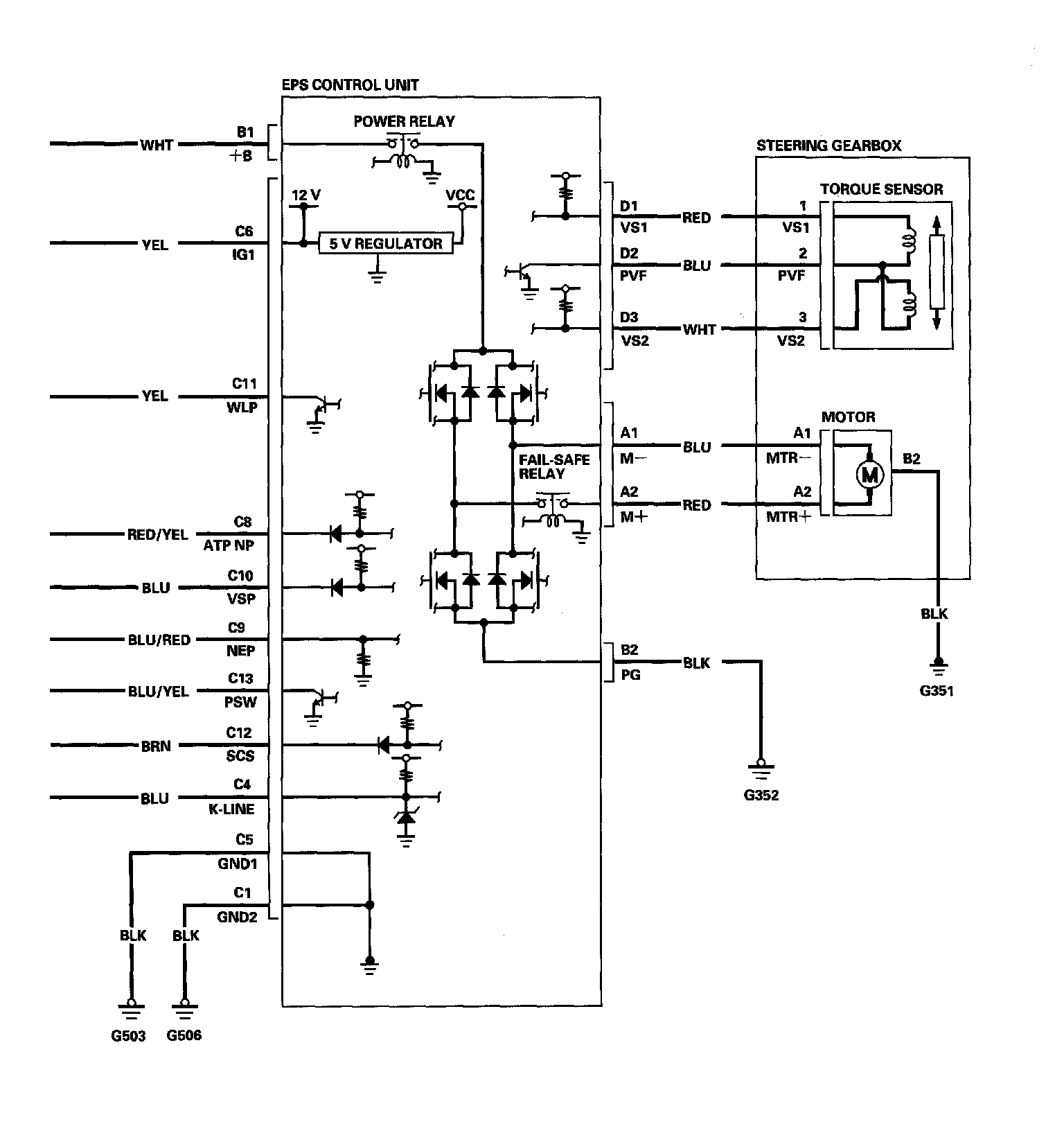

Electric Power Steering EPS Circuit Diagram (Part 1):

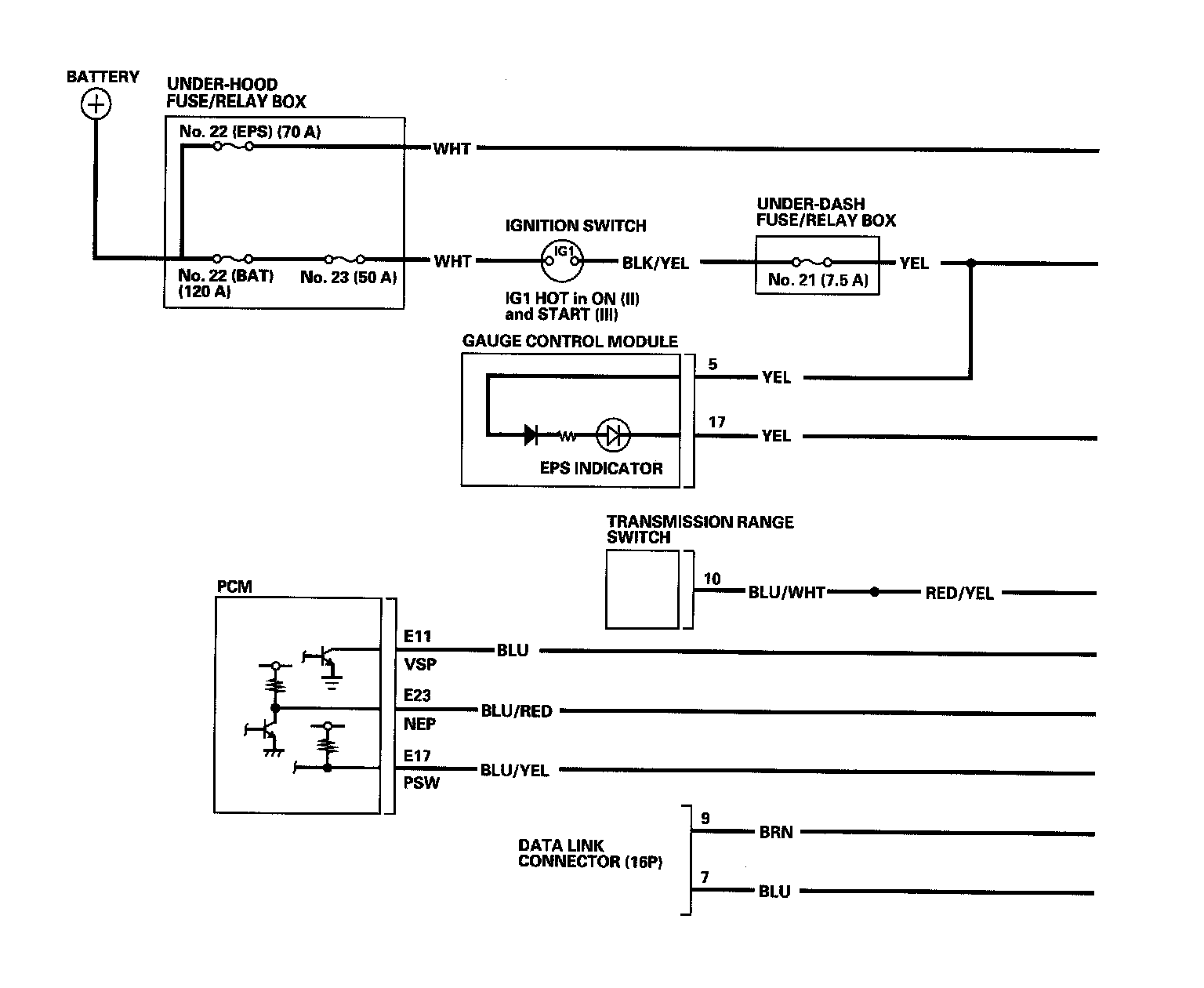

Electric Power Steering EPS Circuit Diagram (Part 2):

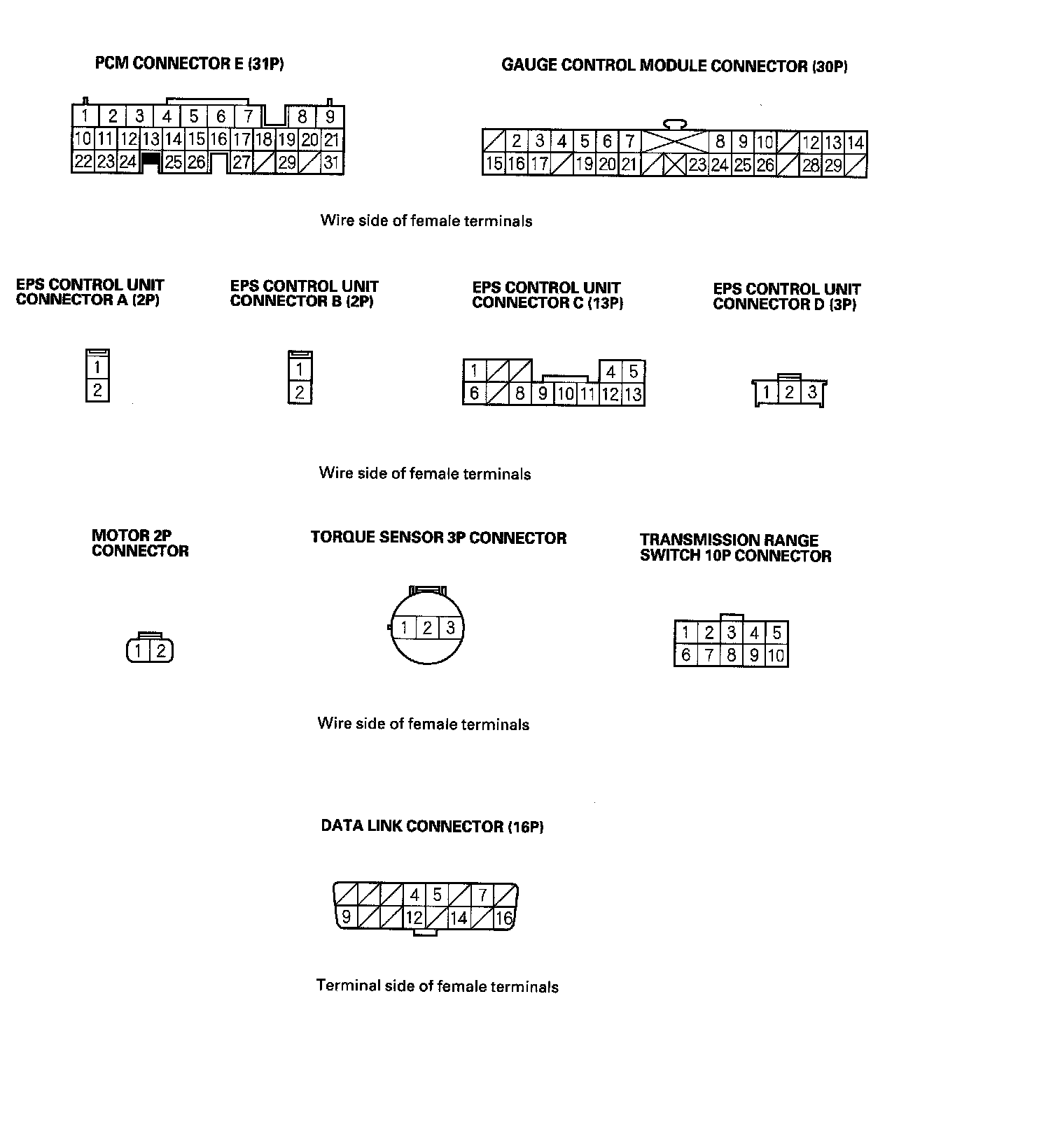

Electric Power Steering EPS Circuit Diagram (Part 3):
