CKP Sensor Subharness
CKP Sensor Subharness

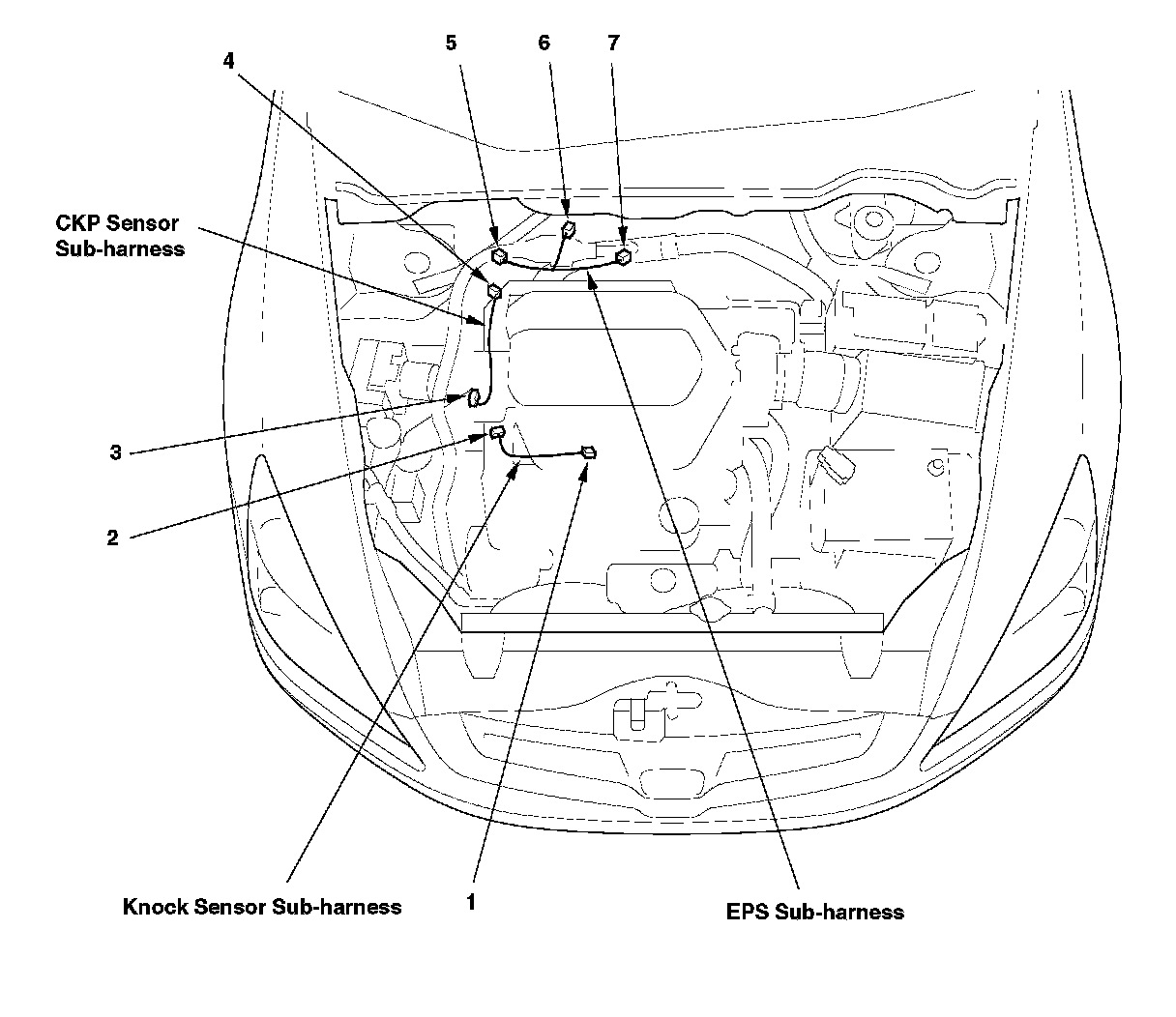

Harness Location View:
Knock Sensor Sub-harness:

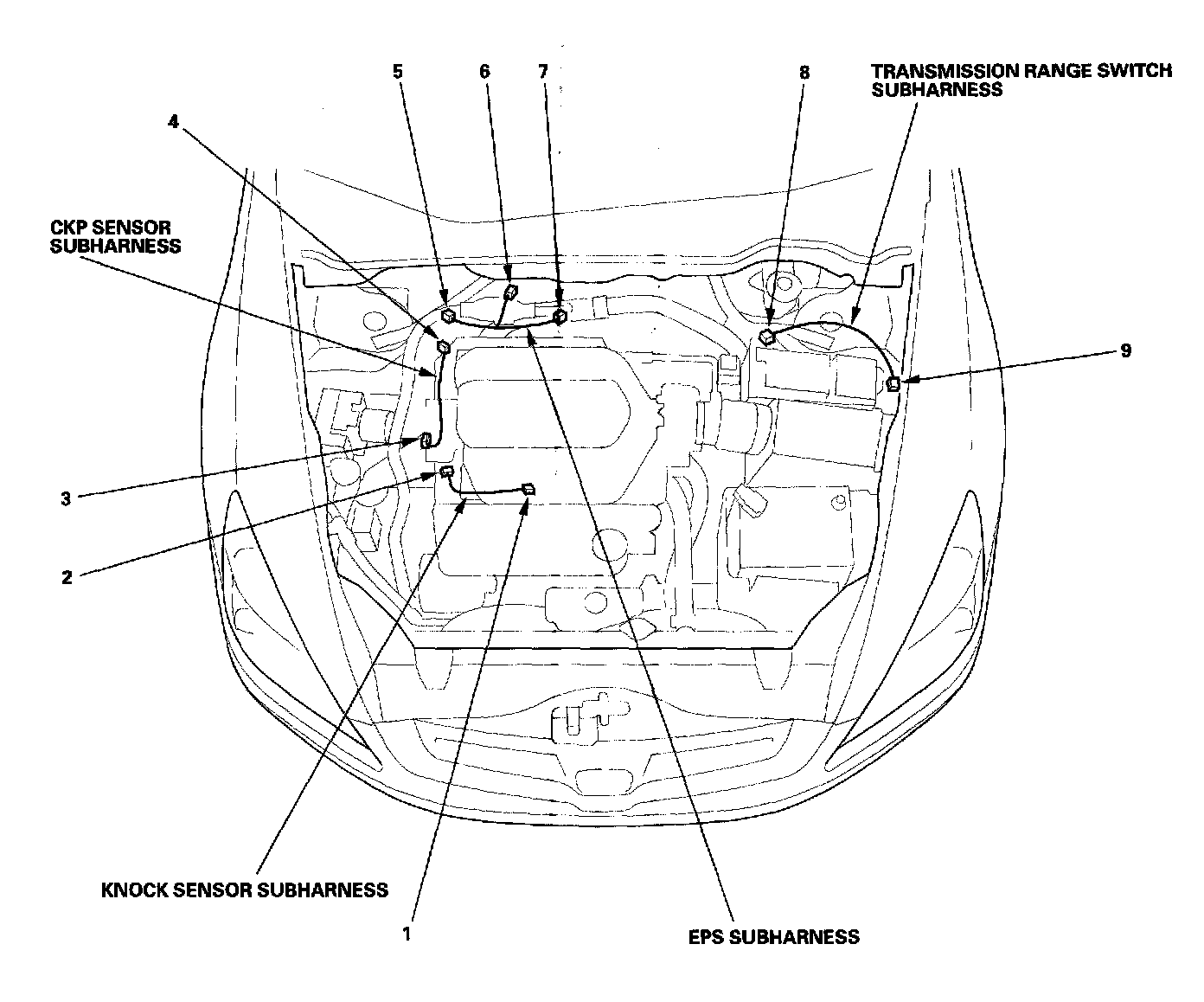

Harness Location View:

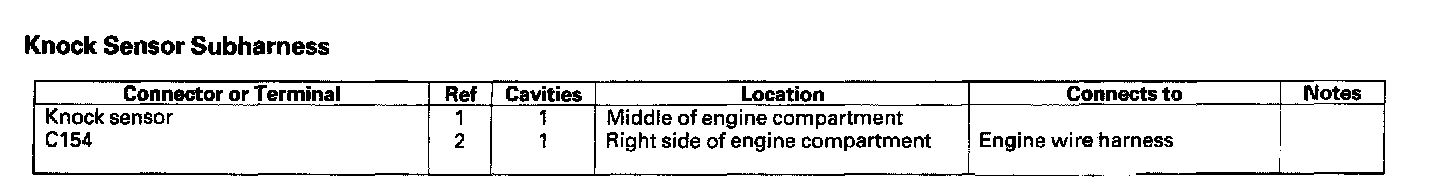

Knock Sensor Subharness:
