Climate Control Circuit Diagram

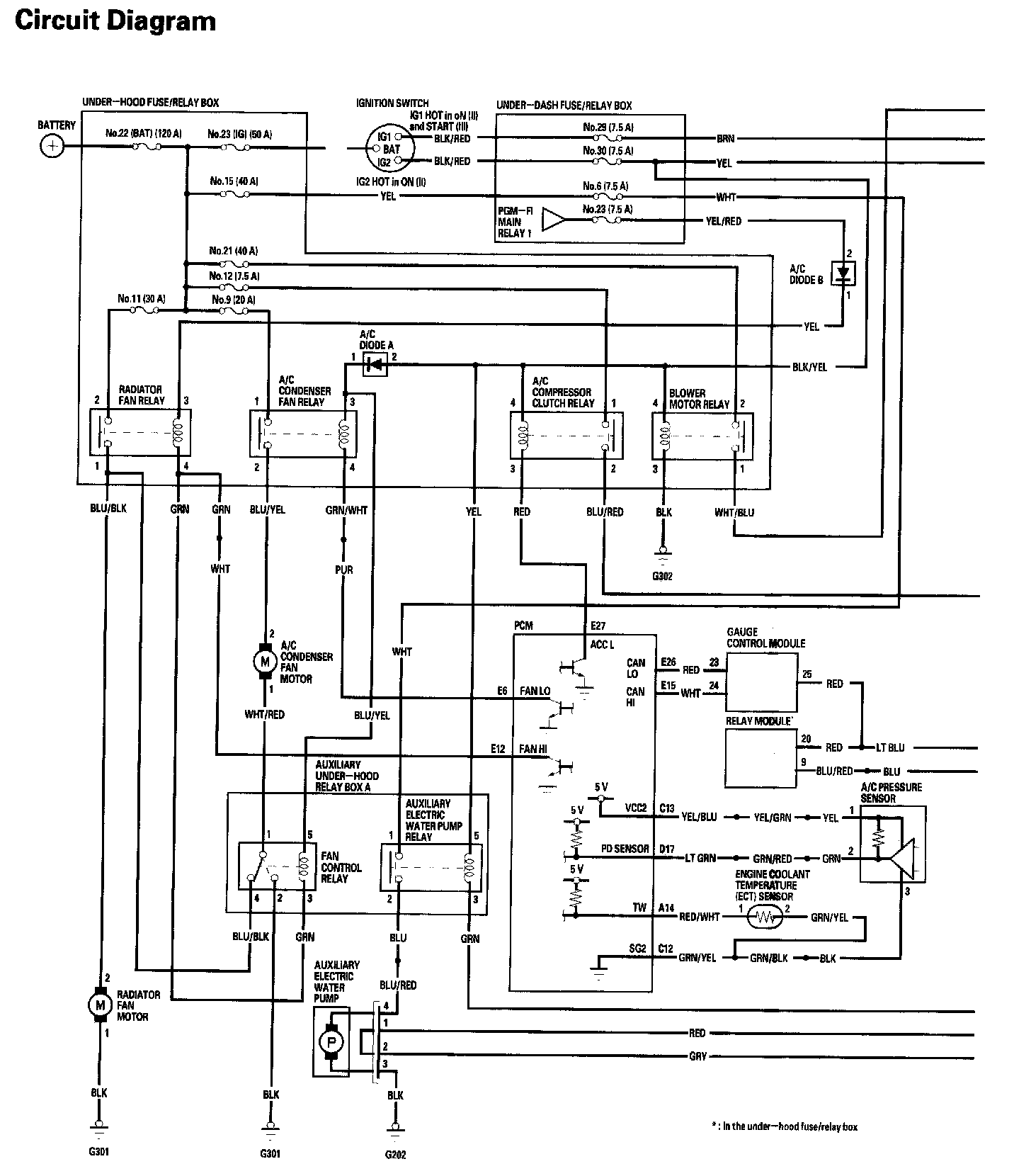

Climate Control - Circuit Diagram part 1:

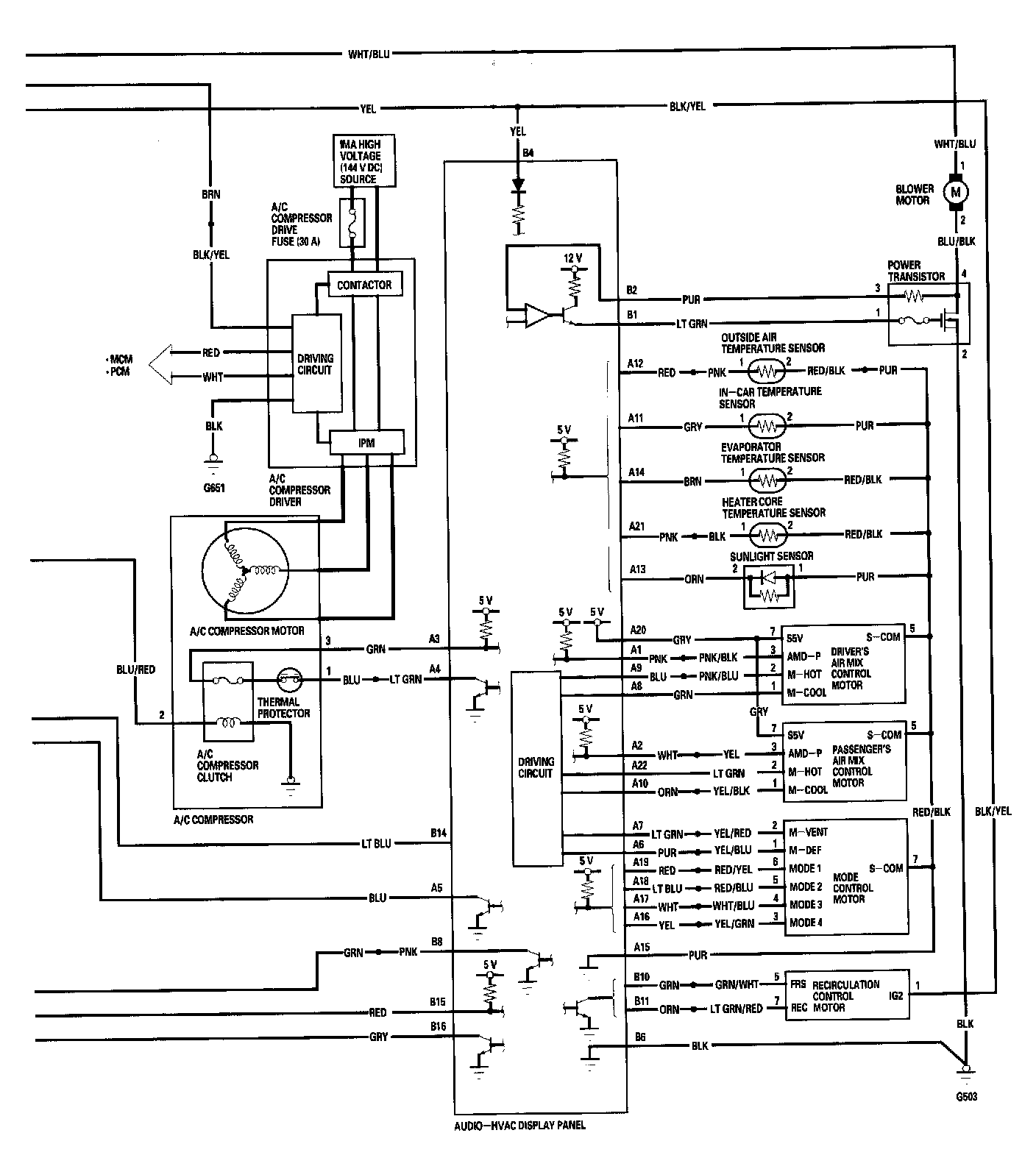

Climate Control - Circuit Diagram part 2:
