MCM Inputs and Outputs at Connector A (31P)
MCM Inputs and Outputs at Connector A (31P)

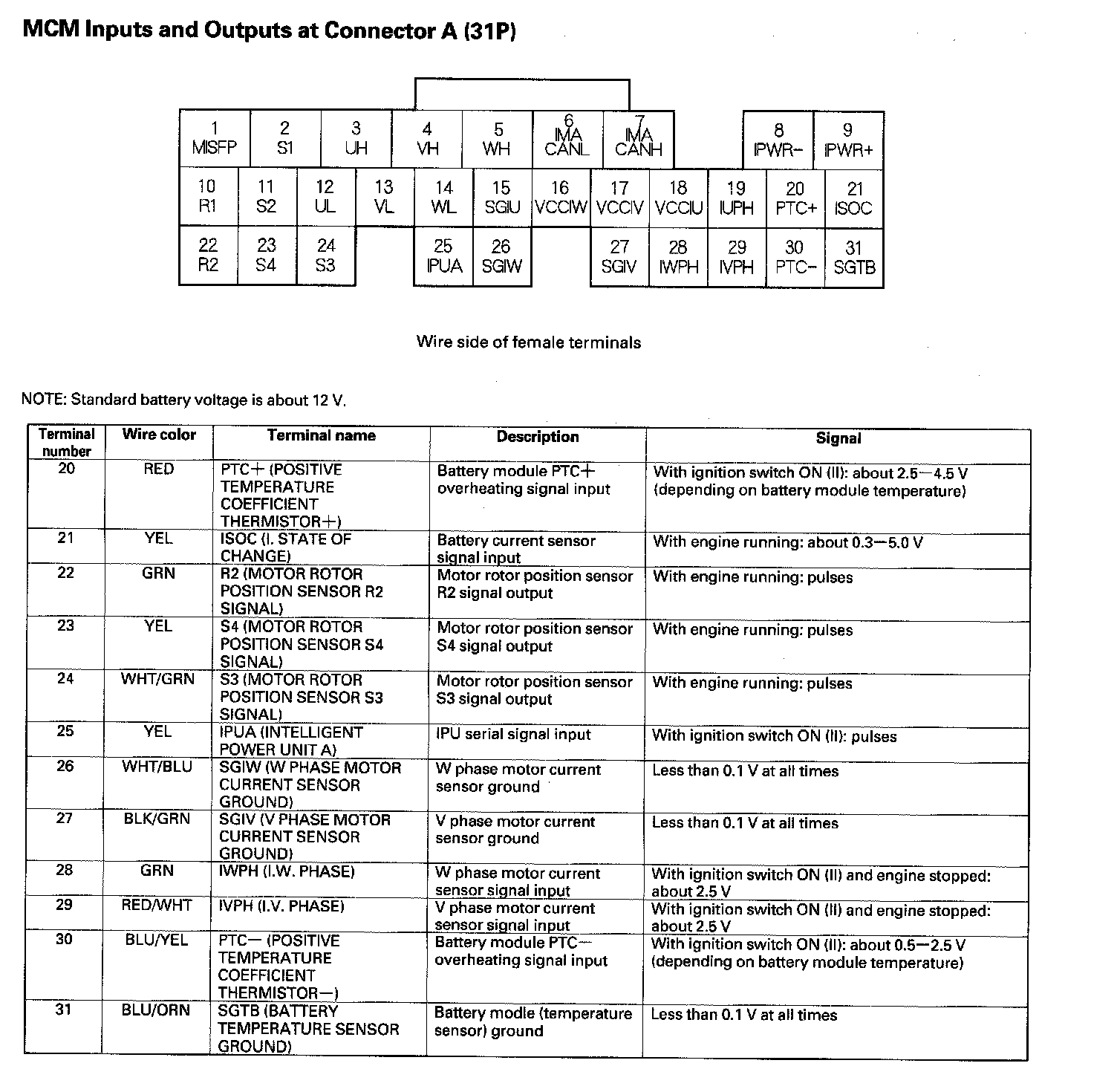

MCM Inputs and Outputs at Connector A (31P):
MCM Inputs and Outputs at Connector A (31P):
