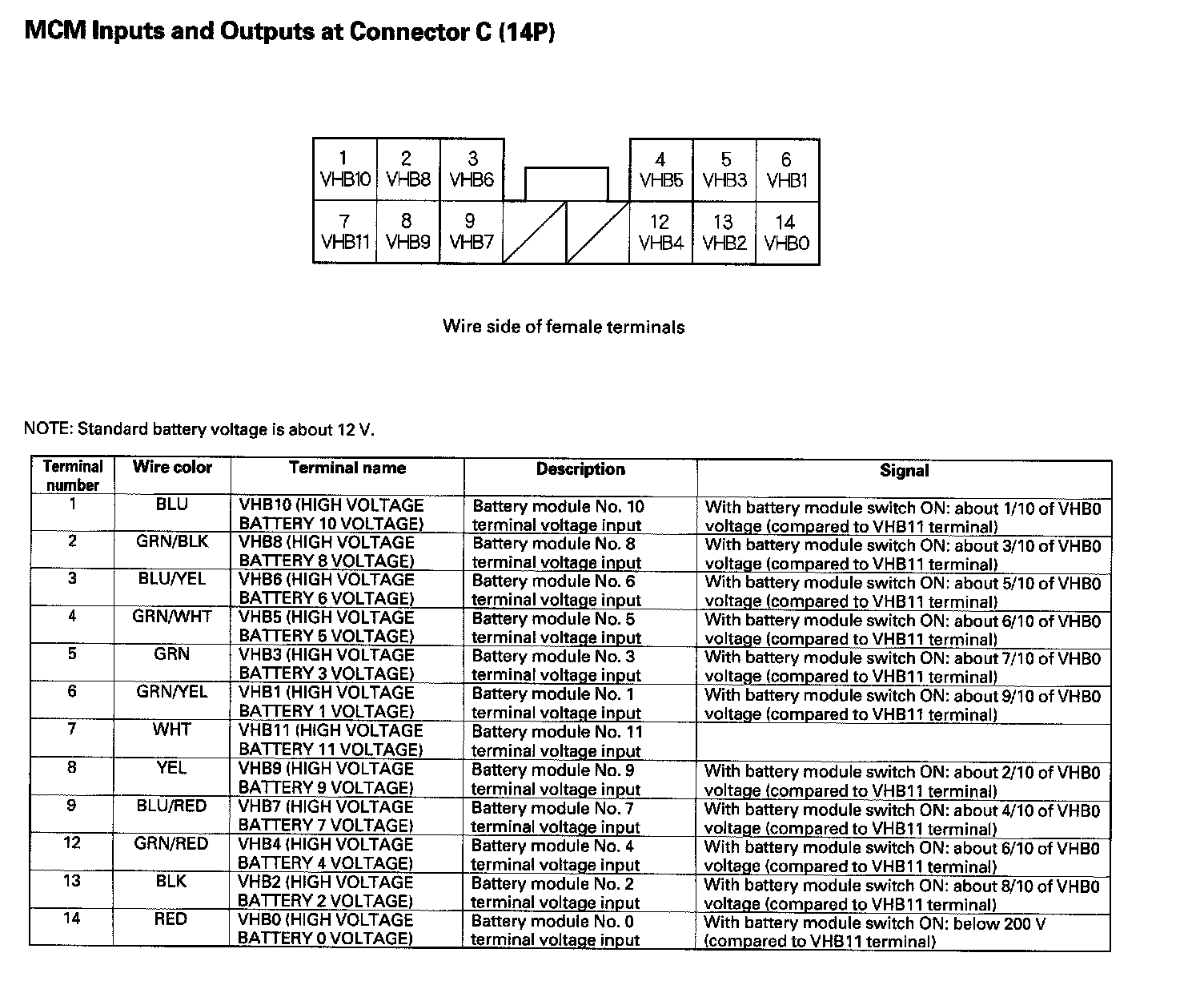

MCM Inputs and Outputs at Connector C (14P)
MCM Inputs and Outputs at Connector C (14P)
MCM Inputs and Outputs at Connector C (14P):
