Backup Lamp: Service and Repair

Back-up Light Replacement

'06 model

1. Remove the rear license trim.

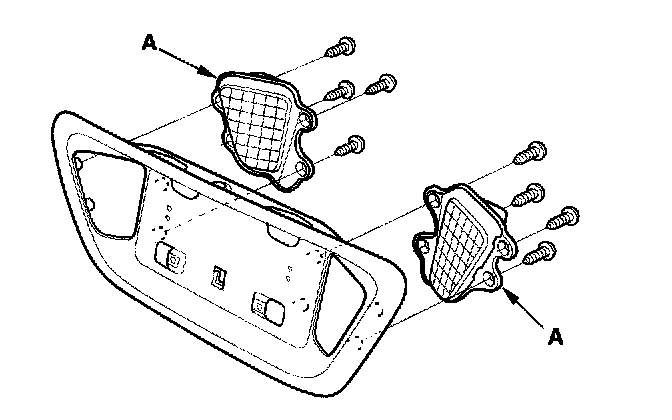

2. Remove the four screws, then remove the back-up lights (A).
3. Install the back-up lights in the reverse order of removal.
