Courtesy Lamp: Locations

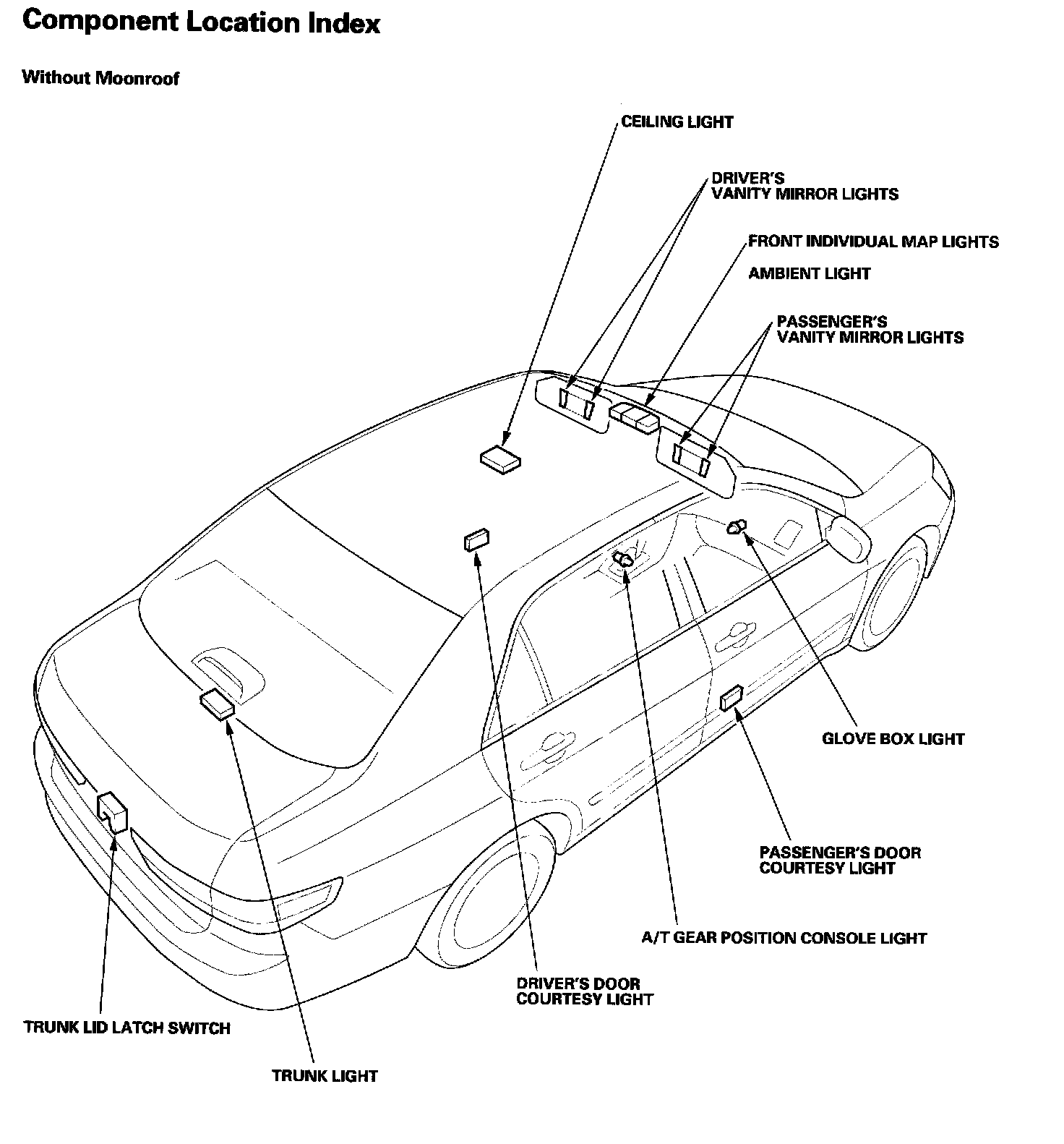

Interior Lights - Component Location Index Part 1:

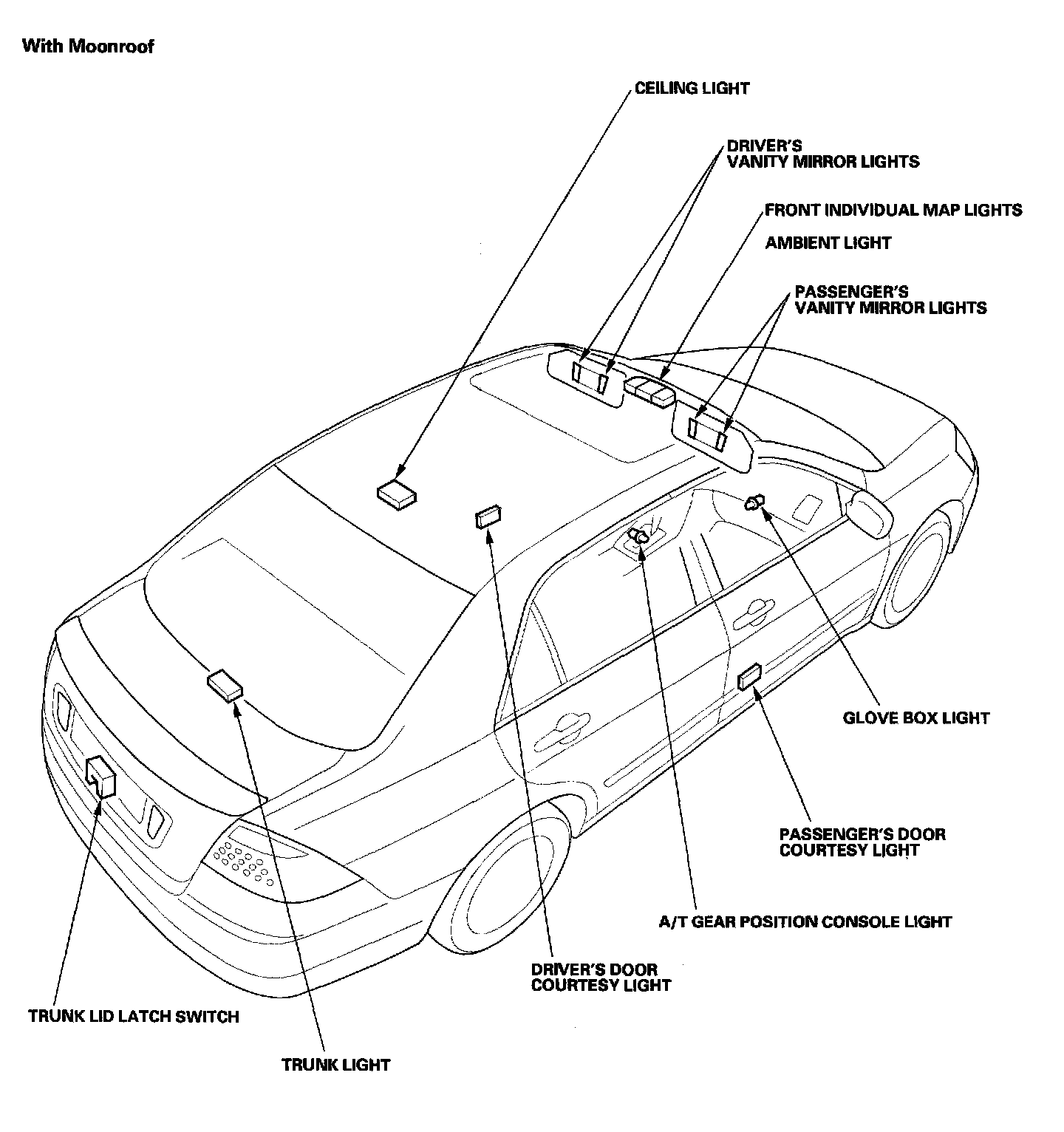

Interior Lights - Component Location Index Part 2:
