Ambient Light Replacement

Ambient Light Replacement

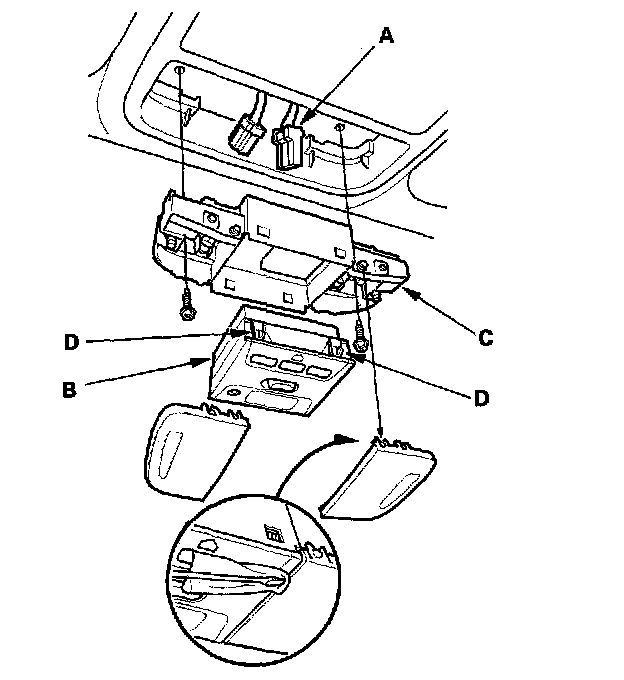

1. Remove the front individual map light.




2. Disconnect the 8P connector (A) from the ambient light.
3. Carefully pry off the ambient light assembly (B) from the map light housing (C) while pressing in on the retaining tabs (D).
4. Install in the reverse order removal.
