Turn Signal Lamp: Diagrams

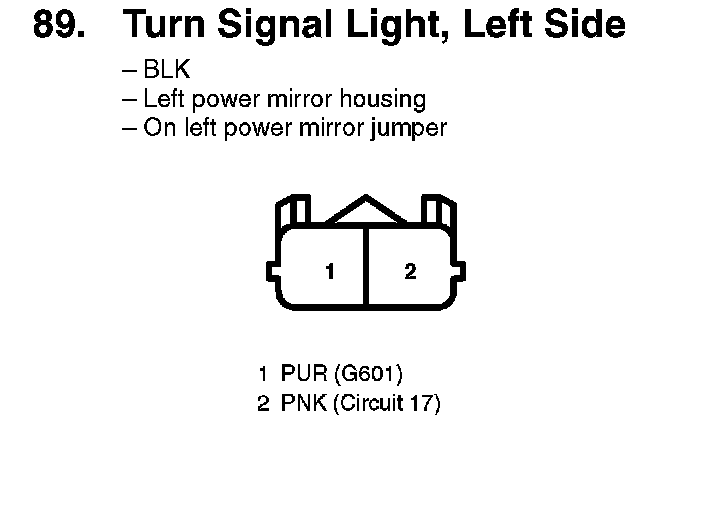

89. Turn Signal Light, Left Side:

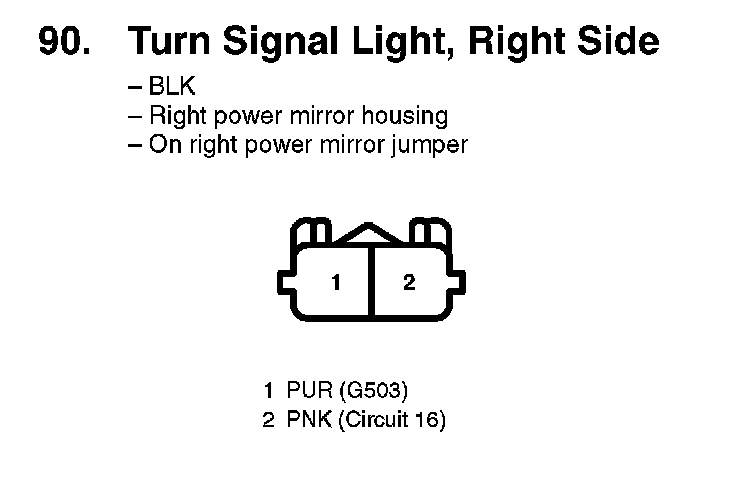

90. Turn Signal Light, Right Side:

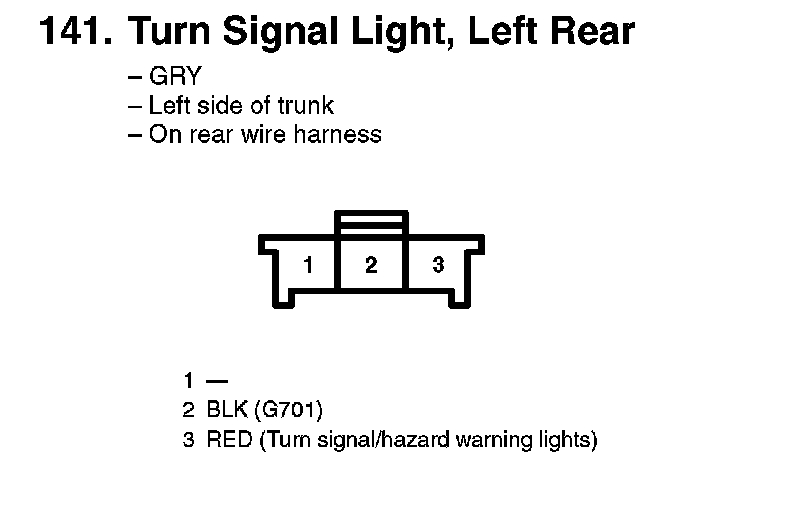

141. Turn Signal Light, Left Rear:
142. Turn Signal Light, Right Rear:
