Evaporative Emissions System: Locations

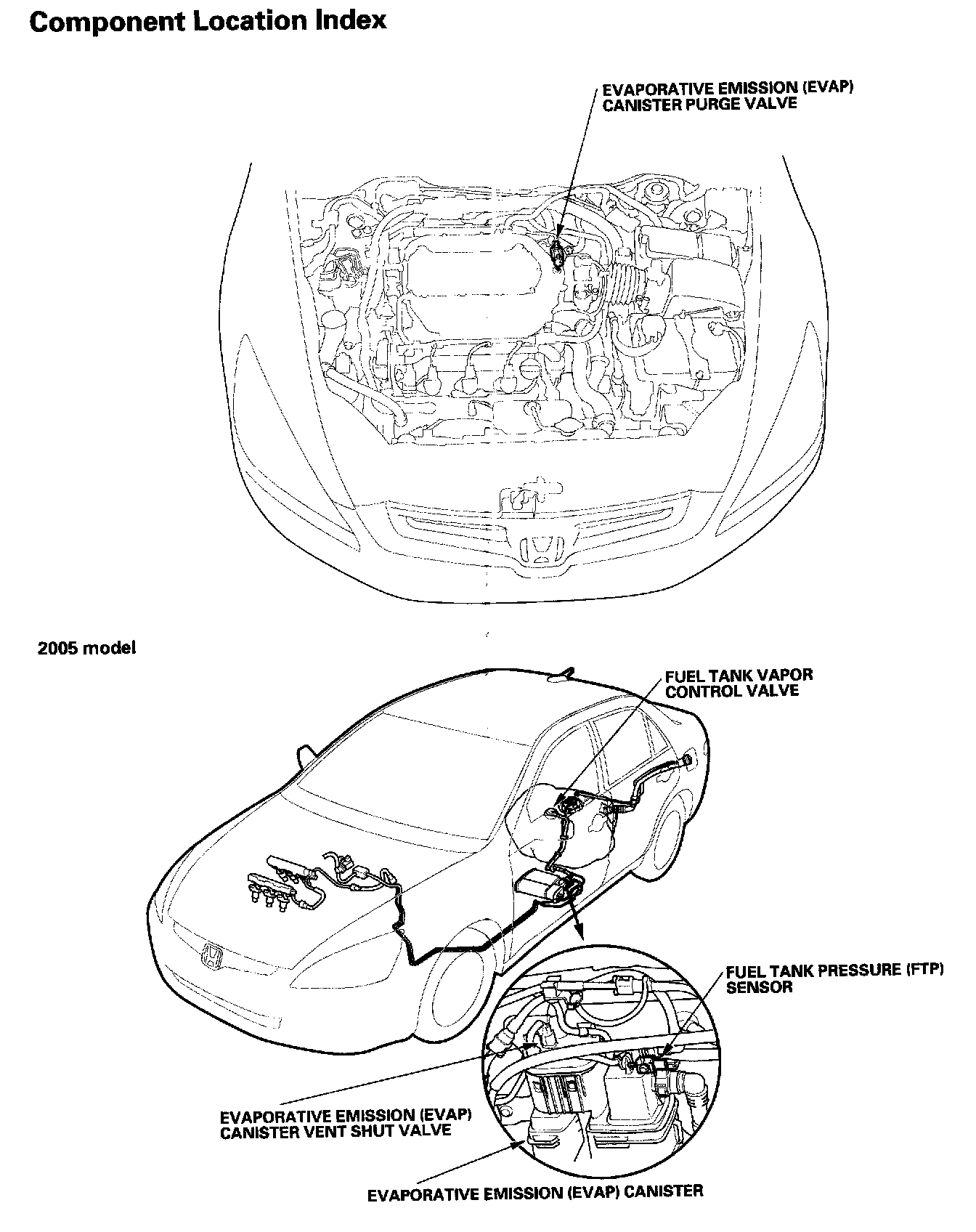

EVAP System - Component Location Index:
EVAP System - Component Location Index:
181. Under Left Rear of Vehicle:
