Reopening the SRS Unit Circuit For Diagnosis

Reopening the SRS Unit Circuit For Diagnosis

Special Tools Required
SRS short canceller 070AZ-SAA0100

NOTE:
- To prevent damage of the connector cavity, insert the short canceller straight into the cavity from the terminal side.
- Do not use the short canceller if it is damaged.
- Make sure to remove the short canceller before reconnecting the connector.

When SRS unit connectors A, B, or C are disconnected, a short circuit is created in the connector by its own function to prevent airbag deployment. The circuit may need to be opened when diagnosis is performed on the circuit.

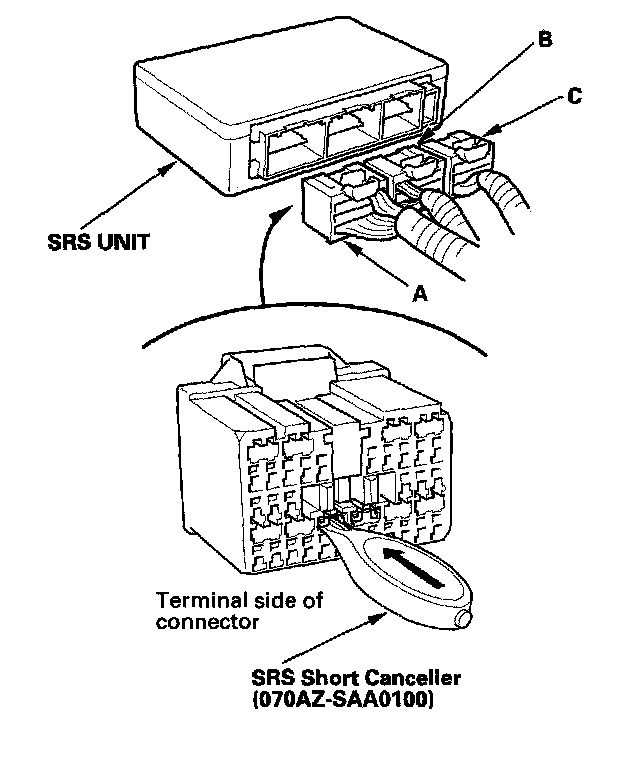

Insert the short canceller (No. 070AZ-SAA0100) in the specified cavities when it is necessary to keep the circuit open for diagnosis.
