Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Fog/Driving Lamp Switch >> Diagrams

Fog/Driving Lamp Switch: Diagrams

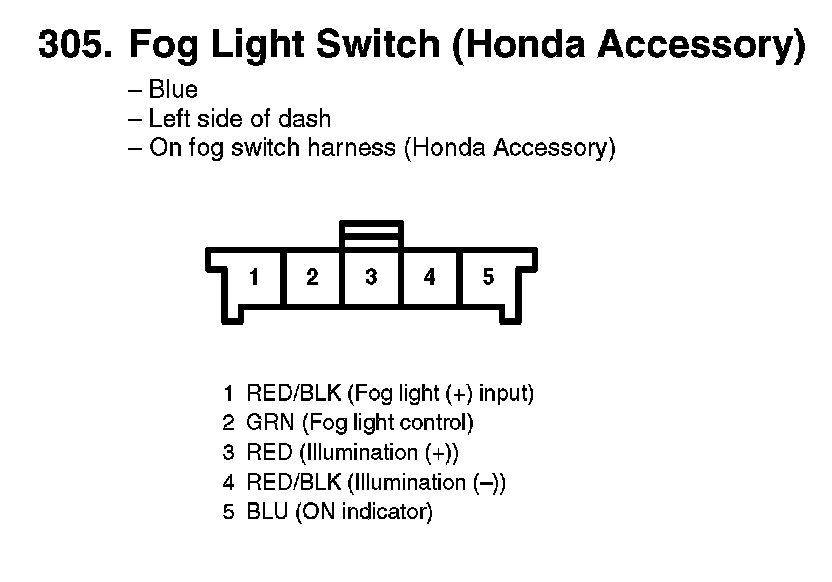

305. Fog Light Switch (Honda Accessory):
