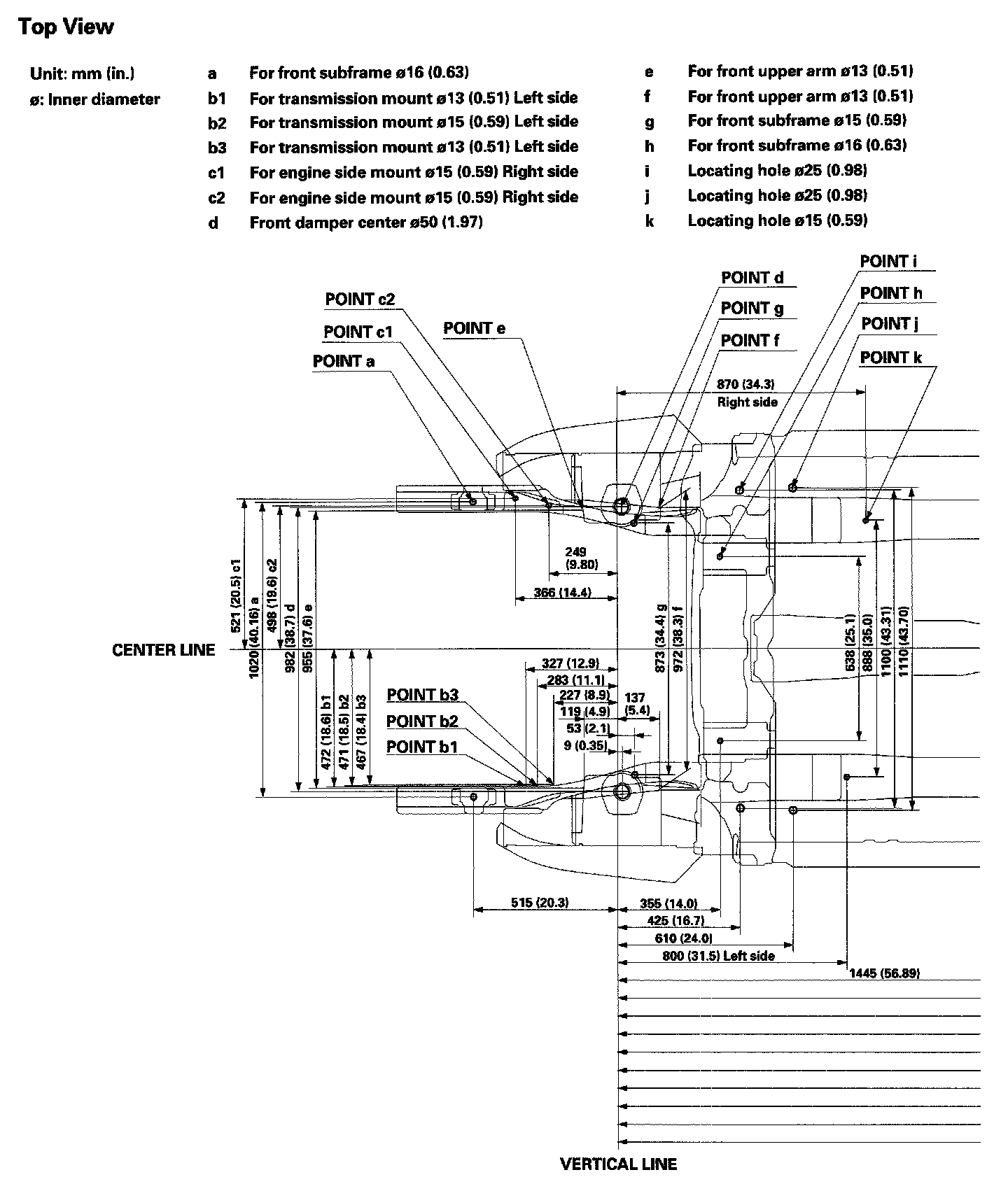

Frame Repair Chart - Top View Part 1 Of 2:
Frame Repair Chart - Top View Part 2 Of 2:

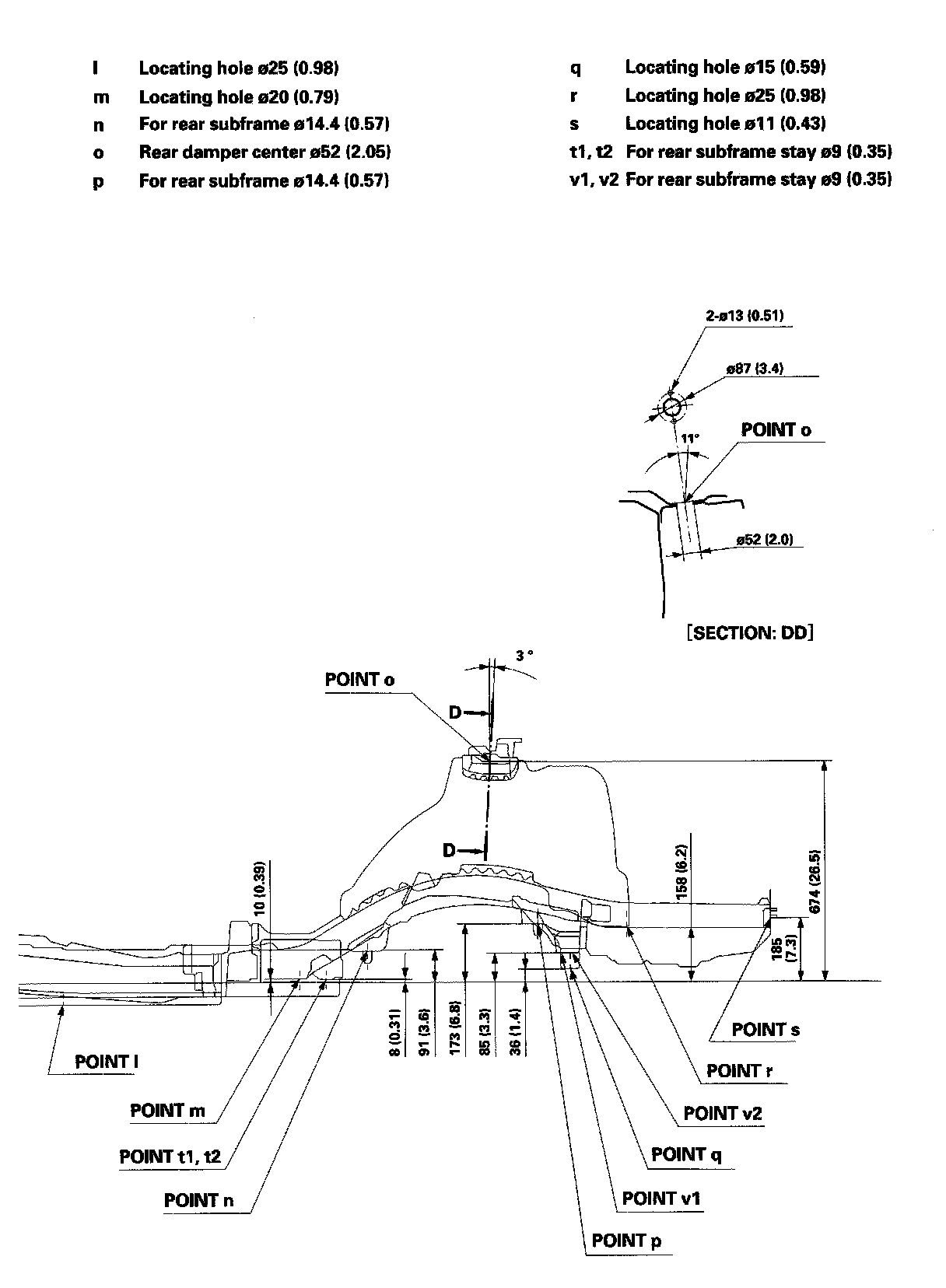

Frame Repair Chart - Side View Part 1 Of 2:
Frame Repair Chart - Side View Part 2 Of 2:
