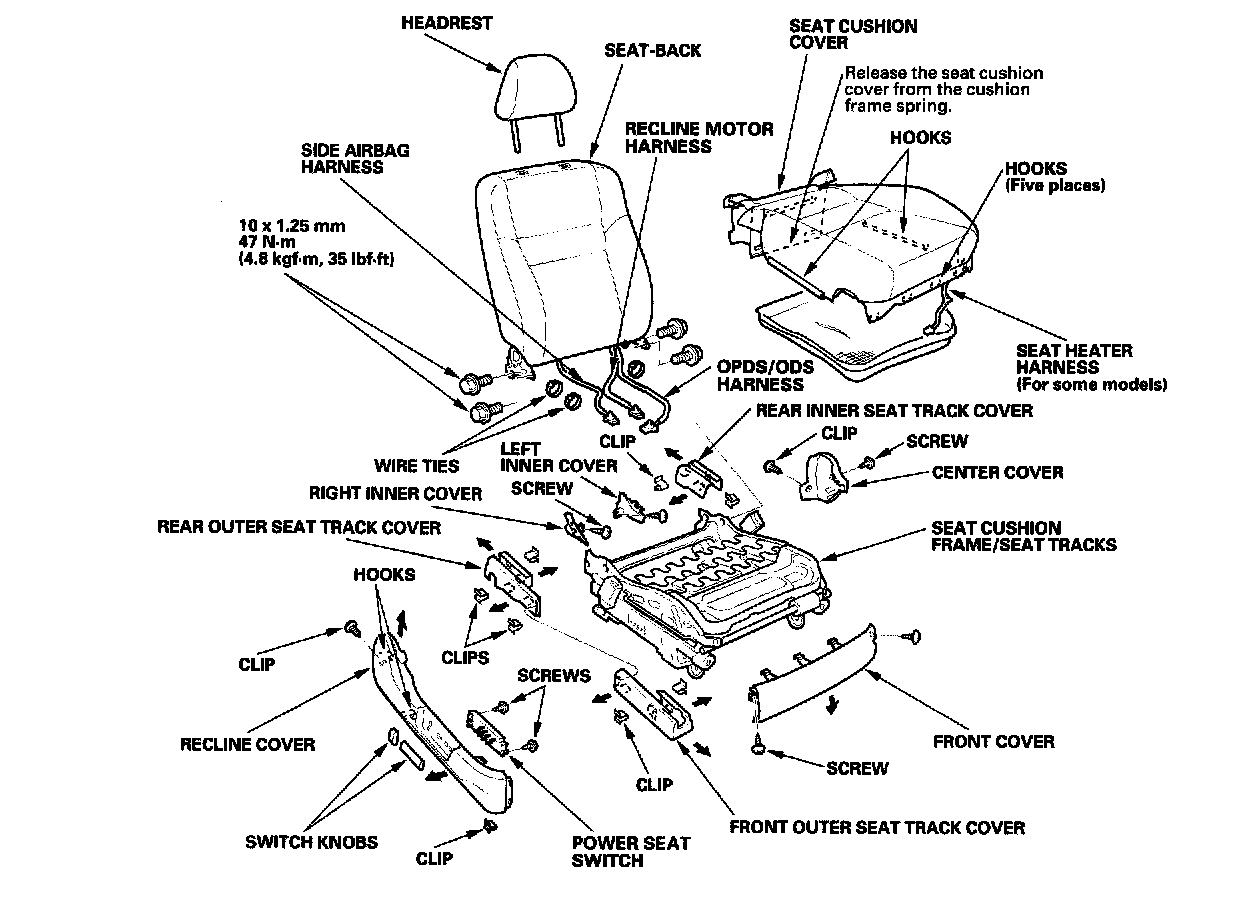

Front Seat Disassembly/Reassembly - 4-Way power
Front Seat Disassembly/Reassembly - 4-Way PowerSpecial Tools Required
KTC trim tool set SOJATP2014
'04-06 Models 4-door
- SRS components are located in this area. Review the SRS component locations and the precautions and procedures, before performing repairs or service.
- '04-05 models: The front passenger's weight sensor (SWS) unit must be calibrated after any of these actions.
- Front passenger's seat replacement (including any seat components)
- Replacement of the seat weight sensors
- Replacement of the seat weight sensor unit
- '06 model: The ODS unit must be calibrated after any for this actions.
- Front passenger's seat replacement (including any seat components)
- Replacement of the seat weight sensors
NOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Apply multipurpose grease to the moving parts of the seat track.
- To prevent wrinkles in the seat cushion cover, stretch the material evenly over the pad.
