Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

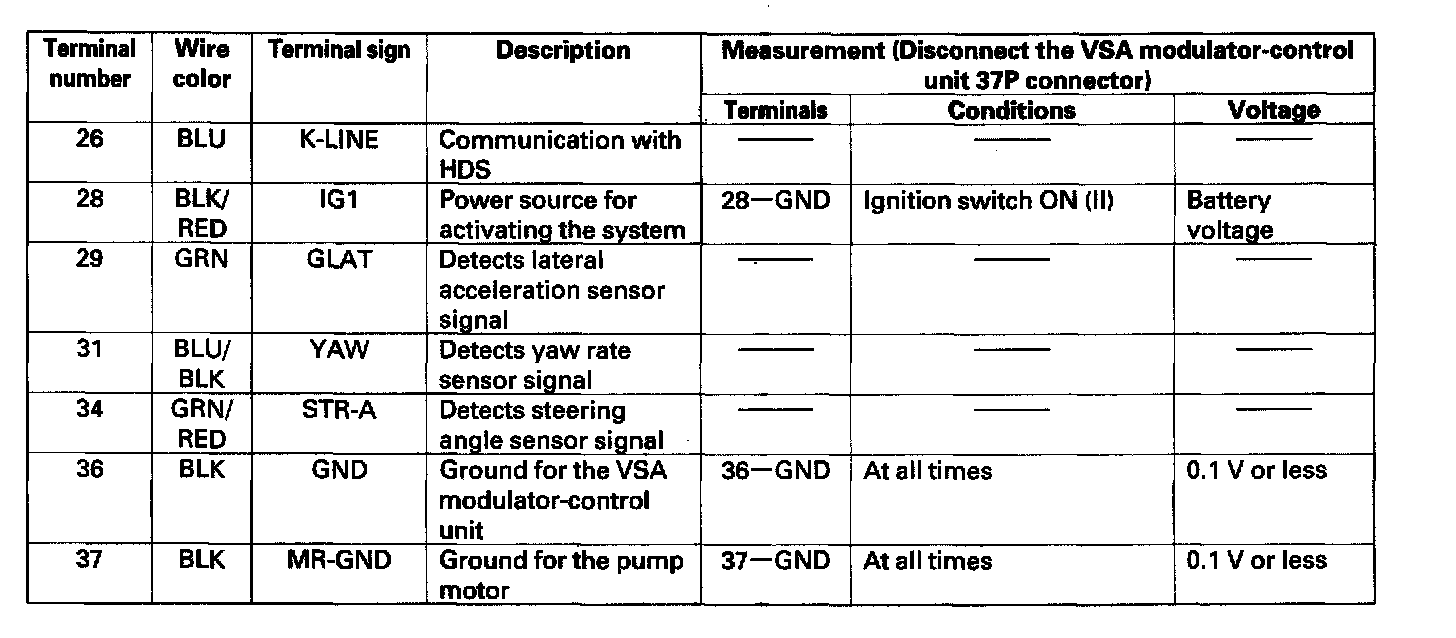

VSA Modulator-Control Unit Inputs and Outputs for 37P Connector (Part 1):
VSA Modulator-Control Unit Inputs and Outputs for 37P Connector (Part 2):
