Control Assembly, HVAC
234. Audio-HVAC Display Module (VP, DX-G, LX, SE; L4: EX):

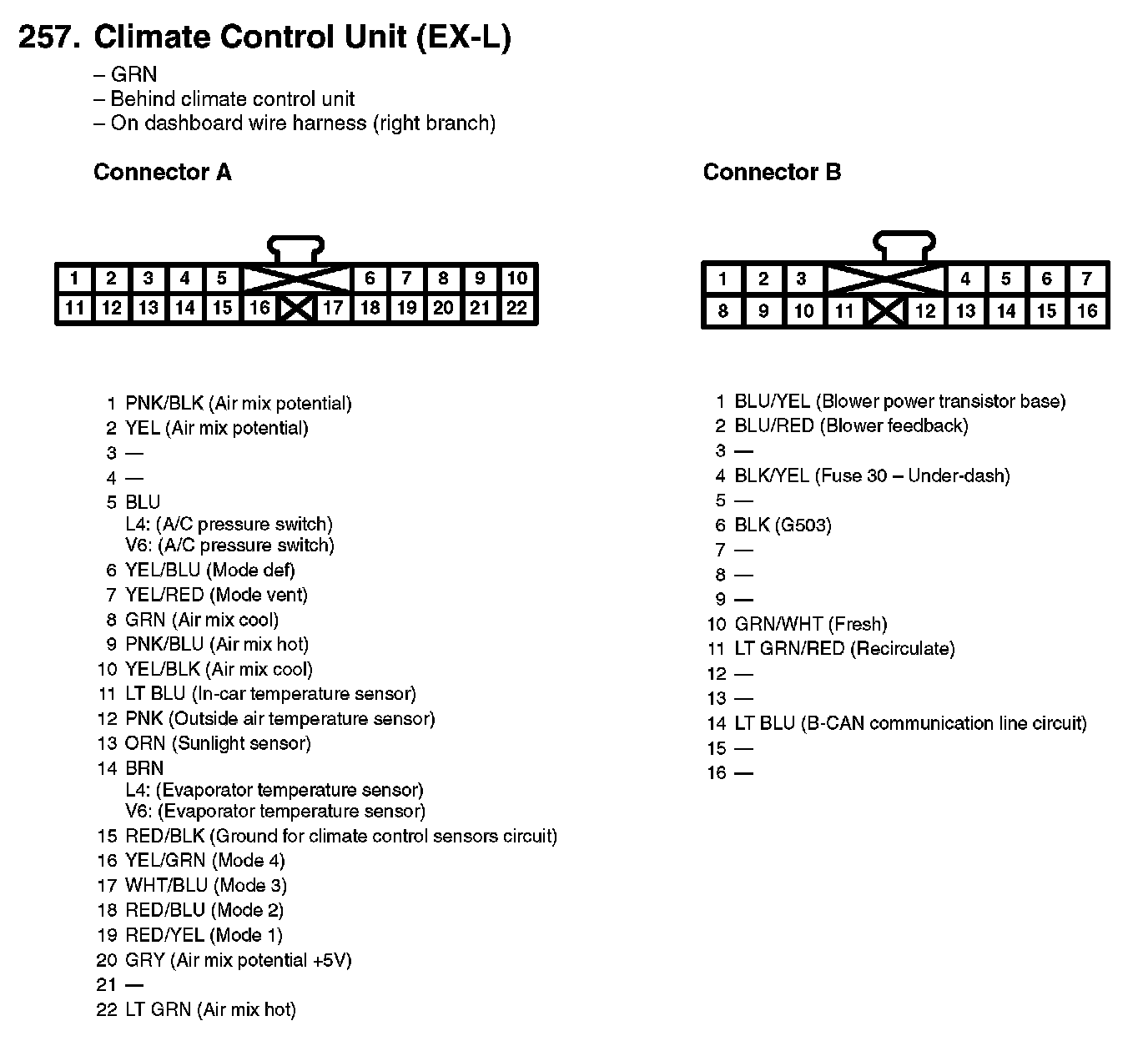

257. Climate Control Unit (EX-L):
