Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Accord V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
System Diagram
System Diagram
183. Power Window Motor, Driver's:
184. Power Window Motor, Front Passenger's:

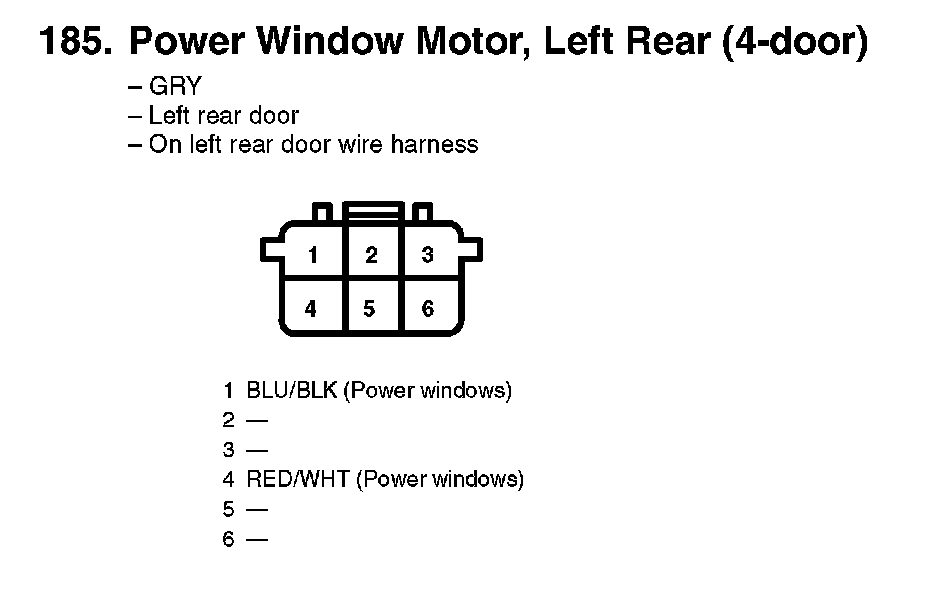

185. Power Window Motor, Left Rear (4-door):
186. Power Window Motor, Right Rear (4-door):
