Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Accord V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
Speaker
91. Speaker, Driver's Door:
92. Speaker, Front Passenger's Door:

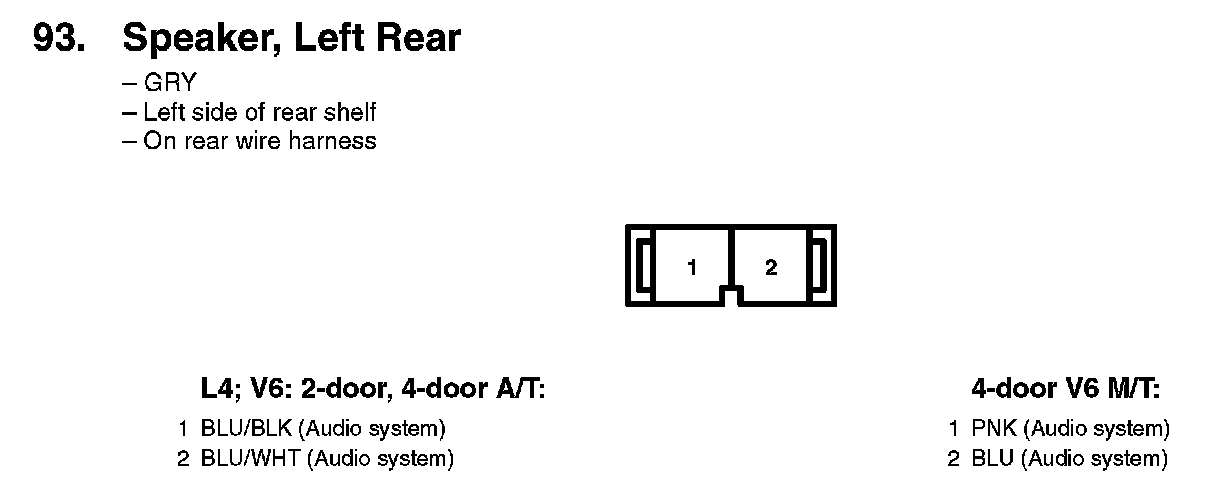

93. Speaker, Left Rear:

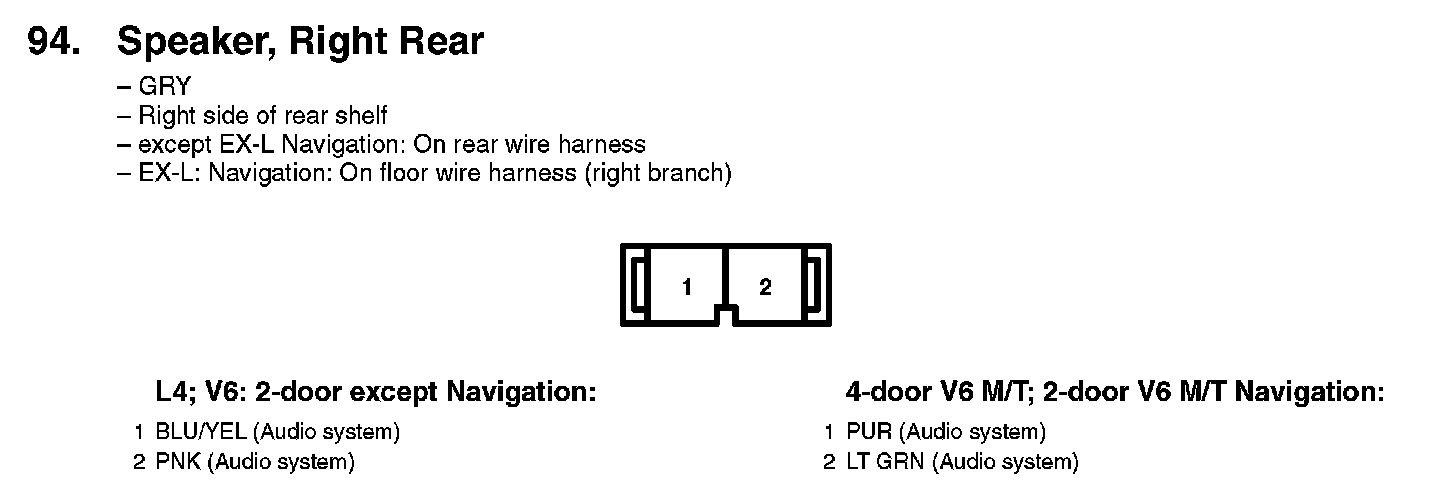

94. Speaker, Right Rear:
100. Tweeter, Left:

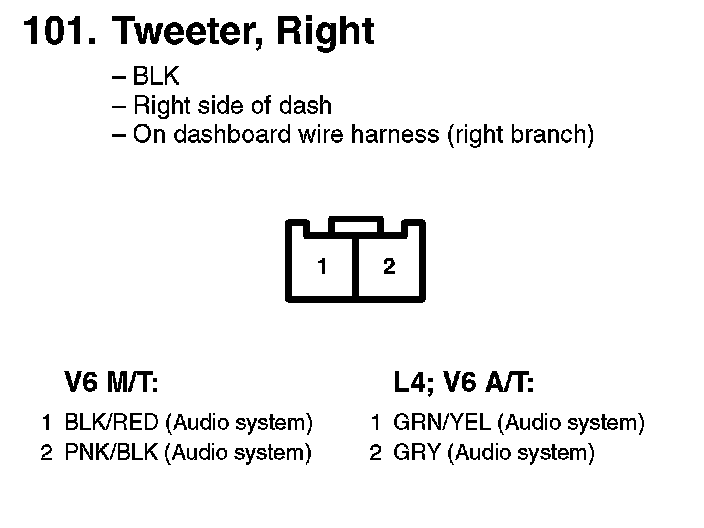

101. Tweeter, Right:
