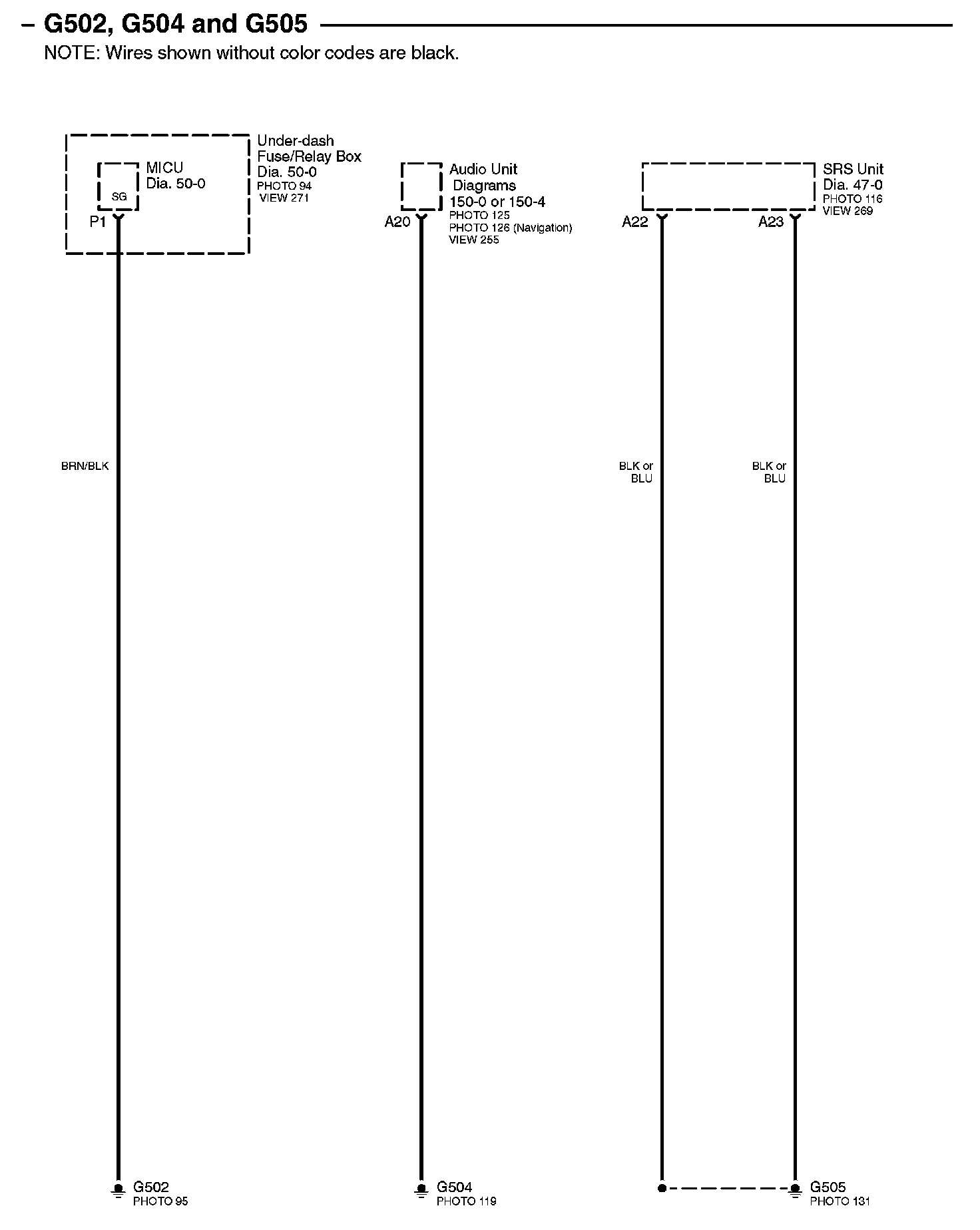

Diagram Set 14 (Ground Distribution)

Diagram 14-2:

Diagram 14-3:

Diagram 14-4:

Diagram 14-5:

Diagram 14-6a:

Diagram 14-6b:

Diagram 14-7a:

Diagram 14-7b:

Diagram 14-8:

Diagram 14-9:

Diagram 14-10:

Diagram 14-11:

Diagram 14-12:

Diagram 14-13a:

Diagram 14-13b:

Diagram 14-14:

Diagram 14-15a:

Diagram 14-15b:
