CKP Sensor Subharness

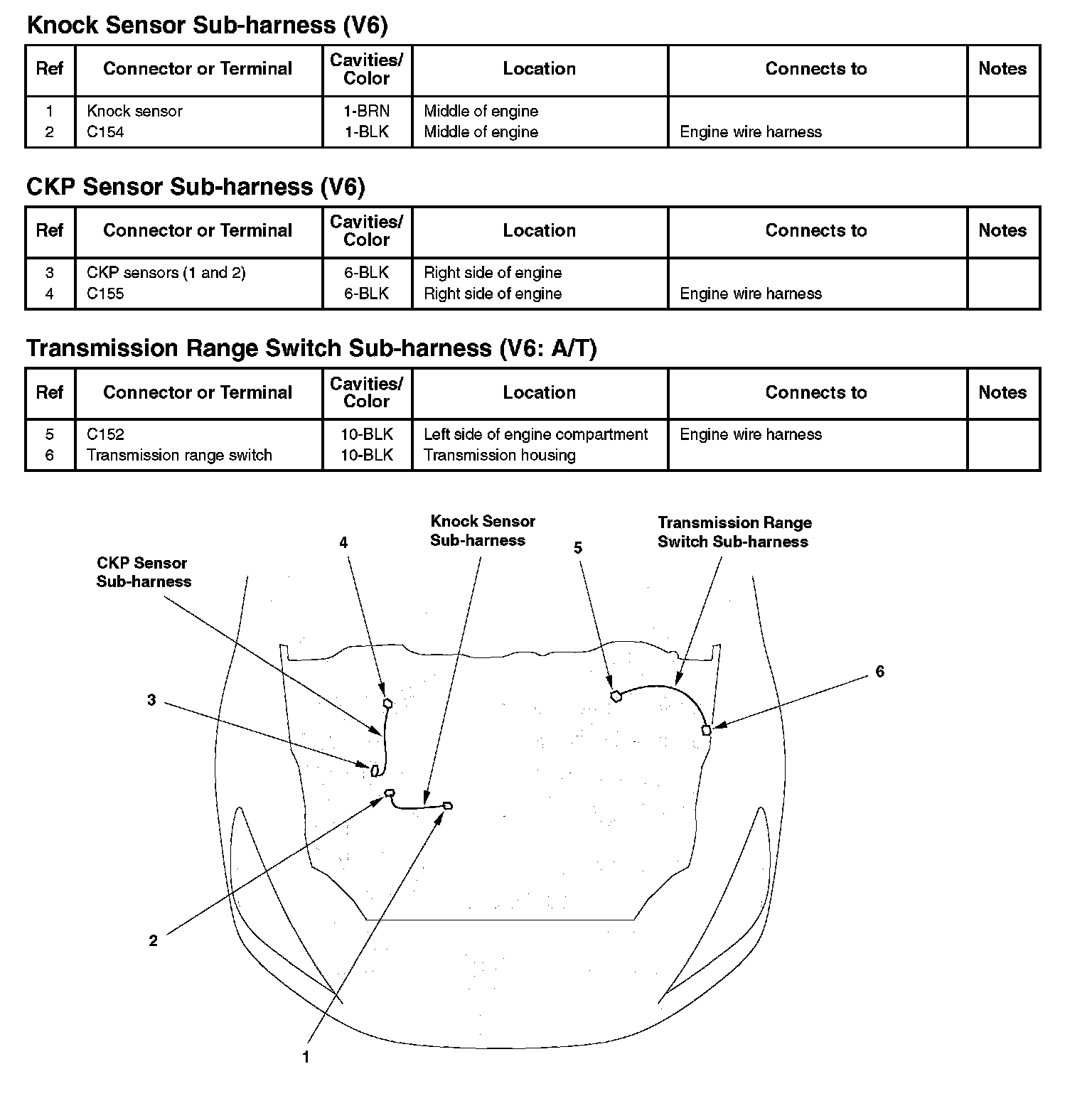

Knock Sensor Sub-harness (V6)/CKP Sensor Sub-harness (V6)/Transmission Range Switch Sub-harness (V6: A/T):

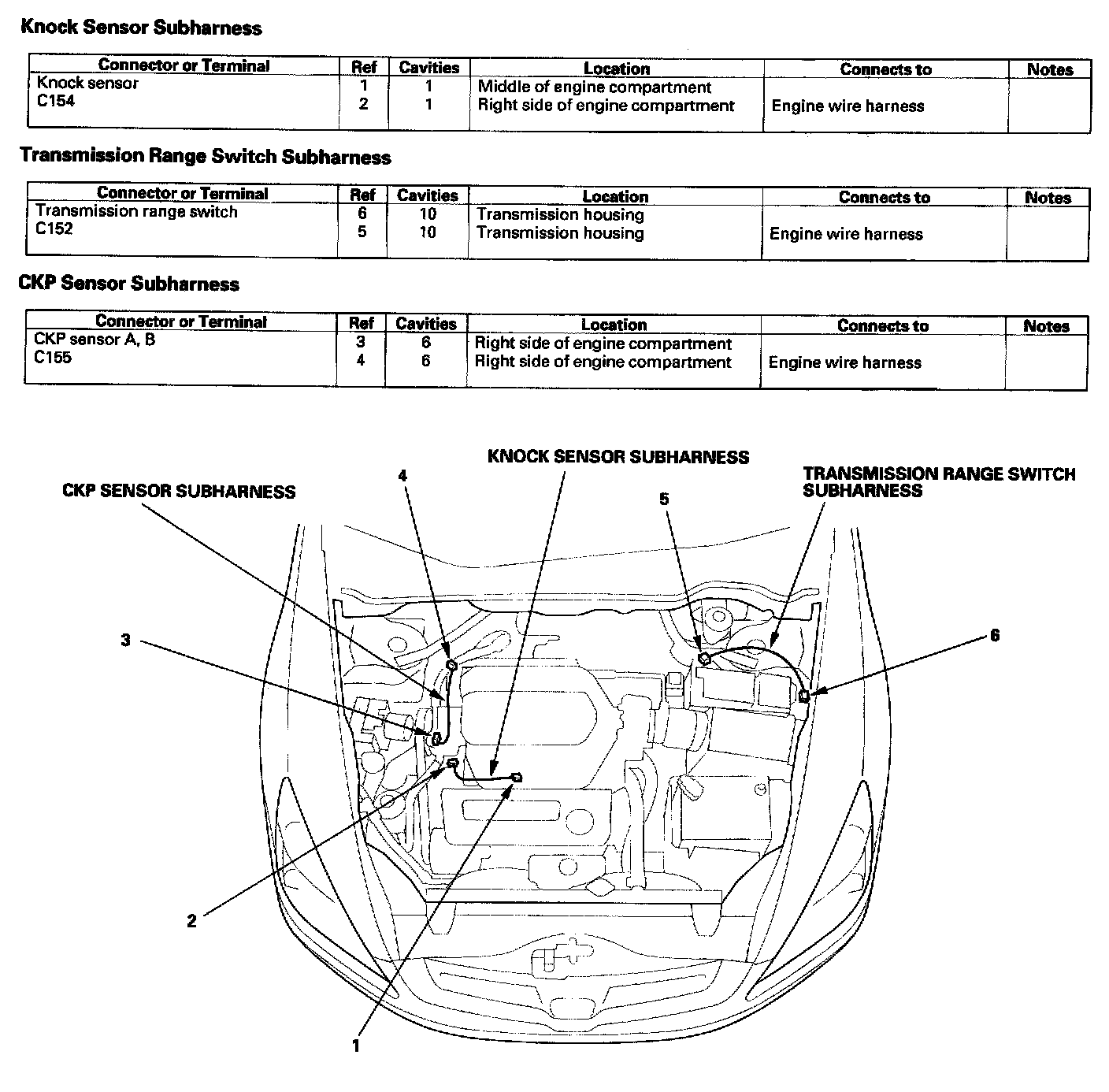

Knock Sensor Subharness/Transmission Range Switch Subharness/CKP Sensor Subharness:
