Part 2 of 2

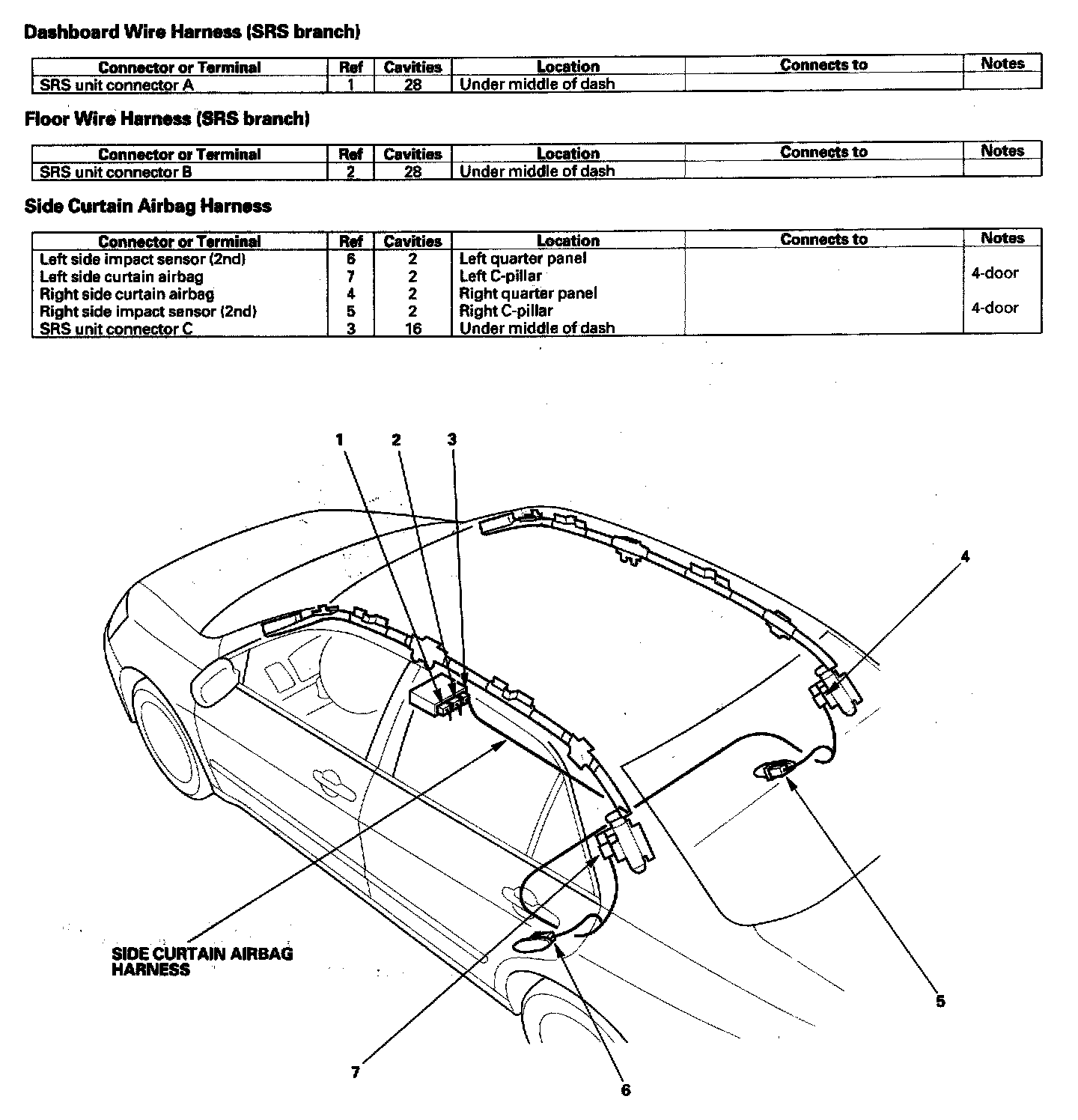

Dashboard Wire Harness (SRS branch)/Floor Wire Harness (SRS branch)/Side Curtain Airbag Harness:



Harness Location View:



Dashboard Wire Harness (SRS Branch)/floor Wire Harness (SRS Branch)/de Curtain Airbag Harness:
