Floor Wire Harness (Left Branch)
>>
2-Door
2-Door

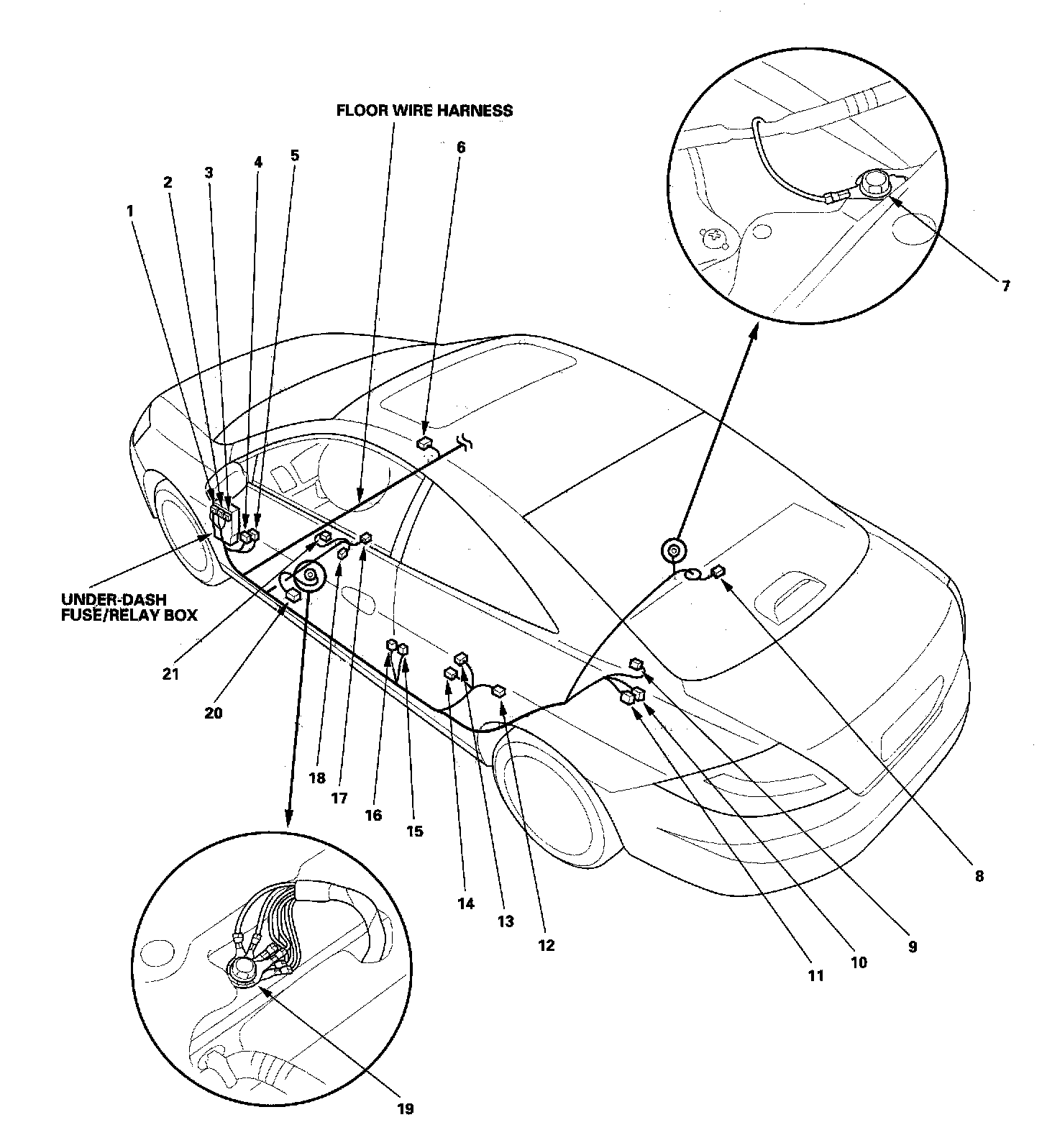

Harness Location View:
Floor Wire Harness (Left Branch)(2-door):
