Front Engine Compartment Wire Harness (left branch)
Front Engine Compartment Wire Harness (left branch)

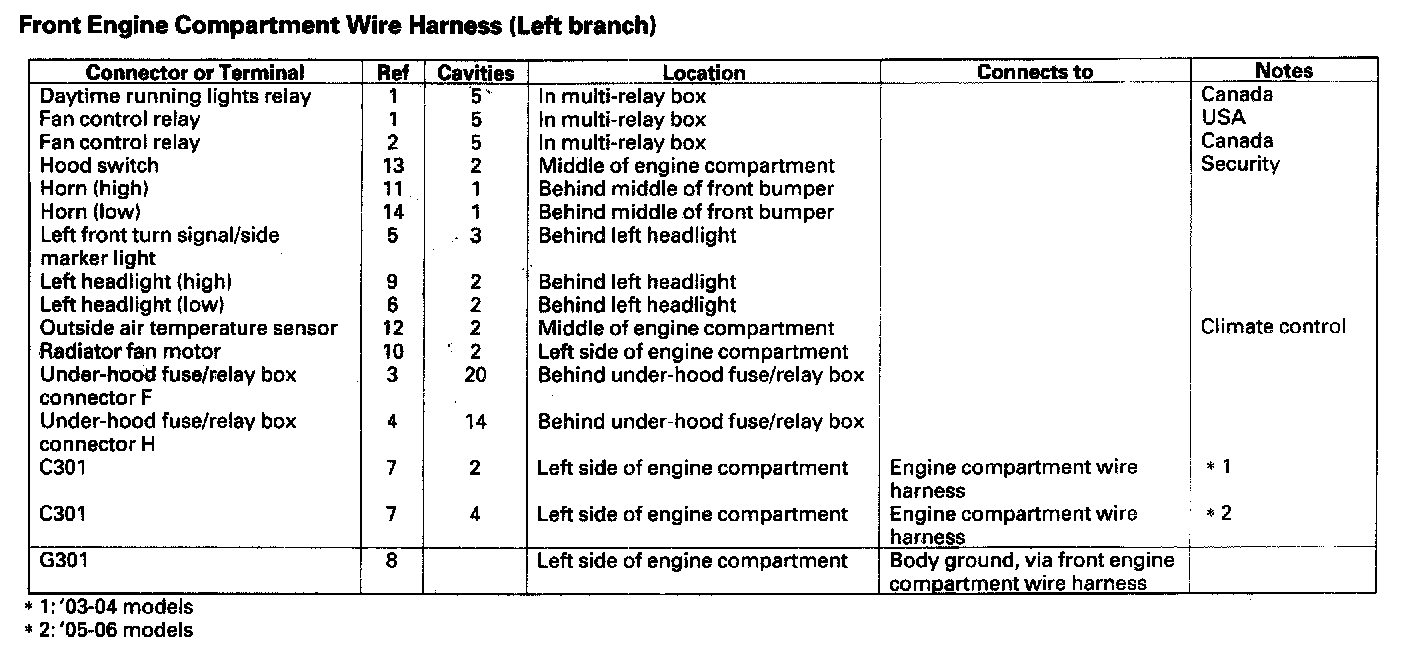

Harness Location View:

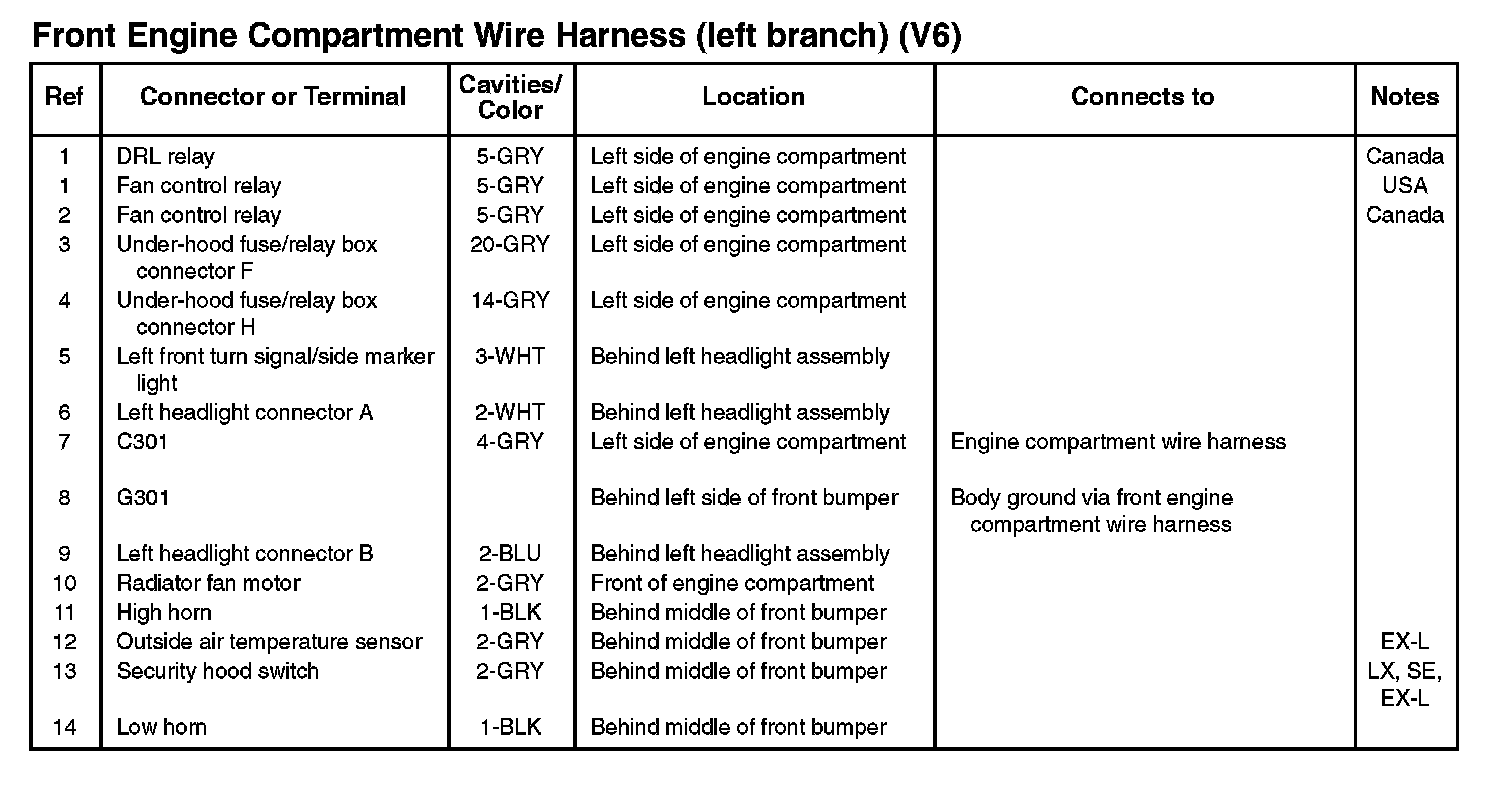

Front Engine Compartment Wire Harness (left branch) (V6):
Harness Location View:
Front Engine Compartment Wire Harness (Left Branch):
