Dashboard Side Vent
Dashboard Side Vent Removal/InstallationSpecial Tools Required
KTC trim tool set SOJATP2014
Driver's
NOTE:
- Take care not to scratch the dashboard and related parts.
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Remove the driver's dashboard lower cover.

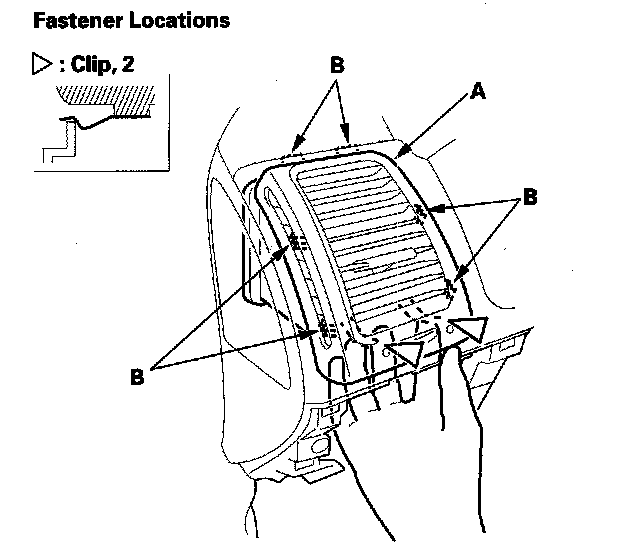

2. Push up the lower clips by hand, then push out the driver's side vent (A) by releasing the upper and side tabs (B).
3. Reinstall the tab portions of the vent first, then push the clip portions into place securely.
Passenger's
NOTE:
- Take care not to scratch the dashboard and related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Detach the hook of the glove box damper, then lower the glove box.
2. Carefully insert a flat-tip screwdriver under the clip, and push it up.

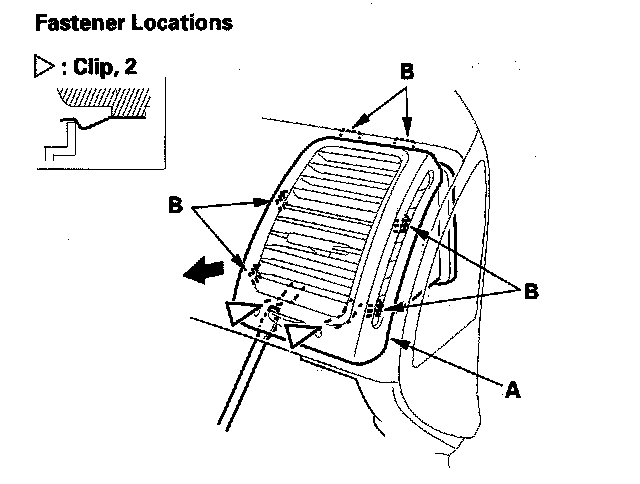

3. Pull out along the edge of the passenger's side vent (A) by hand to release the lower clips and the upper and side tabs (B). Then remove the vent.
4. Reinstall the tab portions of the vent first, then push the clip portions into place securely.
