Upper Panel
Upper Panel Removal/InstallationSpecial Tools Required
Upper panel/vent removal tool 07AAC-SDAA100
NOTE: Take care not to scratch the dashboard and related parts.

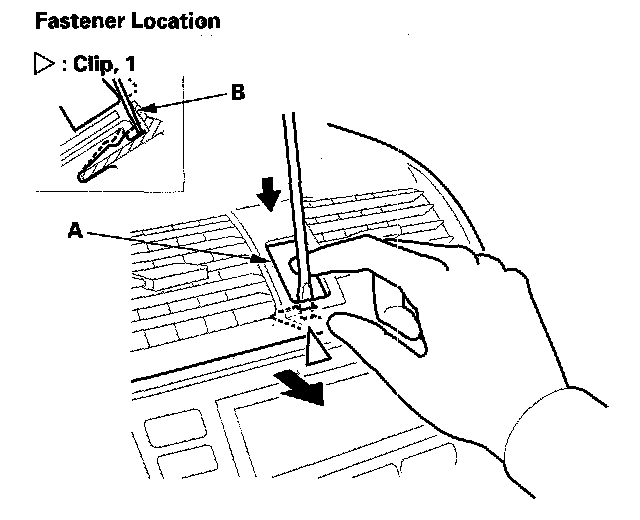

1. Push the hazard warning switch button (A). Carefully insert a flat-tip screwdriver into the slot (B) below the button, and push down on the center clip.
With the special tool and a flat-tip screwdriver

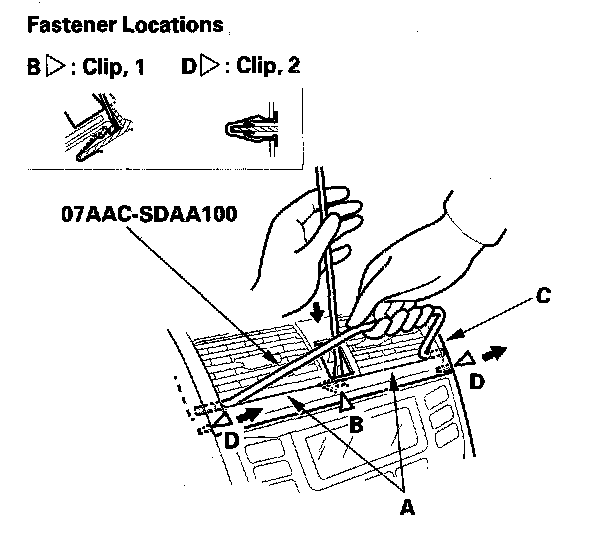

2. Set both ends of the special tool in the center vent openings (A) as shown. While pressing the center clip (B) down, pull the upper panel (C) back with the tool to detach the clips (D).
With two flat-tip screwdrivers

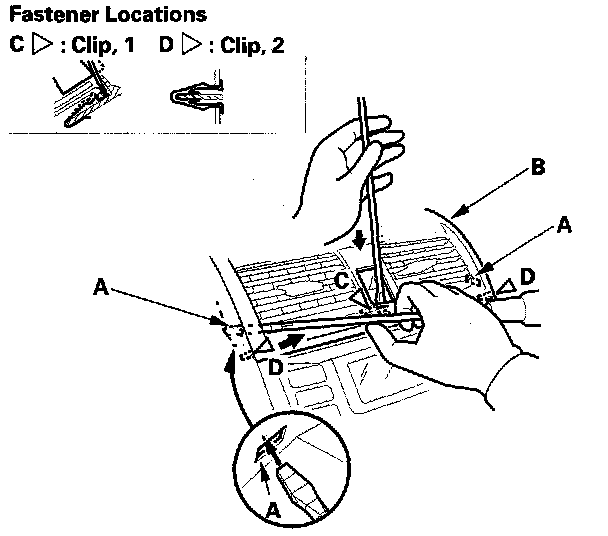

3. Carefully insert a flat-tip screwdriver wrapped with tape in to the slot (A) on one side of the upper panel (B). While pressing down on the center clip (C), carefully pull out on the side of the panel to detach the clips (D). Repeat this operation on the other side of the panel.

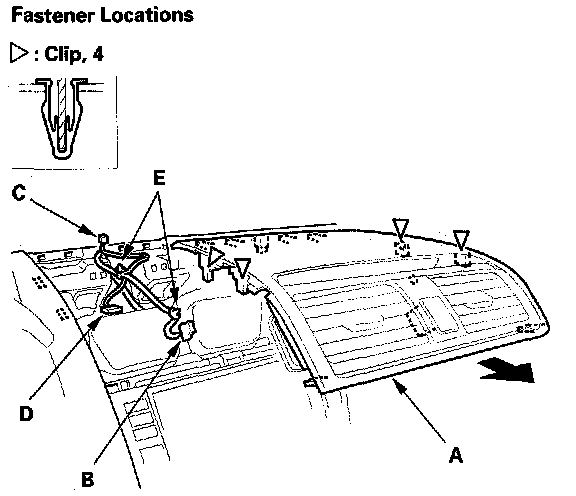

4. Pull the upper panel (A) in the direction shown to release the remaining clips, disconnect the hazard warning switch connector (B), and if equipped, sunlight sensor connector (C) and navigation sub display connector (D). Detach the harness clips (E), then remove the upper panel.
5. Install the panel in the reverse order of removal, and make sure each connector is plugged in properly.
