Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

'06 model

1. Open the trunk lid.
2. Remove the trunk lid trim.
- 2 door
- 4 door

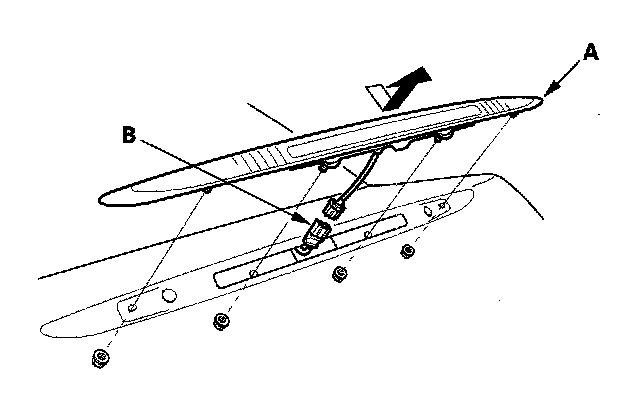

3. Remove the four nuts and the high mount brake light (A).
4. Disconnect the 2P connector (B) from the high mount brake light.
5. Install the light in the reverse order of removal.
