Multiple Junction Connector: Diagrams

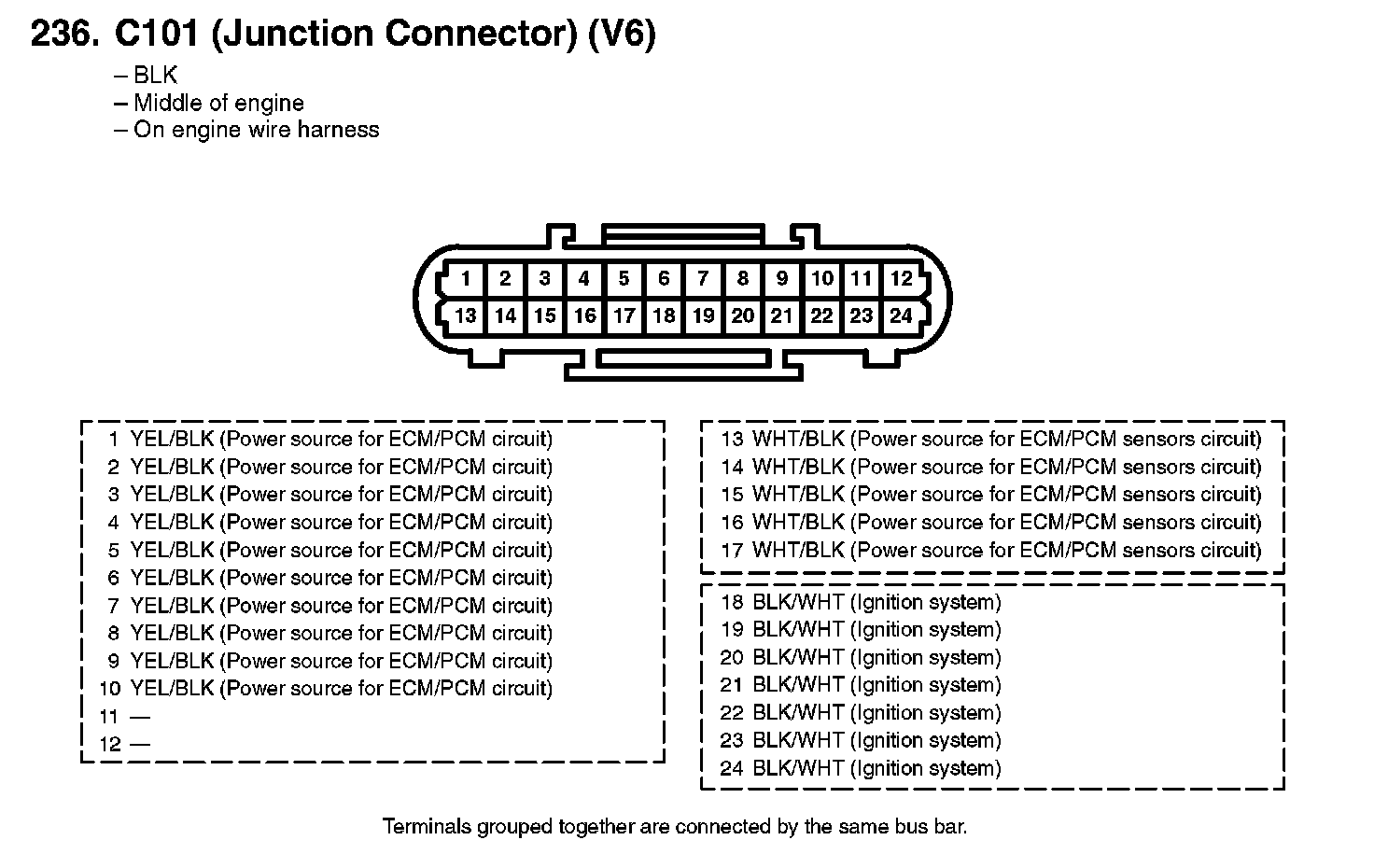

236. C101 (Junction Connector) (V6):

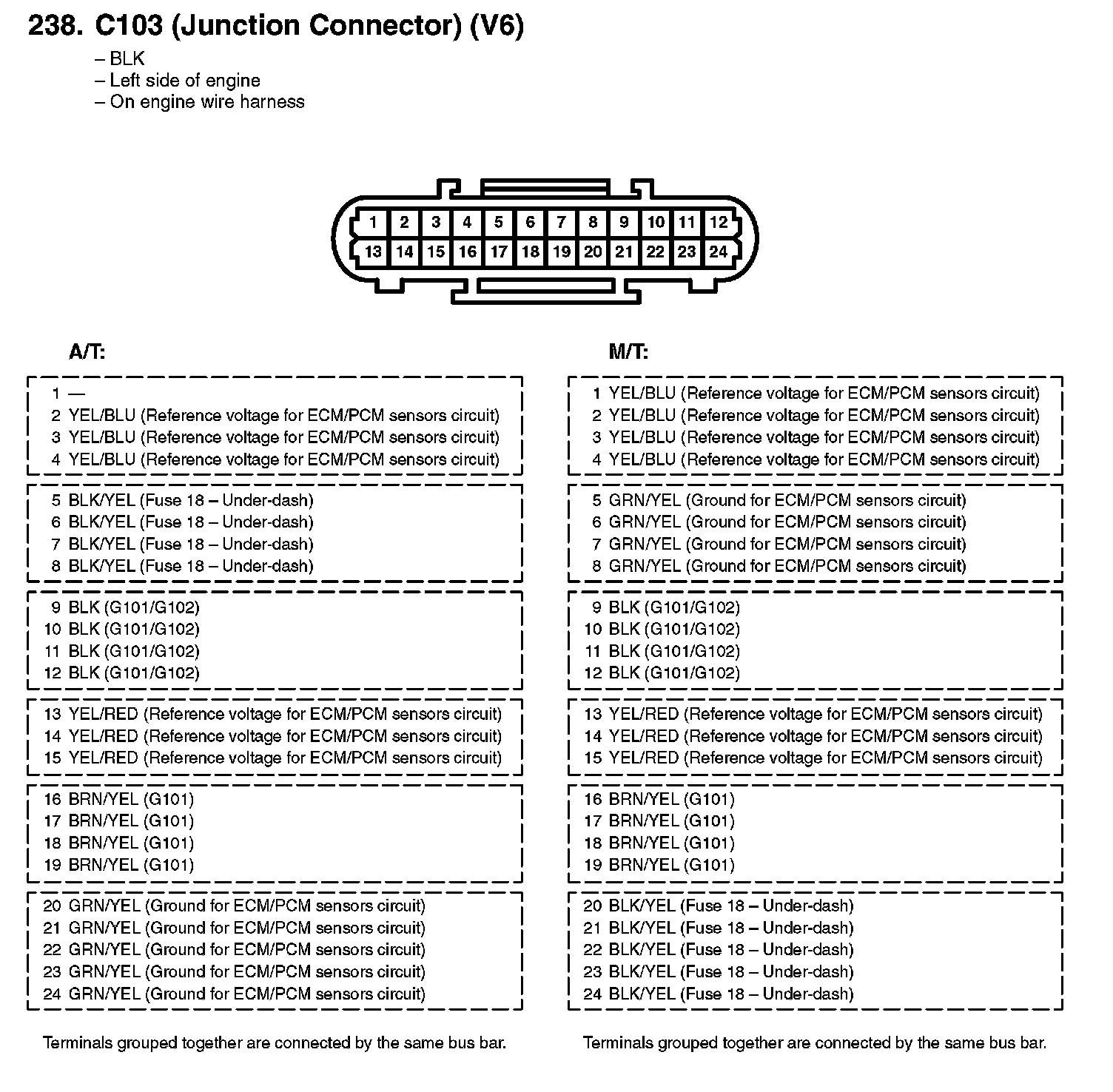

238. C103 (Junction Connector) (V6):

241. C404 (Junction Connector):

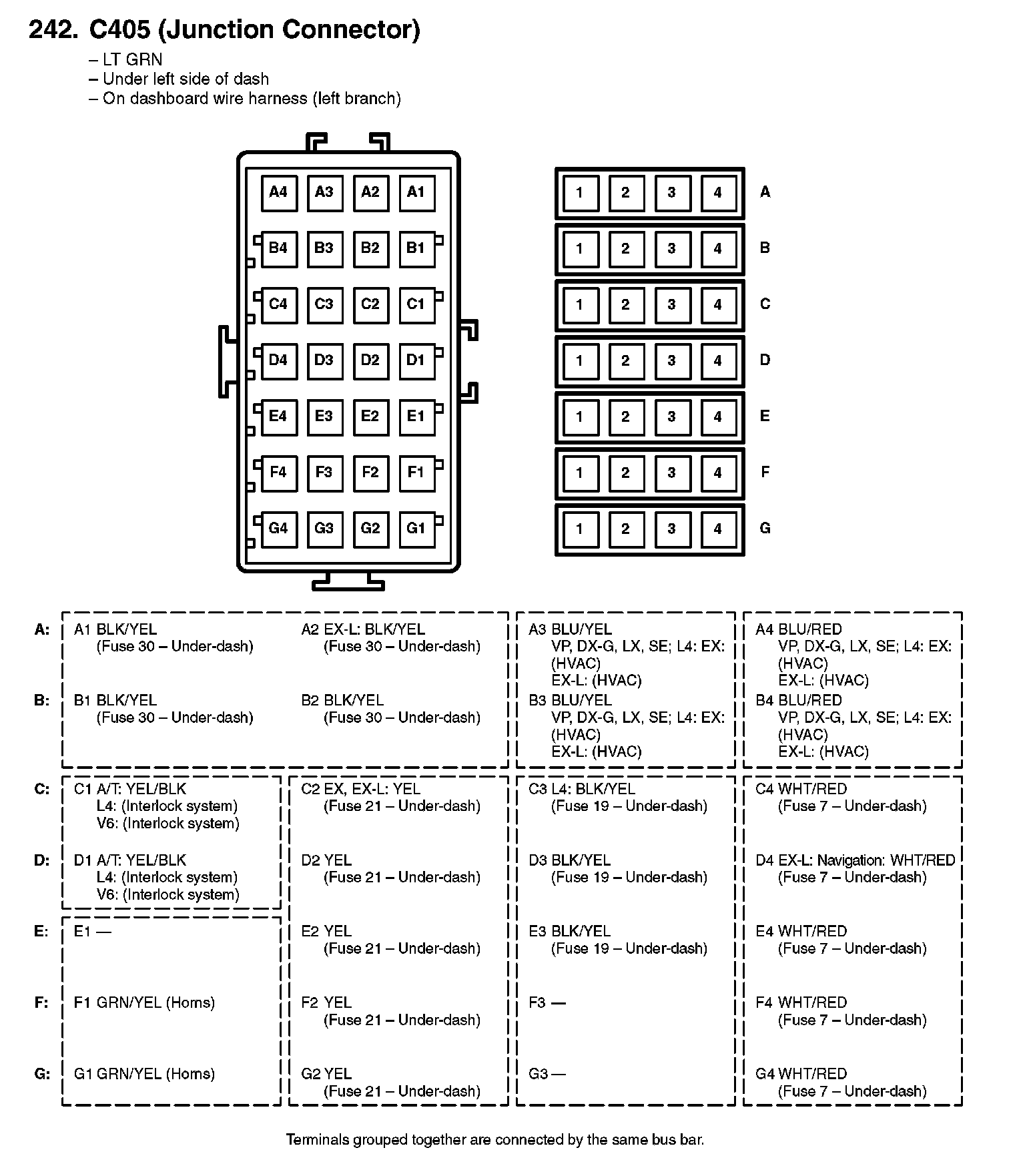

242. C405 (Junction Connector):

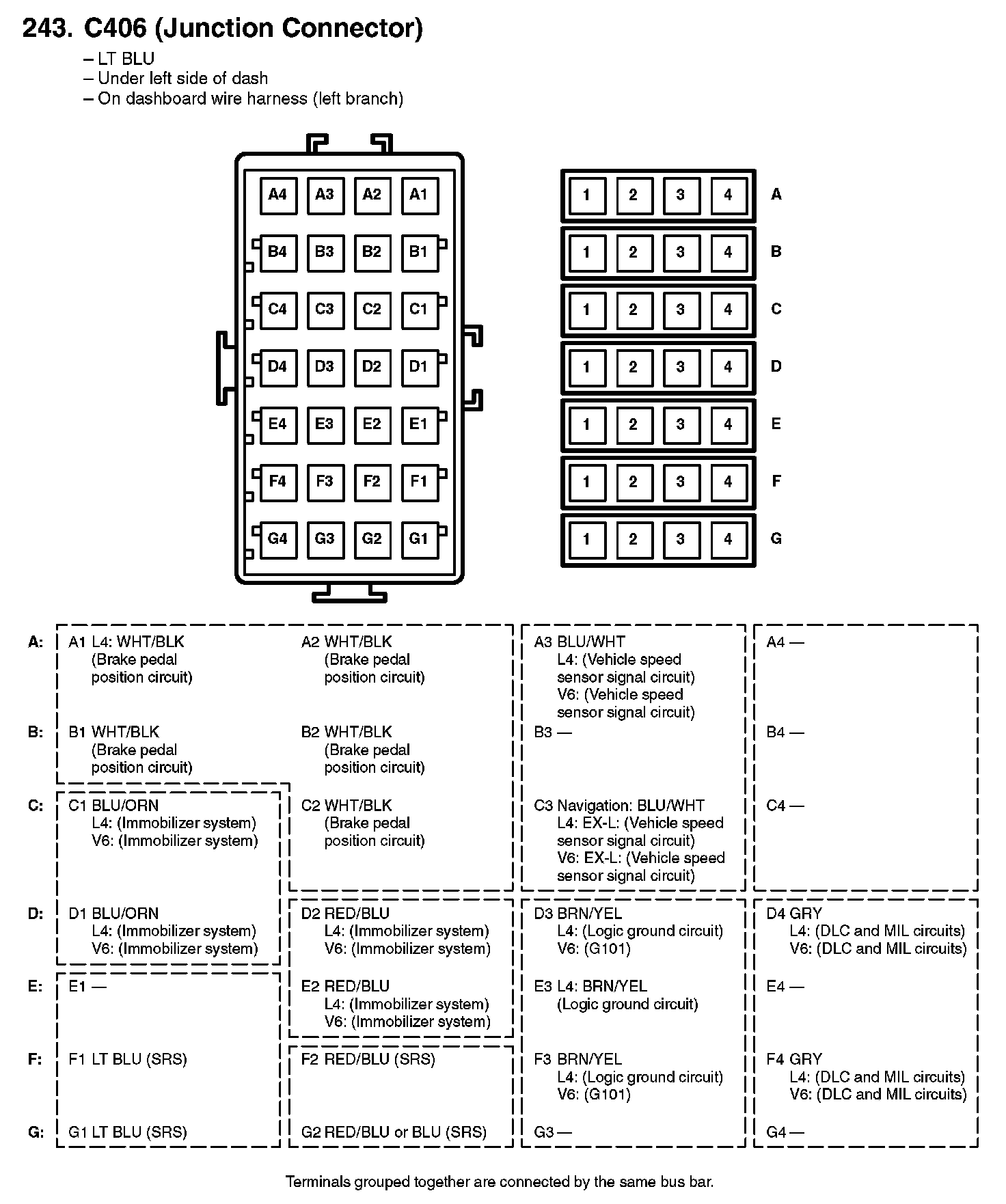

243. C406 (Junction Connector):

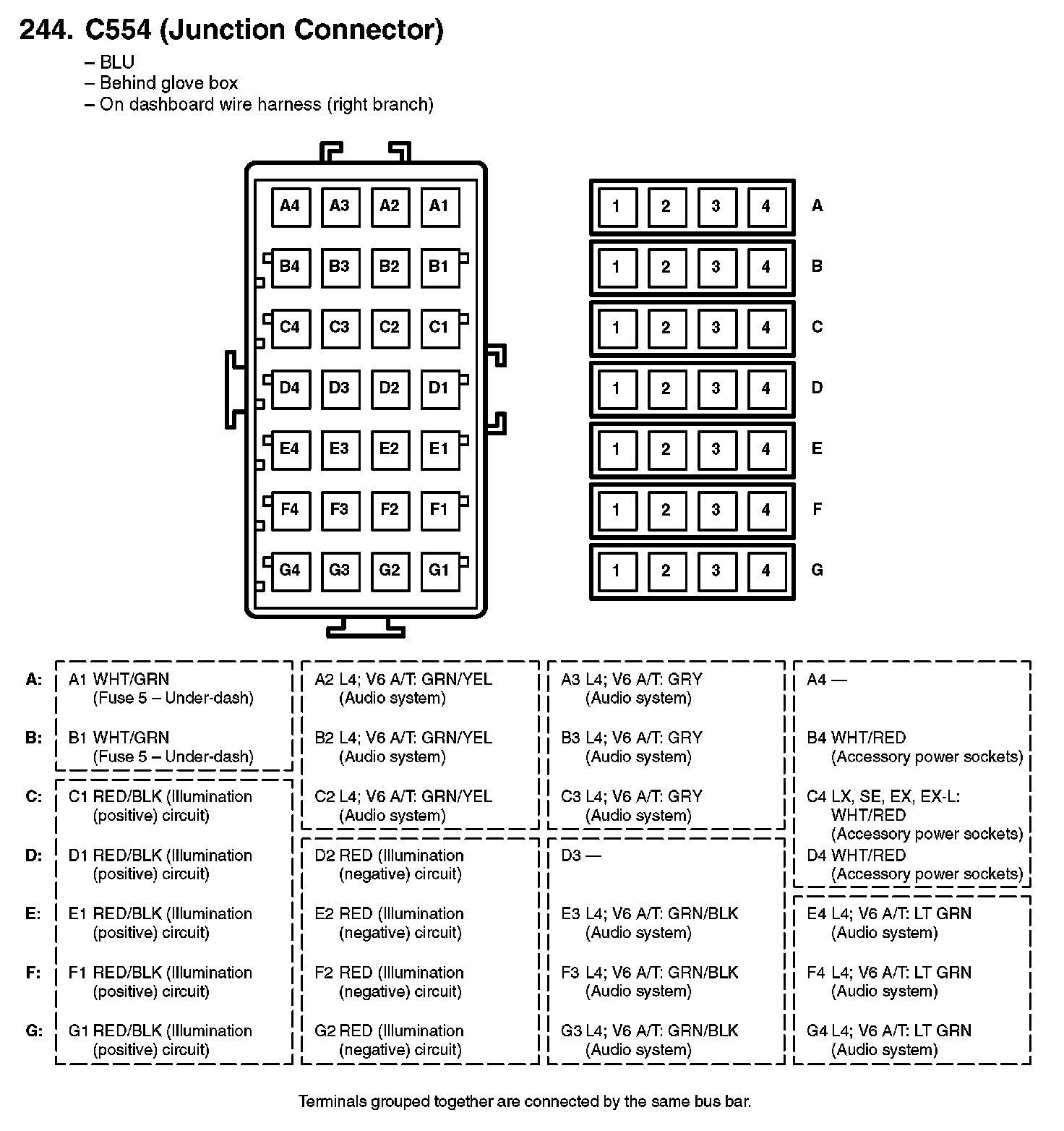

244. C554 (Junction Connector):

245. C555 (Junction Connector):

246. C556 (Junction Connector):

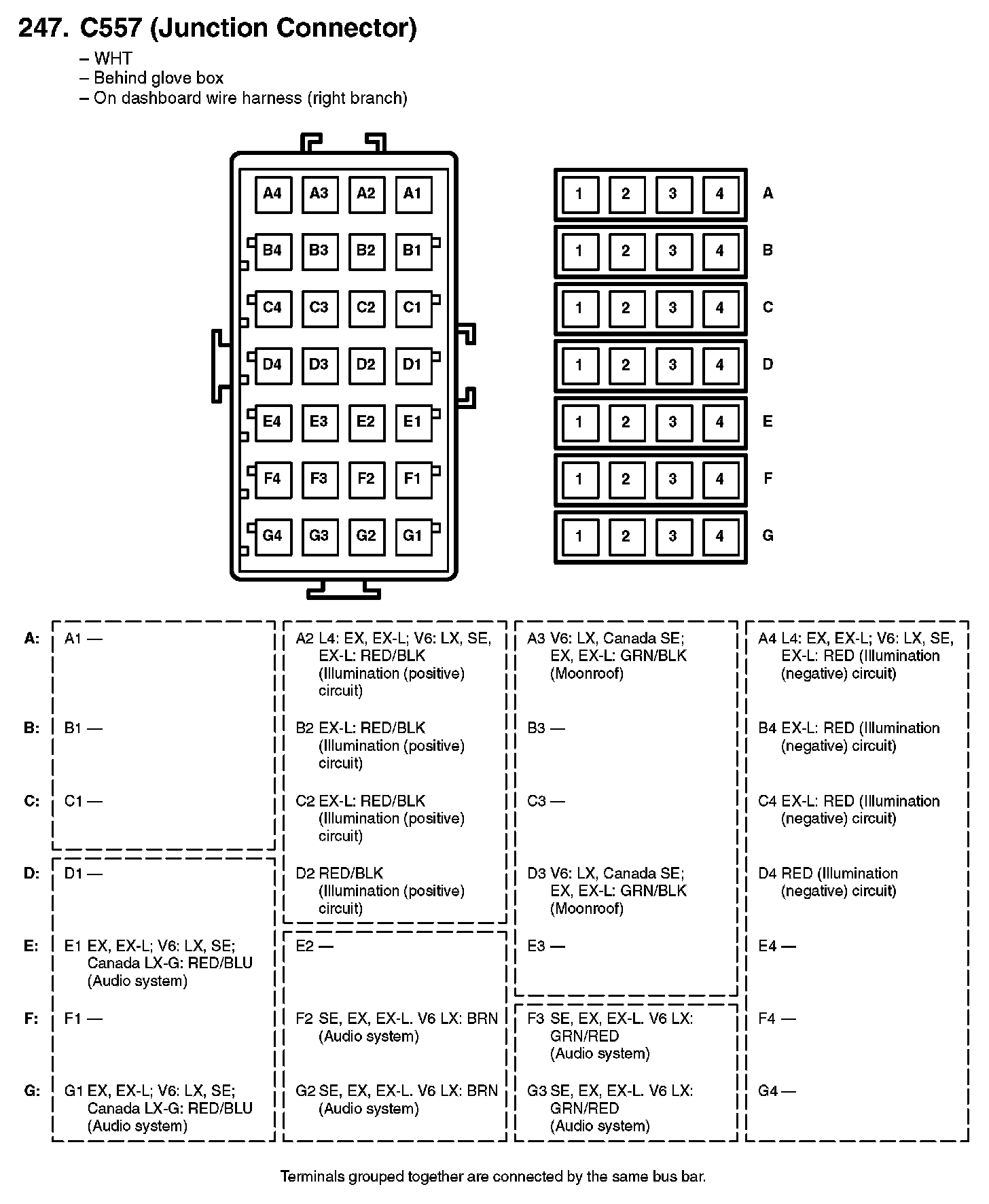

247. C557 (Junction Connector):
