Reopening the SRS Unit Circuit For Diagnosis
Reopening the SRS Unit Circuit For DiagnosisNOTE:

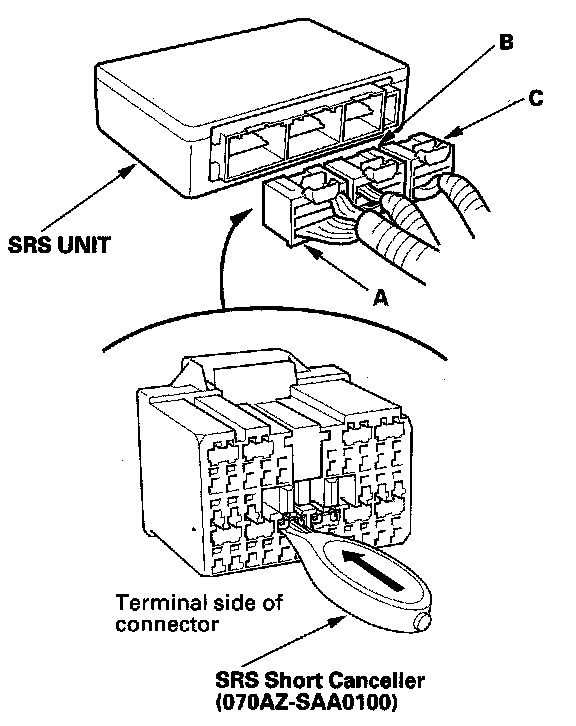

- To prevent damage of the connector cavity, insert the SRS short canceller straight into the cavity from the terminal side.
- Do not use the special tool if it is damaged.
- Make sure to remove the special tool before reconnecting.
When SRS unit connectors A, B, or C are disconnected, a short circuit is created in the connector by its own function to prevent airbag deployment. The circuit may need to be opened when diagnosis is performed on the circuit.

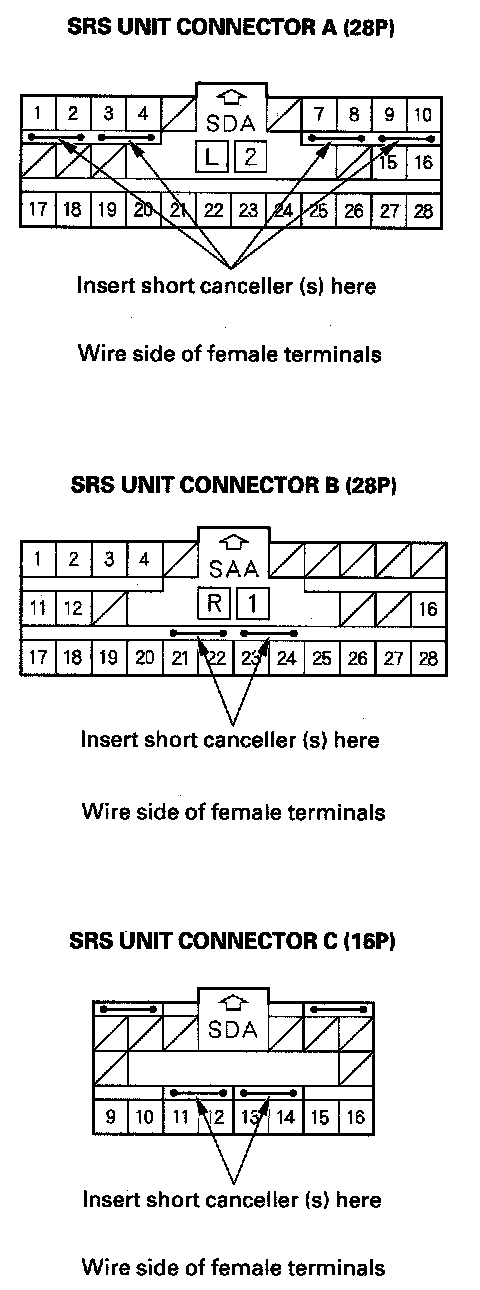

Insert the SRS short canceller (No. 070AZ-SAA0100, short canceller) in the specified cavities when it is necessary to keep the circuit open for diagnosis.
