Wheel Speed Sensor: Diagrams
106. Wheel Speed Sensor, Left Front:

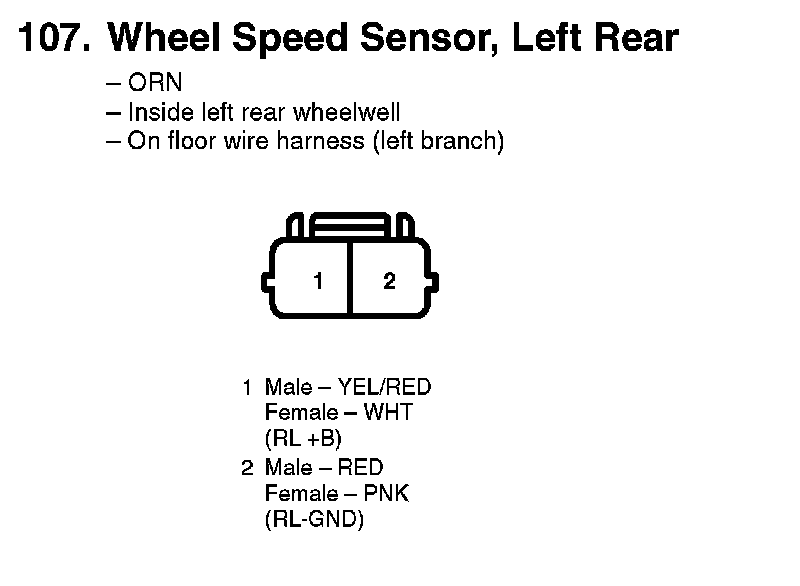

107. Wheel Speed Sensor, Left Rear:
108. Wheel Speed Sensor, Right Front:

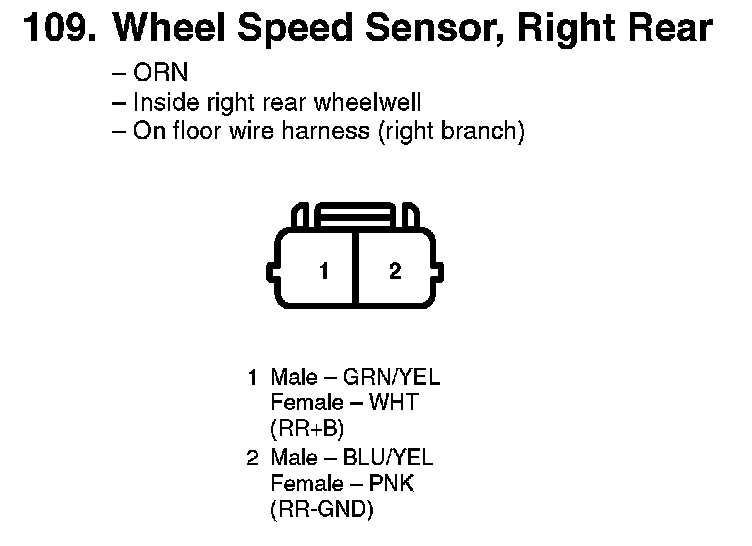

109. Wheel Speed Sensor, Right Rear:
