Standards and Service Limits

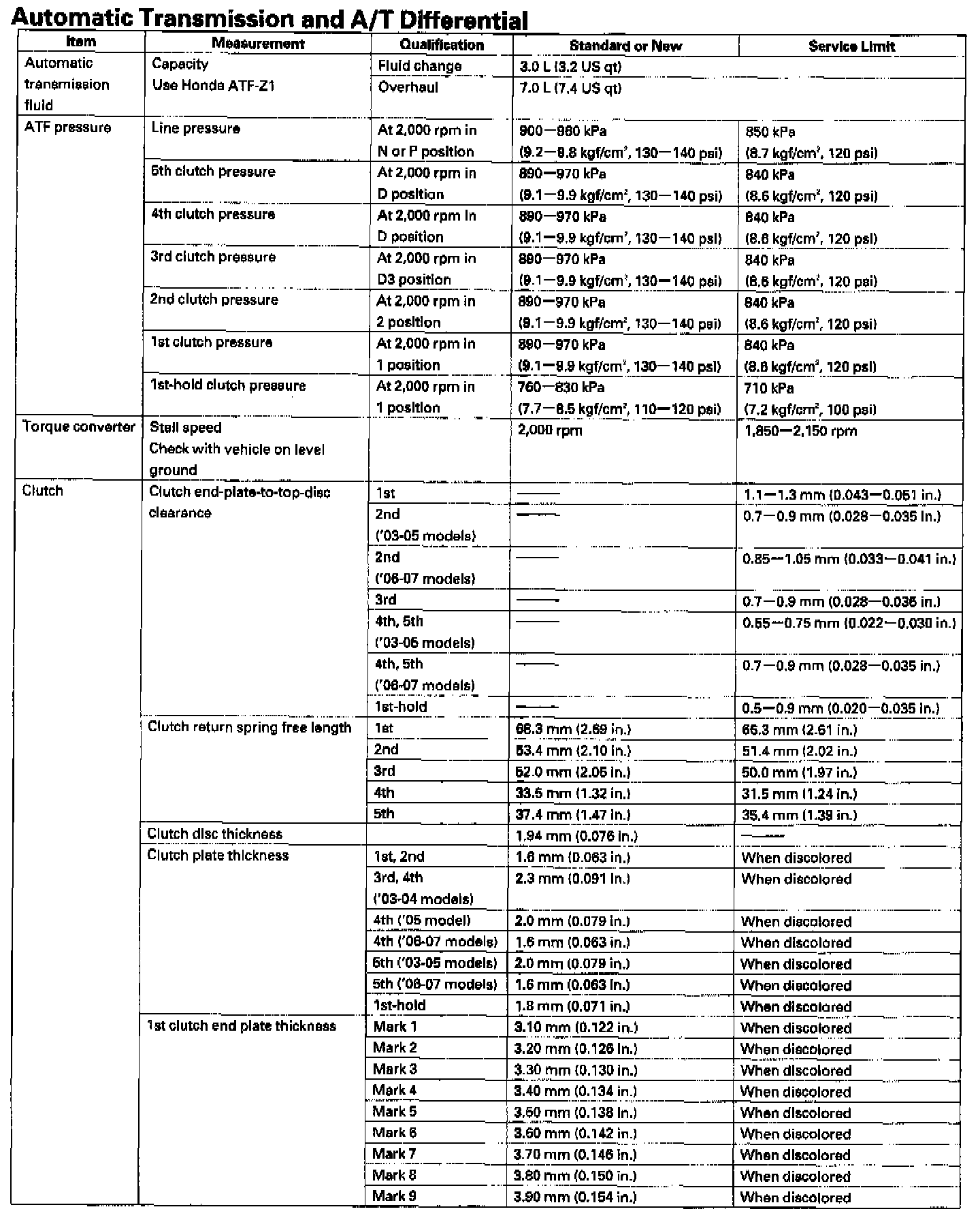

Automatic Transmission And A/T Differential:

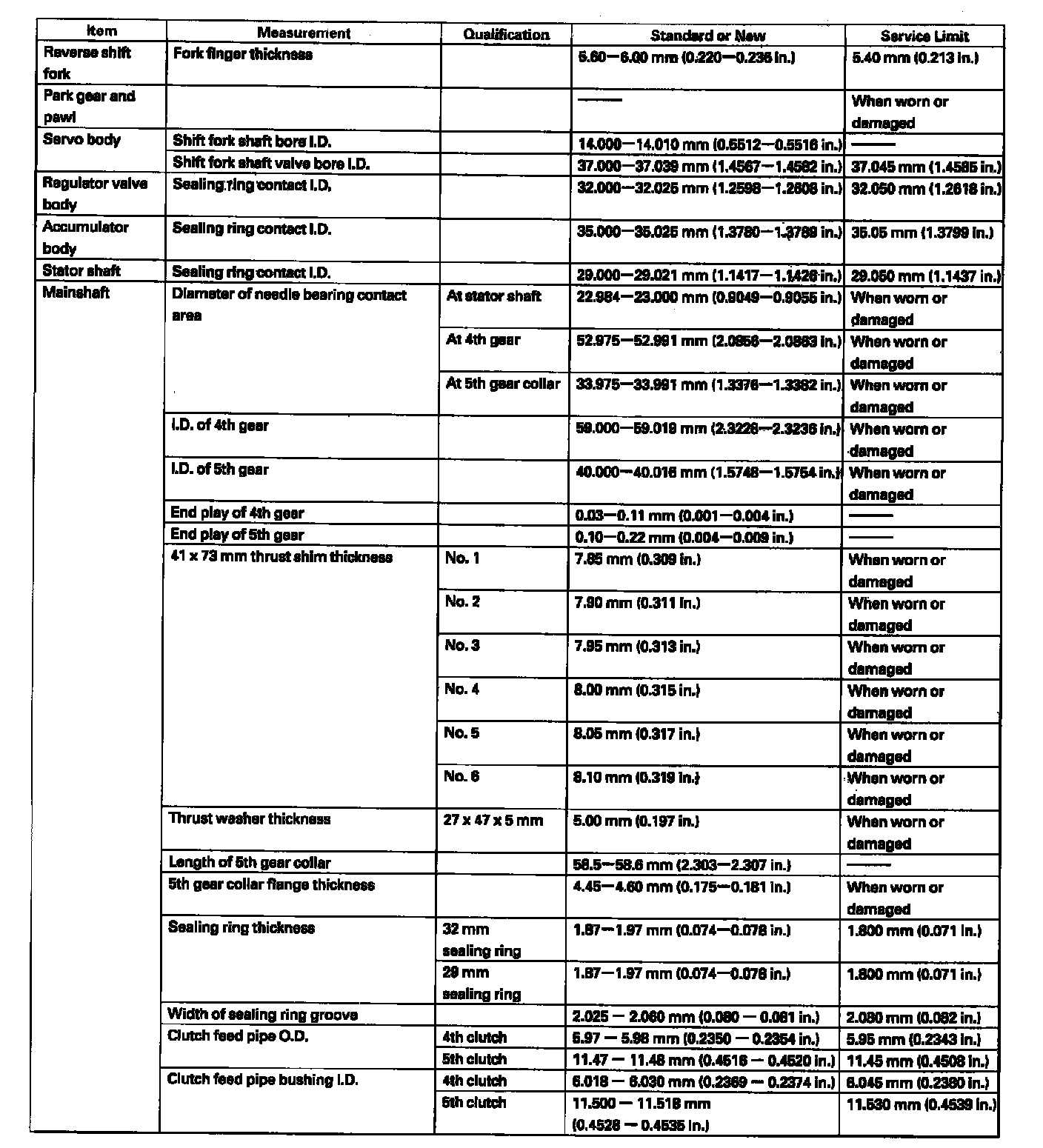

Automatic Transmission And A/T Differential:

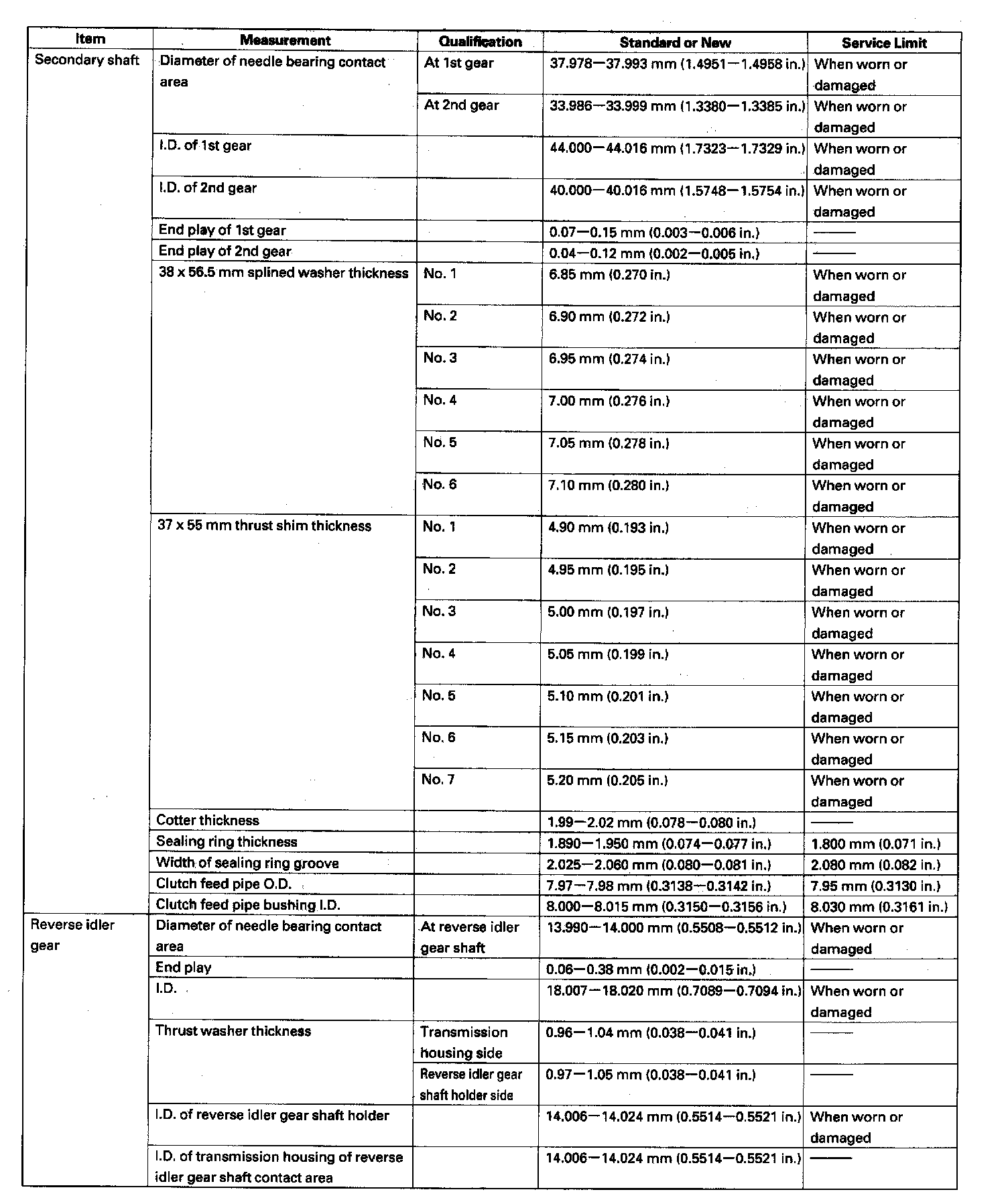

Automatic Transmission and A/T Differential:

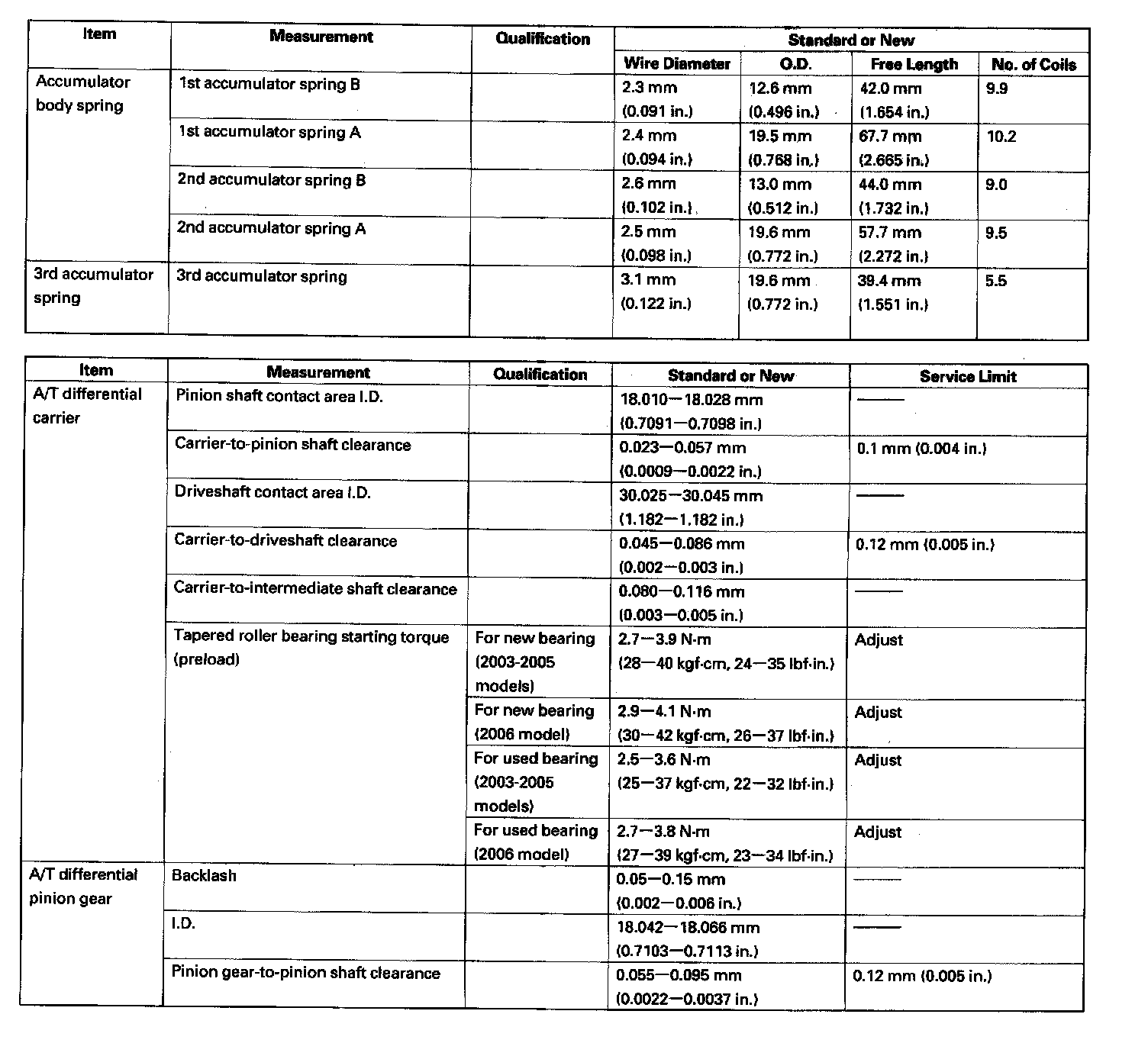

Automatic Transmission and A/T Differential:



Automatic Transmission and A/T Differential:



Automatic Transmission And A/T Differential:



Automatic Transmission and A/T Differential:
