Transmission Installation
Transmission InstallationSpecial Tools Required
^ Engine support hanger, A and Reds AAR-T-12566 (Available through the Honda Tool and Equipment Program 888-424-6857) Engine hanger balance bar VSB02C000019
^ Front subframe adapter VSB02C000016
1. Check that the two dowel pins are installed in the clutch housing.

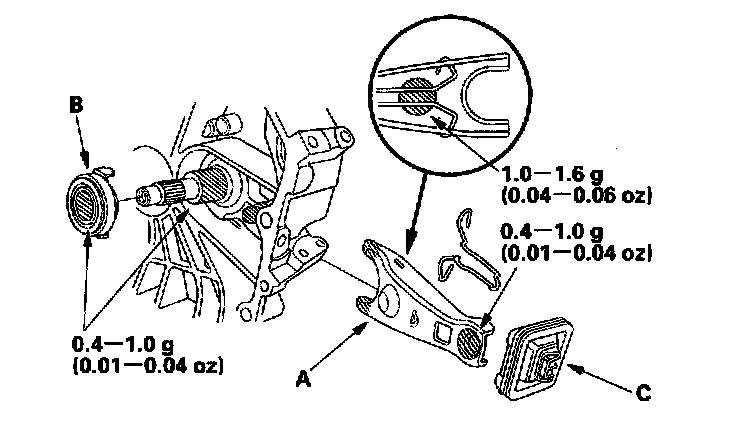

2. Apply super high temp urea grease (P/N 08798-9002) to the release fork (A) and the release bearing (B). Install the release fork, the release bearing, and the boot (C).

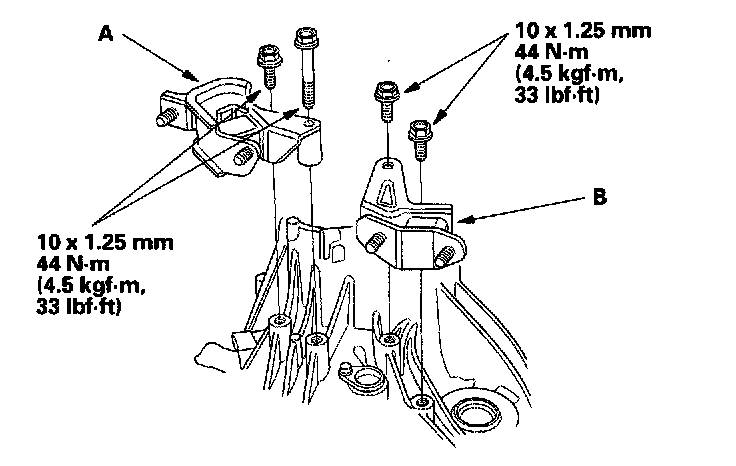

3. Install the transmission front lower mount (A) and the transmission rear lower mount (B).
4. Place the transmission on the transmission jack, and raise it to the engine level.
5. Install the transmission lower mounting bolts.
6. Install the clutch cover.

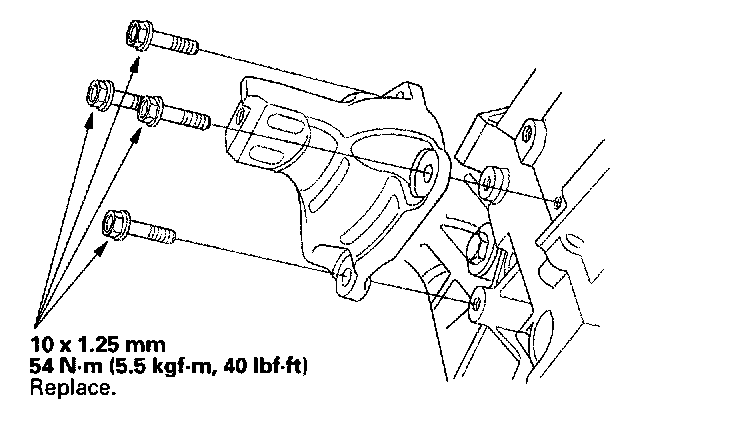

7. Install the front engine mount upper bracket.
8. Support the subframe with the subframe adapter and a jack.

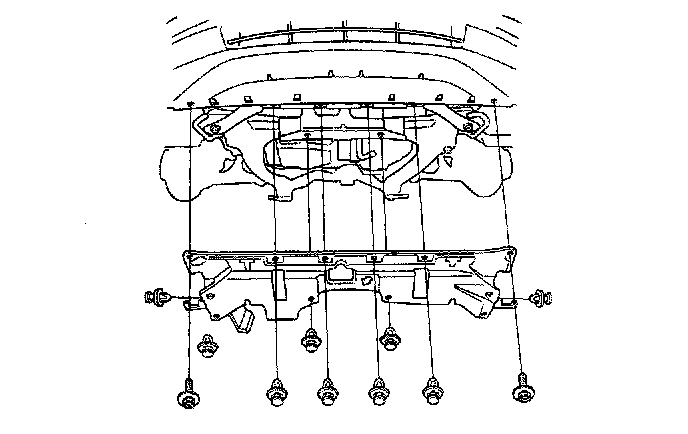

9. Install the front suspension subframe (A) and front suspension subframe stays (B).

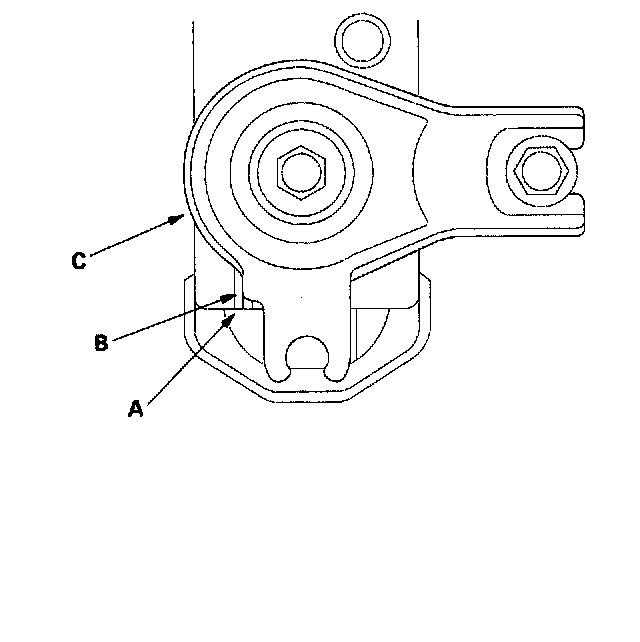

10. Align the reference marks (A) with edge (B) of both rear stiffer (C), and tighten the rear subframe mounting bolts, then front bolts, and tighten the stiffener bolts to the specified torque.

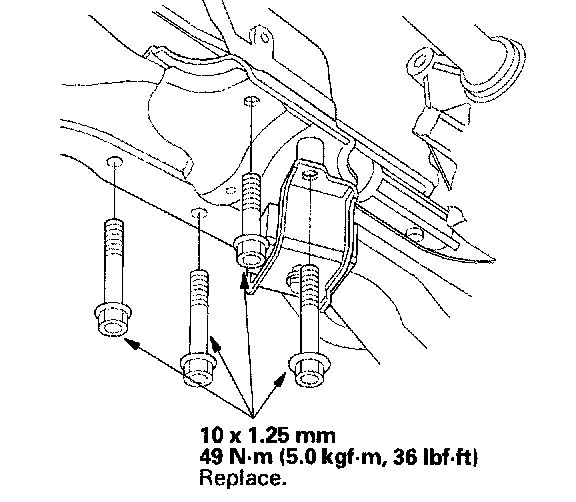

11. Install the middle subframe mounting bolts.

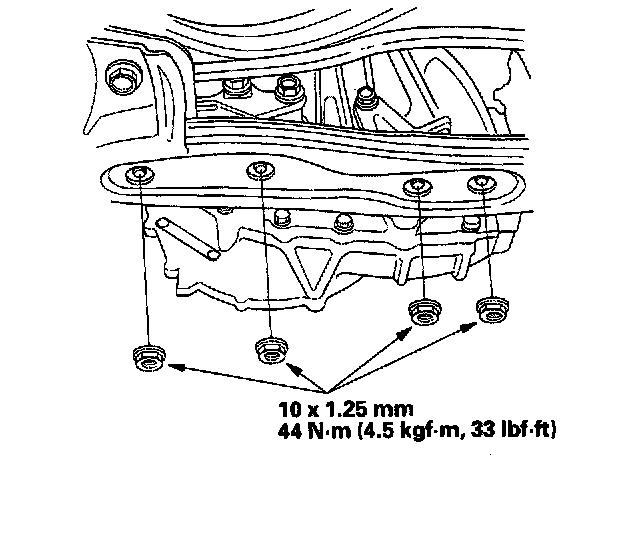

12. Install the transmission lower mount mounting nuts. mounting bolts, then front Dolts, and tighten the stiffener bolts to the specified torque.

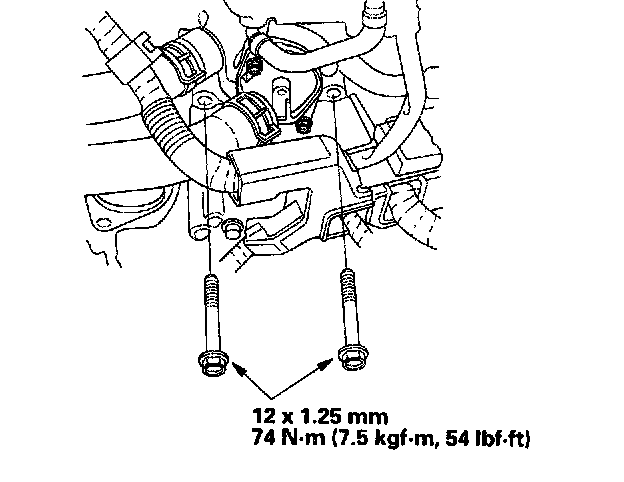

13. Install the engine lower rear mount mounting bolts.
14. Install the intermediate shaft.
15. Install the inboard joints left and right driveshaft.
16. Install the knuckle onto the lower arm.
17. Install the damper fork.
18. Install the exhaust pipe A, mount (B) and new gasket (C).
19. Connect the power steering pressure switch connector.
20. Connect the return line to the power steering fluid reservoir.
21. Install the tie-rod ball joint.
22. Install the splash shield.
23. Refill the transmission with fluid.
24. Install the front wheels, and set them in the straight ahead position.
25. Lower the vehicle.
26. Unlock the steering wheel.

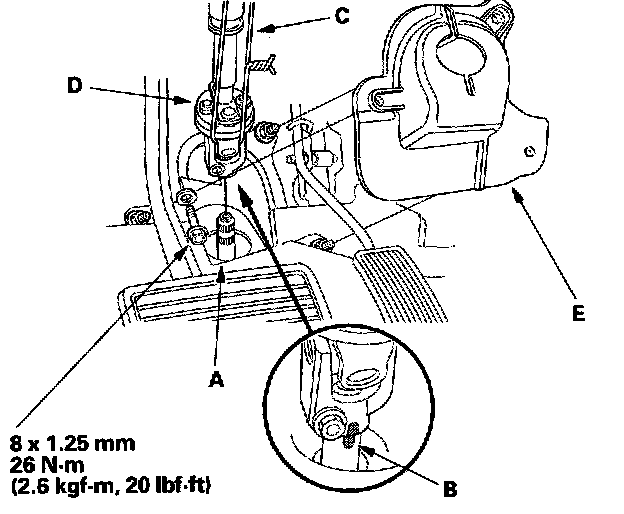

27. Connect the steering joint to the steering gearbox pinion shaft (A) by aligning the reference mark (B), and remove the wire (C) from the joint yoke (D).
28. Install the steering joint cover (E).
29. Install the transmission mount bracket (A) and ground cable (B).
30. Remove the engine hanger and special tool from the engine.

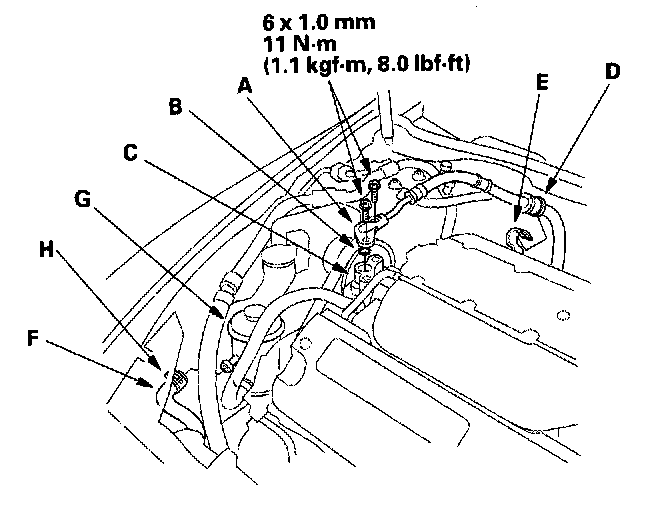

31. Install the power steering pump outlet line (A) with a new O-ring (B) to the pump (C), and install the hose (D) in its clamp (E).
32. Connect the return the hose (F) to the power steering fluid reservoir (G), then secure the hose with its clamp (H).
33. Install the transmission upper mounting bolts.
34. Install the rear mount stop.

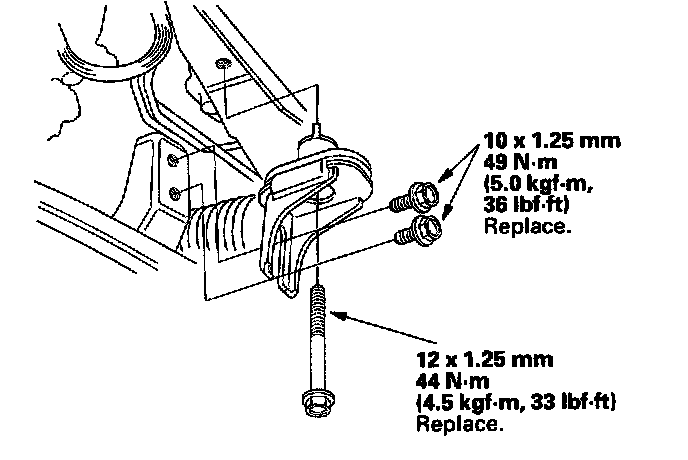

35. Install the engine front mount mounting bolt (A) and the front mount stop (B).

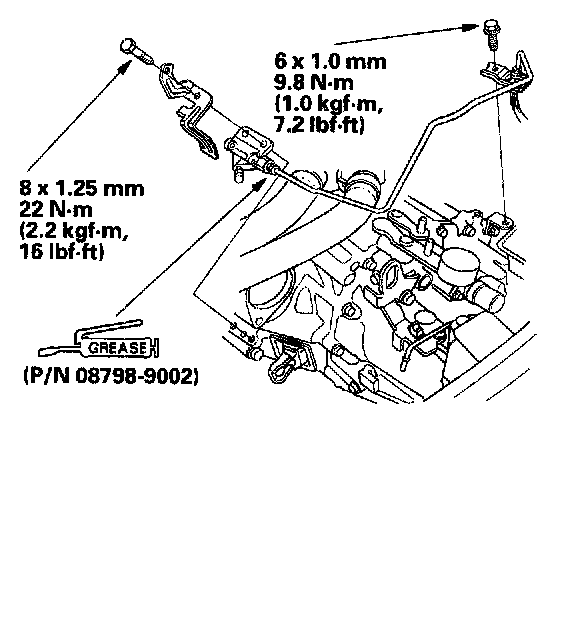

36. Apply super high tamp urea grease (P/N 08798-9002) to the end of the cylinder rod. Install the slave cylinder. Take care not to bend the clutch line.
37. Install the cable bracket (A) and cables (B).
38. Apply a light coat of super high temp urea grease (P/N 08798-9002) to the cable ends, and install new cotter pins (C).

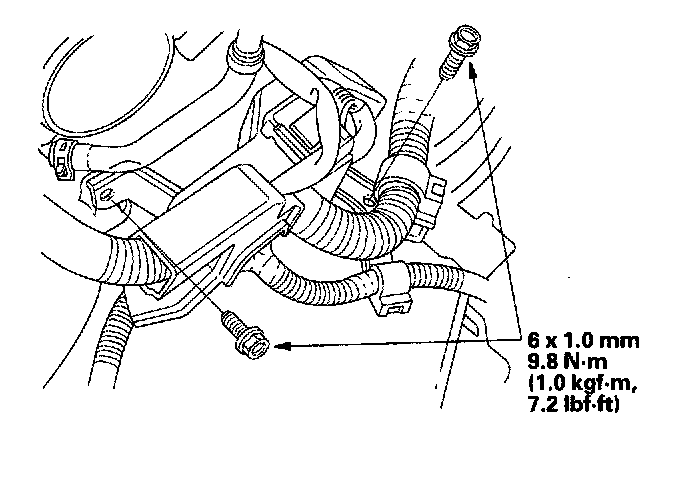

39. Install the harness bracket.
40. Install the starter motor (A), then connect the starter cable (B).
41. Install the harness clips.

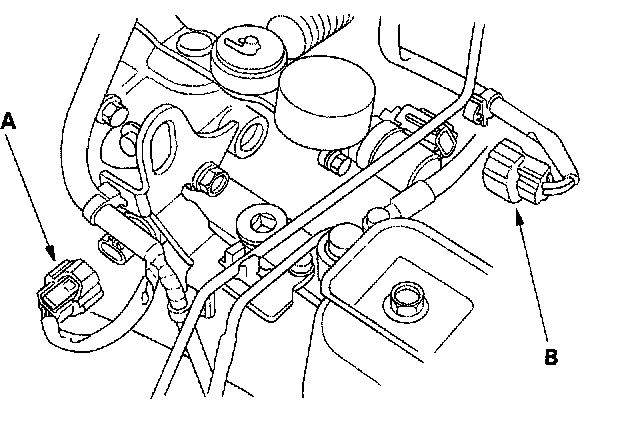

42. Connect the output shaft (countershaft) speed sensor connector (A) and input shaft (mainshaft) speed sensor connector (B).
43. Connect the back-up light switch connector (A) and reverse lockout solenoid connector (B):
44. Install the air cleaner housing.
45. Install the battery base.
46. Reinstall the support strut bracket with the bolts to the proper locations on both sides of the hood.
47. Remove the steering wheel.
48. Center the cable reel by first rotating it clockwise until it stops. Then rotate it counterclockwise (about three full turns) until the arrow mark on the label points straight up.
49. Reinstall the steering wheel.
50. Fill the power steering fluid reservoir with fluid to the upper level line.
51. Install the battery. Connect the positive (+) cable first, then the negative (-) cable to the battery.
52. Stan the engine, and run it at fast idle, then turn the steering wheel from lock-to-lock several times to bleed air from the system.
53. Recheck the fluid level, and refill if necessary.
54. Check the front wheel alignment.
55. Check the steering wheel spoke angle. If the steering spoke angles to the right and left are not equal (steering wheel and rack are not centered), correct the engagement of the joint pinion shaft serrations, then adjust the front toe by turning the tie-rod ends if necessary. If you need to correct the engagement of the joint/pinion shaft, repeat steps 52 thru 54.
56. Test-drive the vehicle.
57. Check the clutch operation.
58. Enter the anti-theft code for the radio and navigation system, then enter the customer's radio station presets.
59. Perform the power window control unit reset procedure.
