Rear Wire Harness (Left branch)
Rear Wire Harness (Left branch)
Harness Location View:

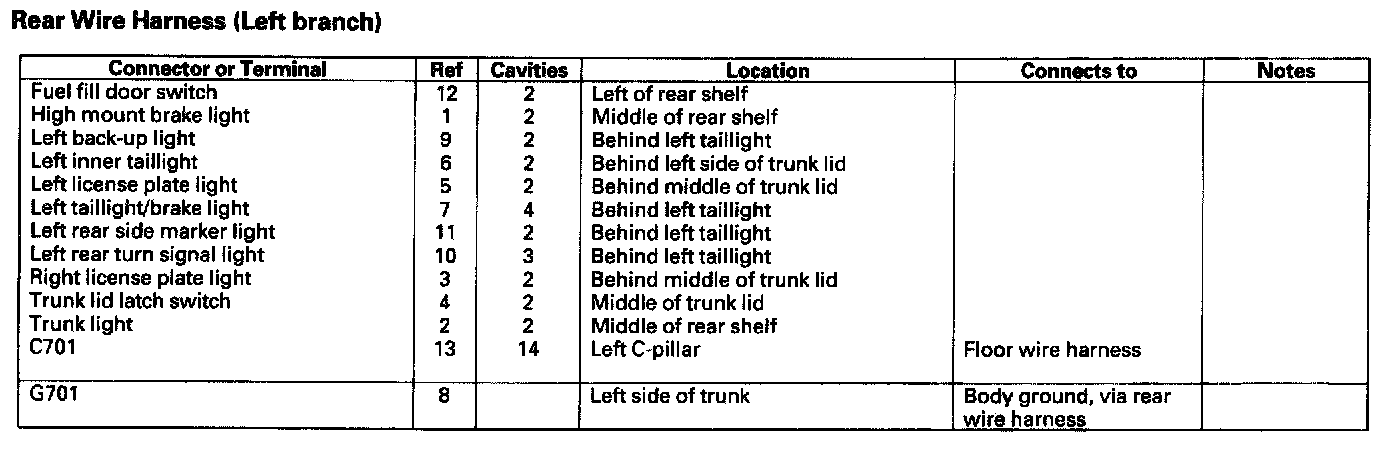

Rear Wire Harness(Left branch):
