Ignition System: Locations

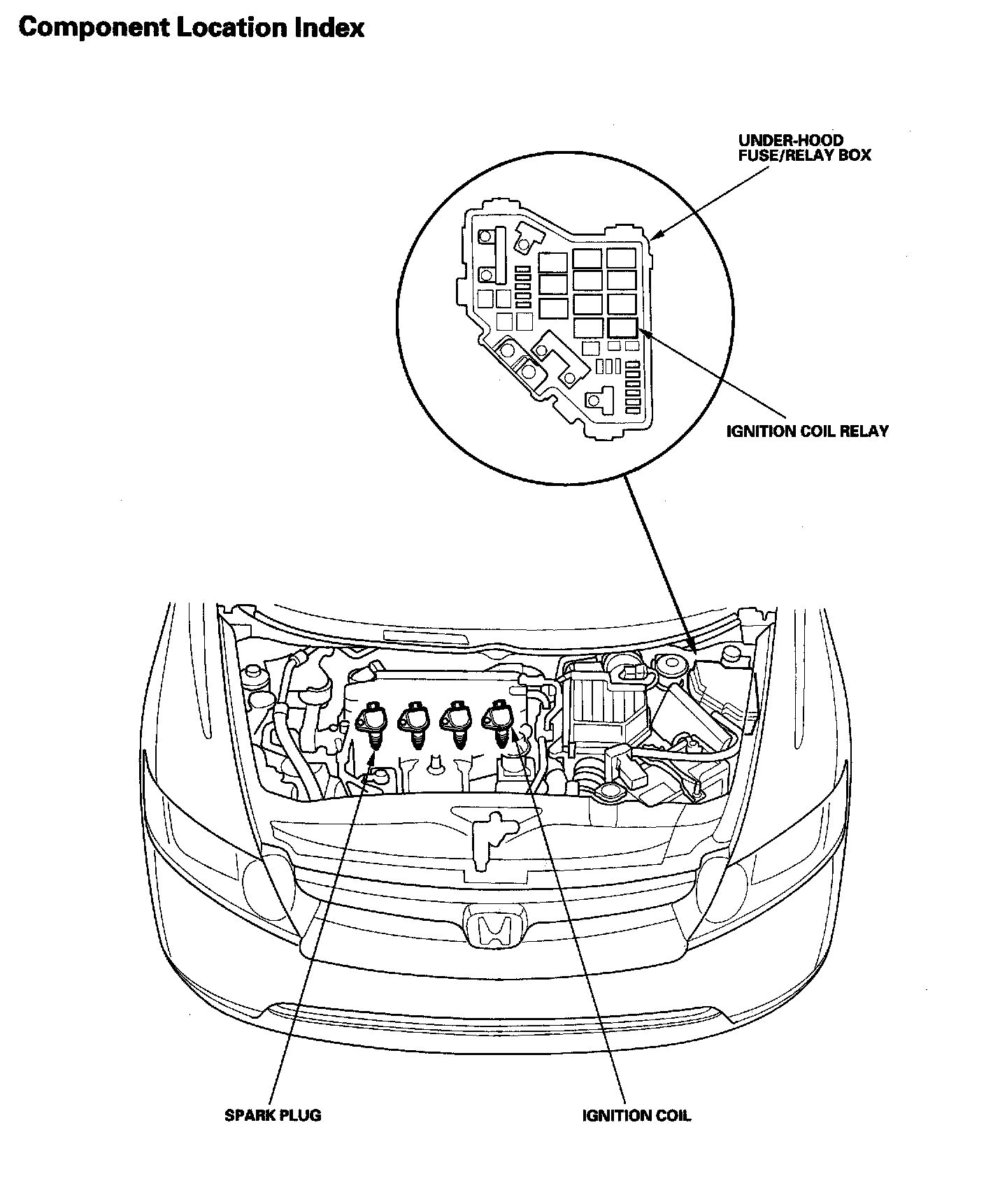

Ignition System - Component Location Index:
Dashboard - Component Location Index Part 1:

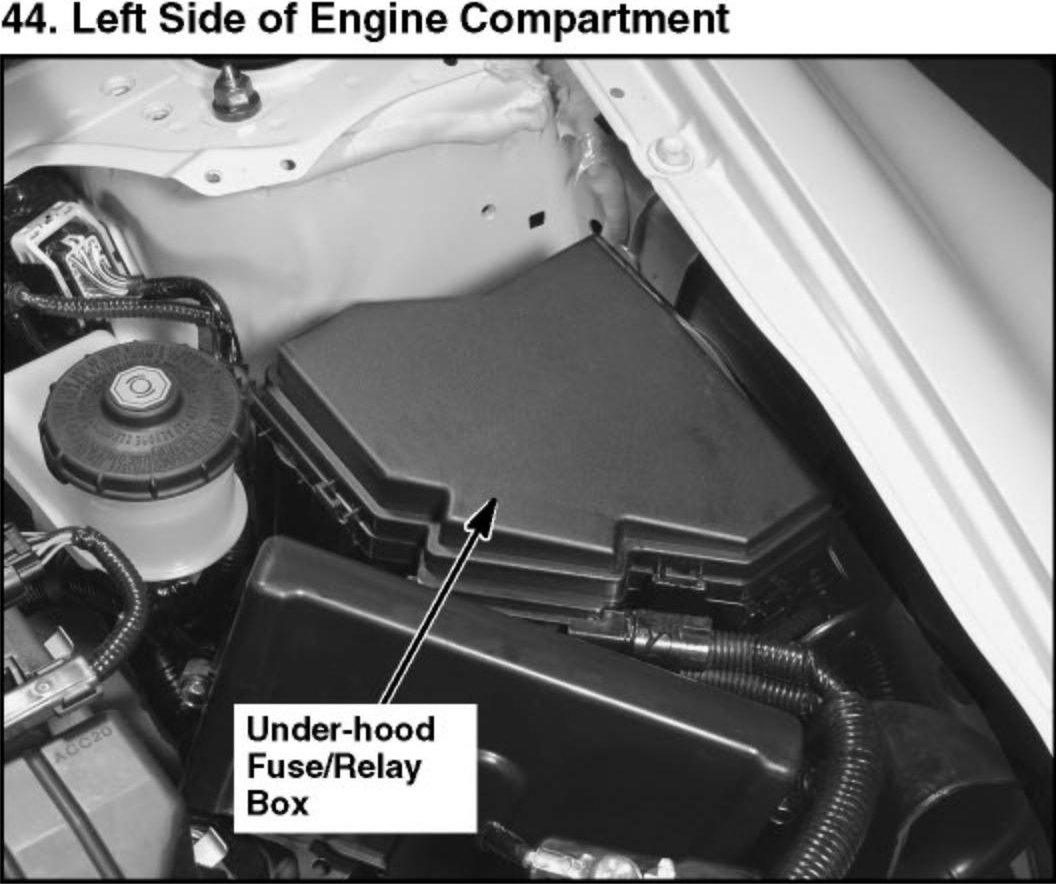

44. Left Side of Engine Compartment:
69. Under Left Side of Dash:
