P0718
DTC P0718: Input Shaft (Mainshaft) Speed Sensor Intermittent FailureNOTE:
^ Before you troubleshoot, record all freeze data and any on-board snapshot, and review General Troubleshooting Information.
^ This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
1. Clear the DTC with the HDS.
2. Test-drive the vehicle for several minutes in the D position through all five gears.
3. Monitor the OBD status for P0718 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.
Does the result indicate FAILED?
YES - Go to step 4.
NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the input shaft (mainshaft) speed sensor and the PCM. If the HDS indicates NOT COMPLETED, return to step 2 and recheck.
4. Turn the ignition switch OFF.
5. Disconnect the input shaft (mainshaft) speed sensor connector, and inspect the connector and connector terminals to be sure they are making good contact.
Are the connector terminals OK?
YES - Go to step 6.
NO - Repair the connector terminals, then go to step 6.
6. Connect the input shaft (mainshaft) speed sensor connector.
7. Test-drive the vehicle for several minutes in the D position through all five gears.
8. Monitor the OBD status for P0718 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.
Does the result indicate FAILED?
YES - Go to step 9.
NO - Troubleshooting is complete. If the HDS indicates NOT COMPLETED, return to step 7 and recheck.
9. Turn the ignition switch OFF.
10. Jump the SCS line with the HDS.
11. Disconnect PCM connector C (44P).
12. Check for continuity between PCM connector terminal C40 and body ground, and between terminal C44 and body ground.
Is there continuity?
YES - Go to step 13.
NO - Repair open in the wires between PCM connector terminals C40, C44, and ground (G101), or repair poor ground (G101), then go to step 30.
13. Connect PCM connector C (44P).
14. Disconnect the input shaft (mainshaft) speed sensor connector.
15. Turn the ignition switch ON (II).

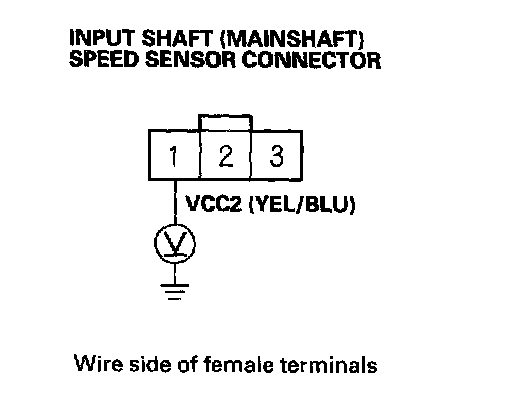

16. Measure voltage between input shaft (mainshaft) speed sensor connector terminal No. 1 and body ground.
Is there about 5 V?
YES - Go to step 17.
NO - Go to step 26.
17. Turn the ignition switch OFF.
18. Disconnect PCM connector B (44P).

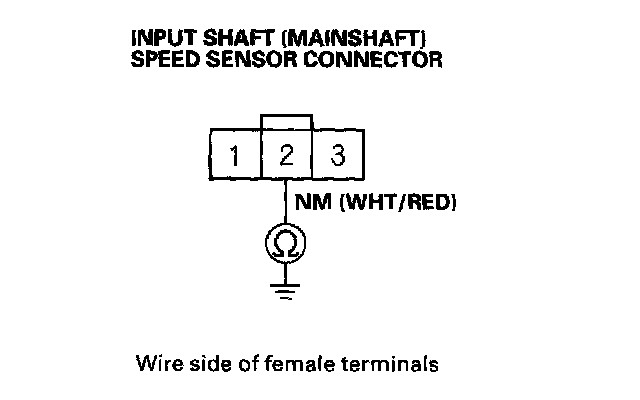

19. Check for continuity between input shaft (mainshaft) speed sensor connector terminal No. 2 and body ground.
Is there continuity?
YES - Repair short to ground in the wire between PCM connector terminal B17 and the input shaft (mainshaft) speed sensor connector, then go to step 30.
NO - Go to step 20.
20. Connect PCM connector B (44P).
21. Turn the ignition switch ON (II).

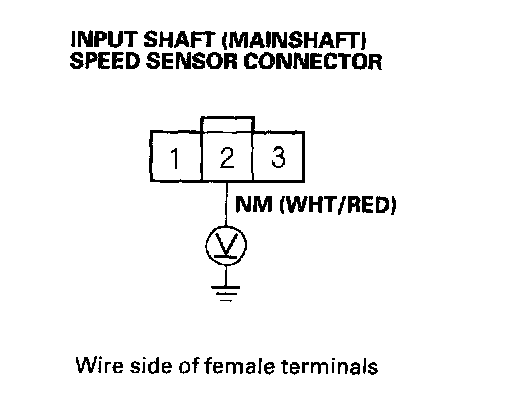

22. Measure voltage between input shaft (mainshaft) speed sensor connector terminal No. 2 and body ground.
Is there about 5 V?
YES - Replace the input shaft (mainshaft) speed sensor, then go to step 30.
NO - Go to step 23.
23. Turn the ignition switch OFF.
24. Disconnect PCM connector B (44P).

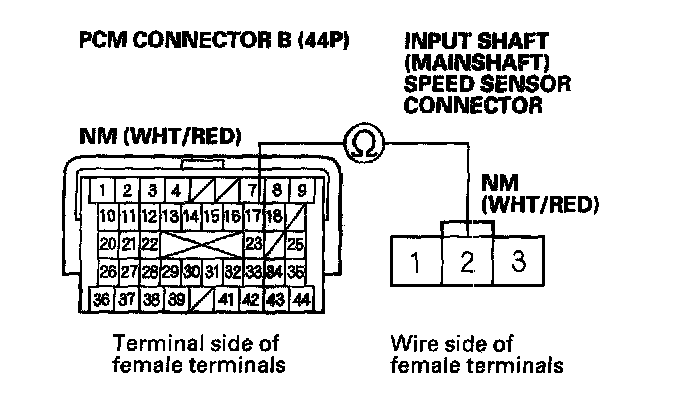

25. Check for continuity between PCM connector terminal B17 and input shaft (mainshaft) speed sensor connector terminal No. 2.
Is there continuity?
YES - Update the PCM if it does not have the latest software, or substitute a known-good PCM, then recheck for DTC P0718. If the symptom/indication goes away with a known-good PCM, replace the original PCM, then go to step 30.
NO - Repair open in the wire between PCM connector terminal B 17 and the input shaft (mainshaft) speed sensor, then go to step 30.
26. Turn the ignition switch OFF.
27. Disconnect PCM connector B (44P).

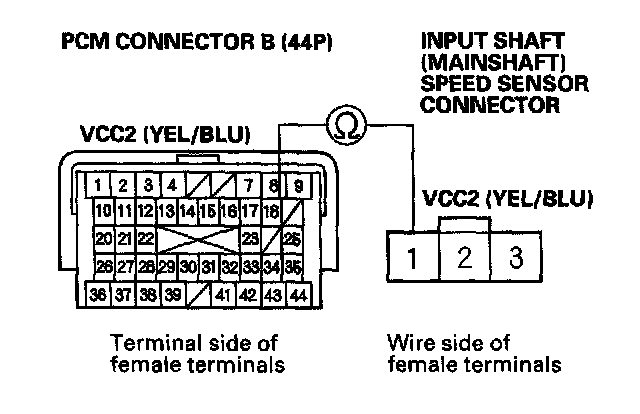

28. Check for continuity between PCM connector terminal B18 and input shaft (mainshaft) speed sensor connector terminal No. 1.
Is there continuity?
YES - Go to step 29.
NO - Repair open in the wire between PCM connector terminal B18 and the input shaft (mainshaft) speed sensor, then go to step 30.

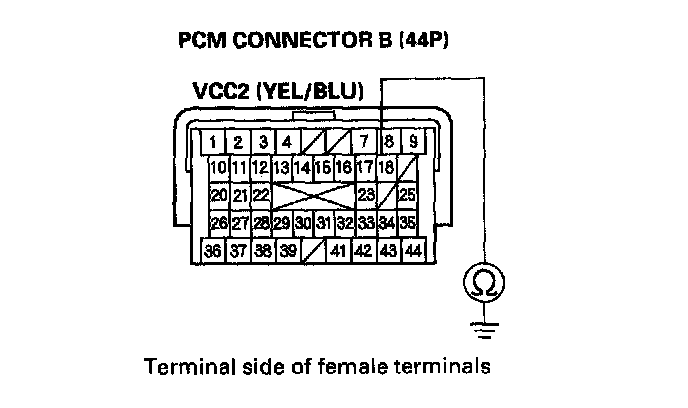

29. Check for continuity between PCM connector terminal 818 and body ground.
Is there continuity?
YES - Repair short to ground in the wire between PCM connector terminal B18 and the input shaft (mainshaft) speed sensor, then go to step 30.
NO - Check for loose or poor connections at PCM connector terminal B18. If the connection is OK, update the PCM if it does not have the latest software, or substitute a known-good PCM, then recheck for DTC P0718. If the symptom/indication goes away with a known-good PCM, replace the original PCM, then go to step 30.
30. Clear the DTC with the HDS.
31. Test-drive the vehicle for several minutes in the D position through all five gears.
32. Monitor the OBD status for P0718 in the DTCs/Freeze Data in A/T Made Menu for a pass/fail.
Does the result indicate PASSED?
YES - Troubleshooting is complete.
NO - If the PCM was updated and the screen indicates FAILED, substitute a known-good PCM, then return to step 30. If the PCM was substituted and the screen indicates FAILED, return to step 1 and recheck. If the screen indicates NOT COMPLETED, return to step 31.
