Evaporative Shut Valve
Evaporative Shut Valve

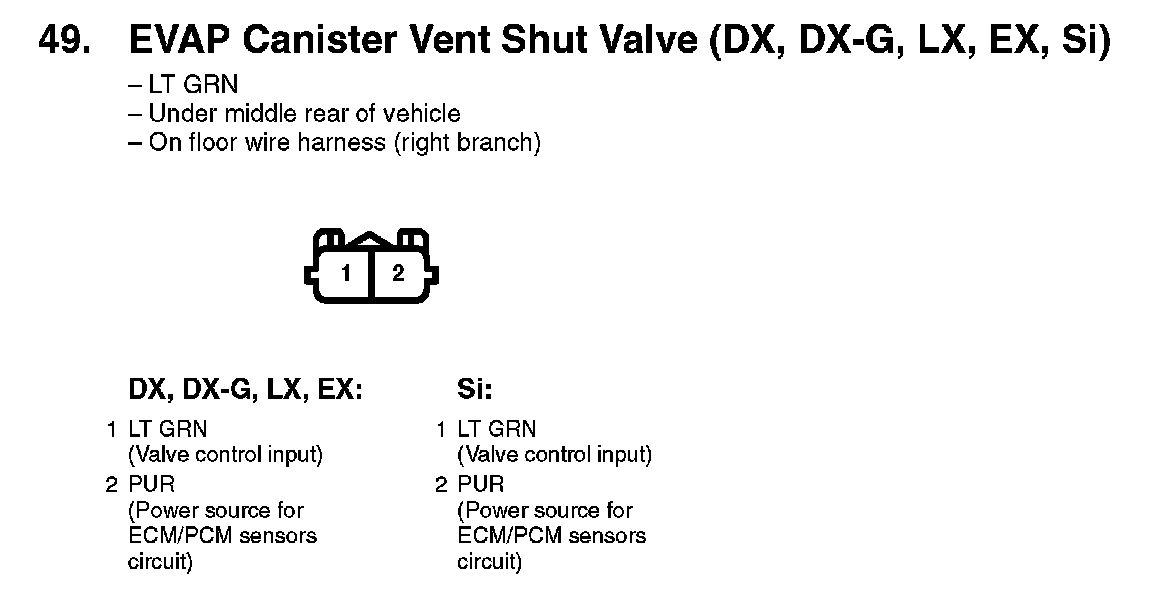

49. EVAP Canister Vent Shut Valve (DX, DX-G, LX, EX, Si):
