Oxygen Sensor
Oxygen Sensor

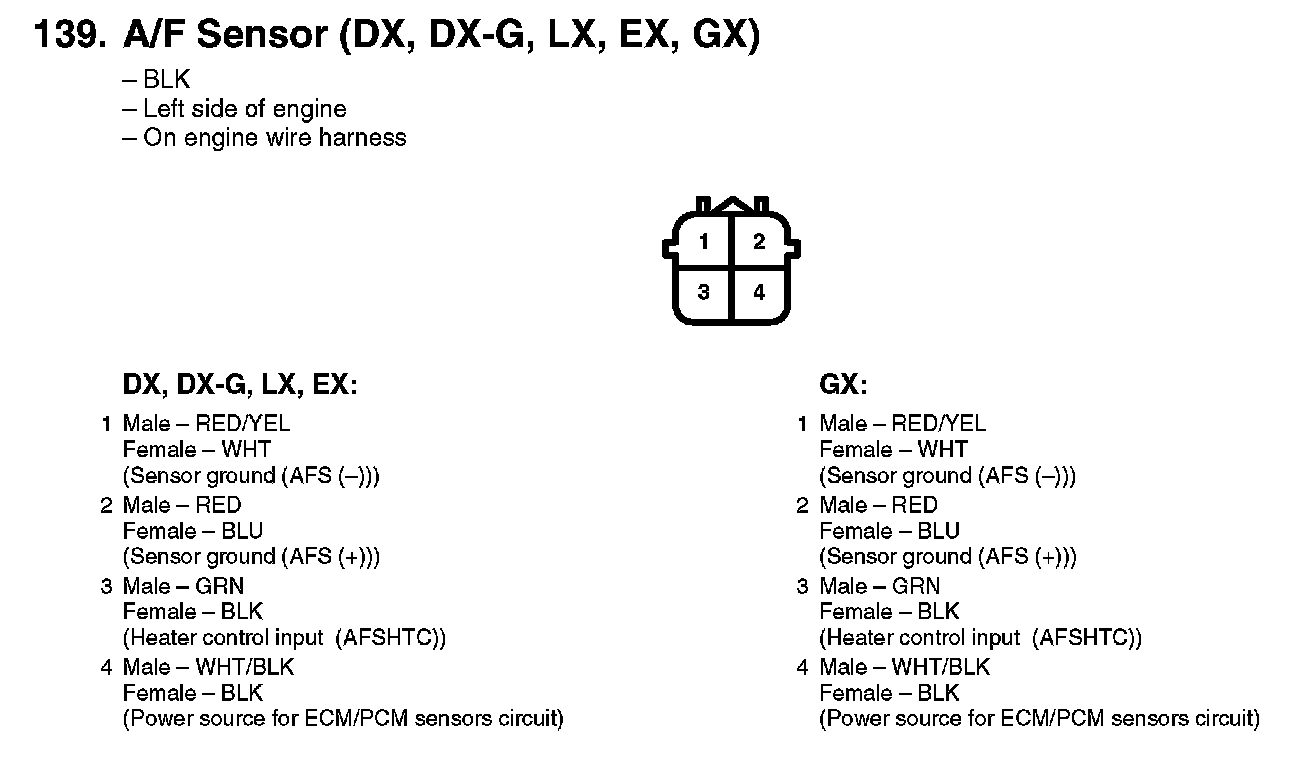

139. A/F Sensor (DX, DX-G, LX, EX, GX):

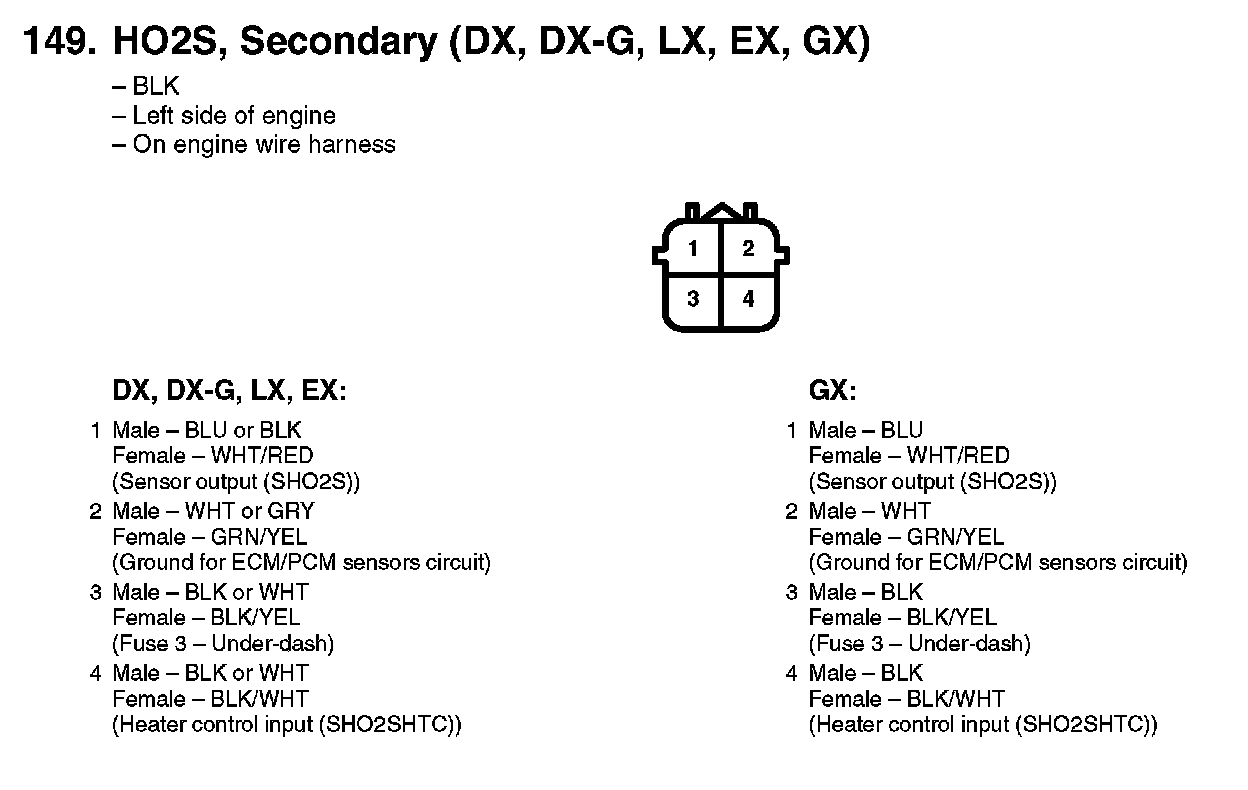

149. HO2S, Secondary (DX, DX-G, LX, EX, GX):
