Knock Sensor Sub-harness (M/T: DX, DX-G, LX, EX)
Knock Sensor Sub-harness (M/T: DX, DX-G, LX, EX)

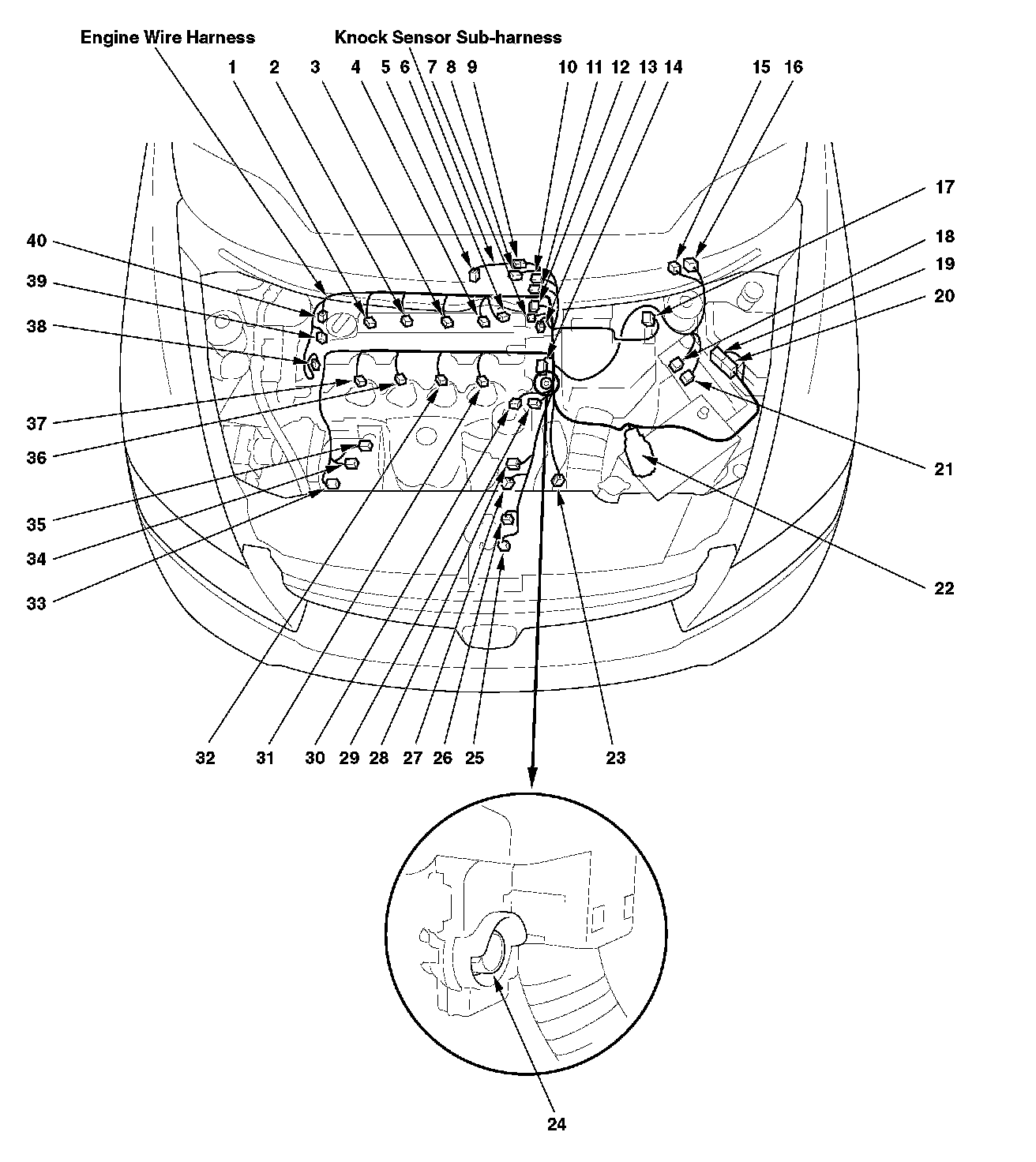

Harness Location View:

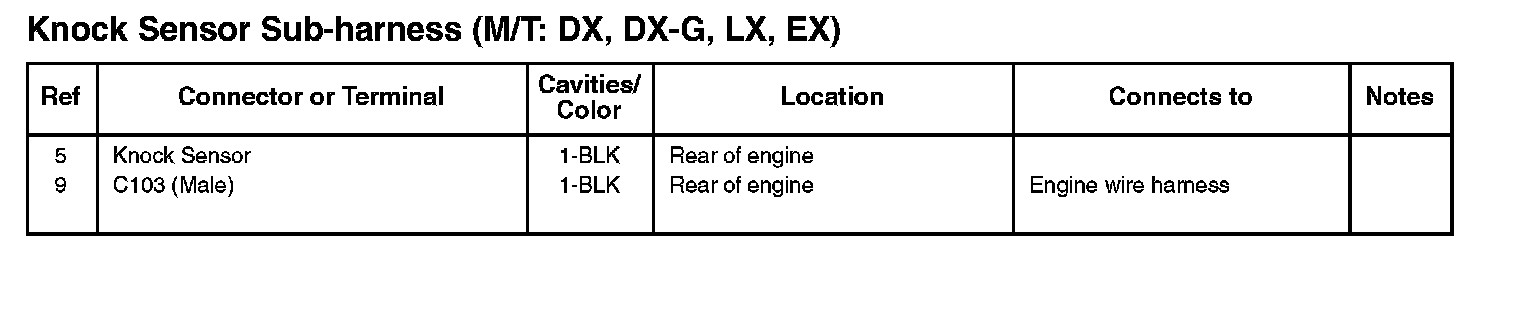

Knock Sensor Sub-harness (M/T: DX, DX-G, LX, EX):
