Heating
Heating
System Description

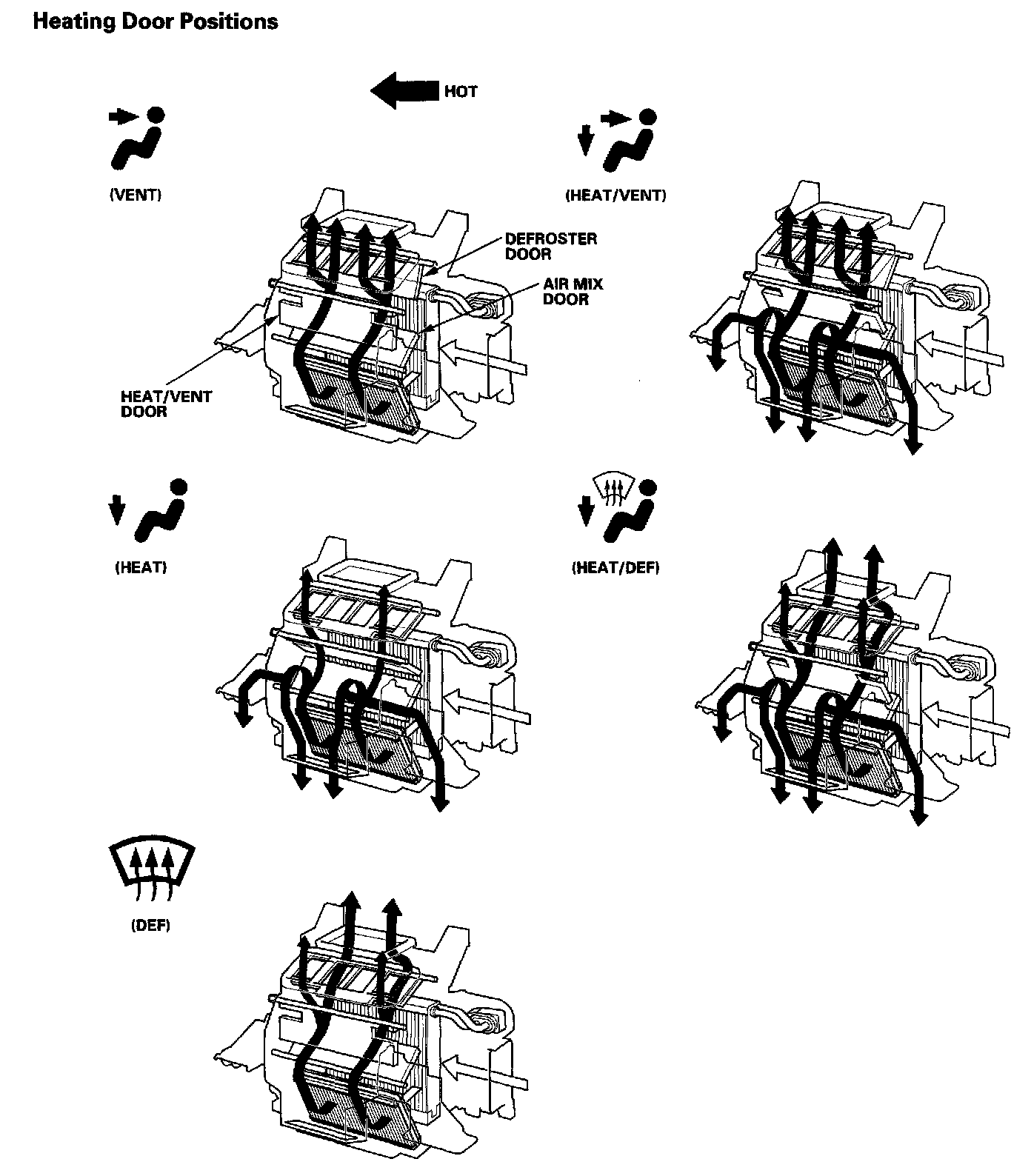

Heating Door Positions

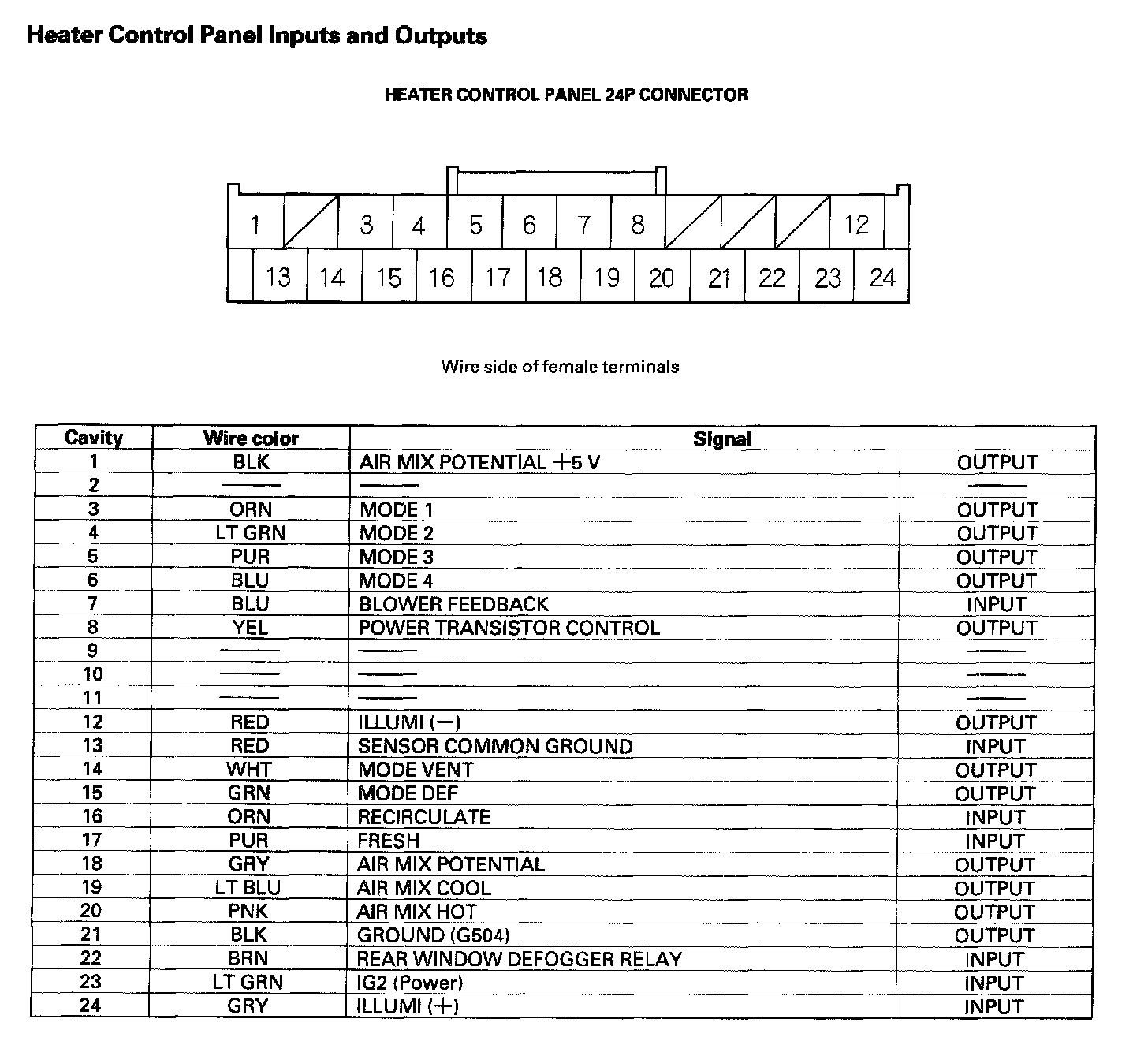

Heater Control Panel Inputs and Outputs:
Heater Control Panel Inputs and Outputs
